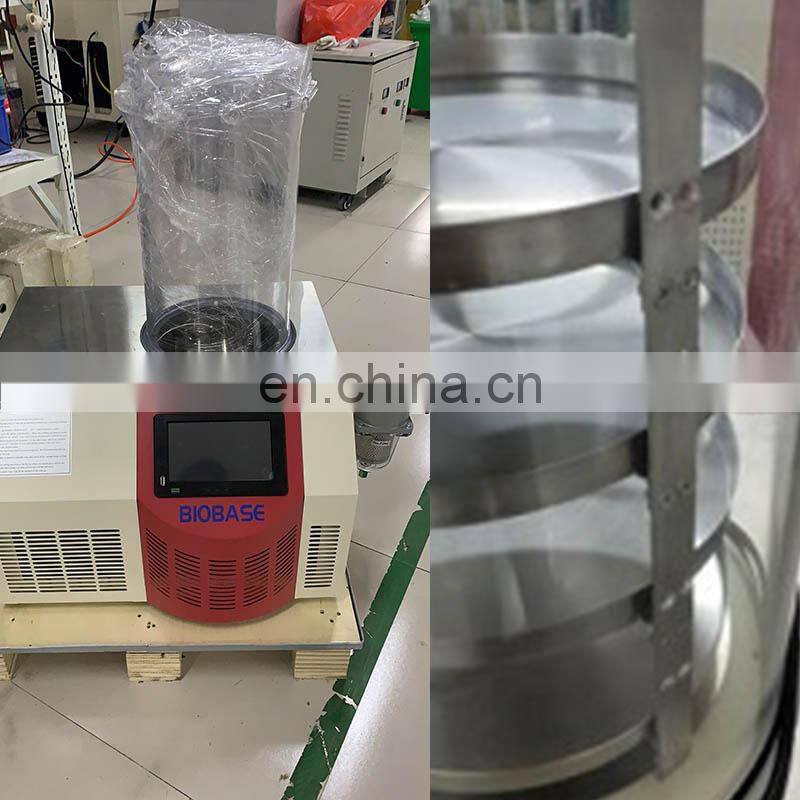

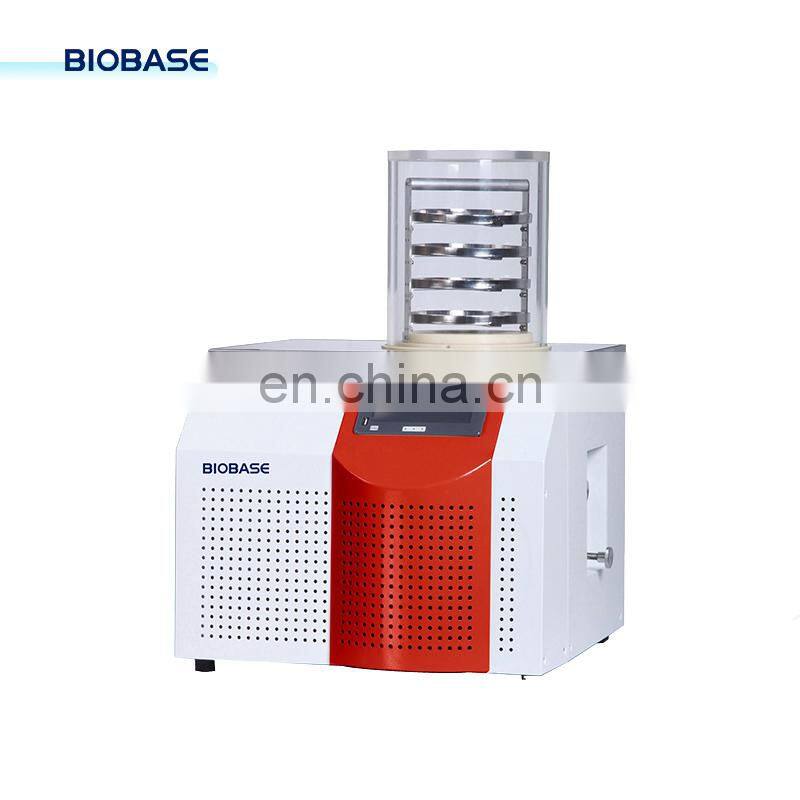

BIOBASE Table Top Freeze Dryer BK-FD10S Freeze Dryer Machine Home for Laboratory or Hospital
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
BIOBASE Table Top Freeze Dryer BK-FD10T Freeze Dryer Machine Lyophilizer in Philippines for Laboratory or Hospital
-
BIOBASE Pilot Freeze Dryer BK-FD30S Adopt Dafety Diaphragm Value Freeze Dryer for Laboratory or Hospital
-
BIOBASE Pilot Freeze Dryer BK-FD20T(Stoppering) Vacuum Freeze Dryer Machine for Laboratory or Hospital
-
BIOBASE Lab Deep Freezer Vertical 80 Degree Stainless Steel Freezer Fridge for Laboratory or Hospital
-
BIOBASE -60 Degree Freezer BDF-60H458 Single Door Freezer for Laboratory or Hospital
-
BIOBASE Freezer With Glass Door BDF-60H118A Freezer Multiple-protection Function for Laboratory or Hospital
Product Description
Product Description
Application:
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples. Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.




Feature:
1.LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
Specification
Model | BK-FD10S | BK-FD10P | BK-FD10T | BK-FD10PT | |||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |||||
Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||||||
Tray | 4 pcs | 3 pcs | |||||||
Height Between Trays | 50mm | 68mm | |||||||
Cold Trap Temperature | ≤-60℃ | ||||||||
Cold Trap Capacity | 9.5L | ||||||||
Cold Trap Size (Diameter*H) | Φ215*260mm | ||||||||
Vacuum Degree | <10 Pa | ||||||||
Water Capture Capacity | 3kg/24h | ||||||||
Tray Size (D*H) | Φ200*20mm | Φ180*20mm | |||||||
Freeze Drying Time | 24h | ||||||||
Loading Capacity/Shelf (Liquid) | 0.3L | ||||||||
Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||||||
Drying Chamber Size (Diameter*H) | Φ260*310mm | Φ260*450mm | |||||||
Total Qty. Of Vial Φ22 | 260 | 195 | |||||||
Total Qty. Of Vial Φ16 | 480 | 360 | |||||||
Total Qty. Of Vial Φ12 | 920 | 690 | |||||||
Refrigerant | R600a+R290+R23 | ||||||||
Cooling System | Air cooling | ||||||||
Power Supply | 220V/50Hz,60Hz (single phase) 110V/60Hz (single phase) | ||||||||
Power Consumption | 1.3KW | ||||||||
Power Supply | AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase) | ||||||||
Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models) Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT) | ||||||||
Optional Function & Accessory | Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT) Import vacuum pump | ||||||||
External Size (W*D*H) | 640*610*550/810mm | 640*610*550/950mm | 640*610*550/990mm | ||||||
Package Size(W*D*H)mm/ Gross Weight | Main Body | 720*705*730(85kg) | |||||||
Drying Chamber /Vacuum Pump | 705*590*530 (50kg) | 705*590*530 (55kg) | 705*590*530 (60kg) | 720*705*730 (65kg) | |||||
