GPS container lock tracker JT705 lock unlock by QR code on site and SMS software APP remotely

GPS container lock tracker JT705A lock unlock by ble QR code on site and SMS software APP remotely

Focus on: overall anti-theft+ environment monitoring

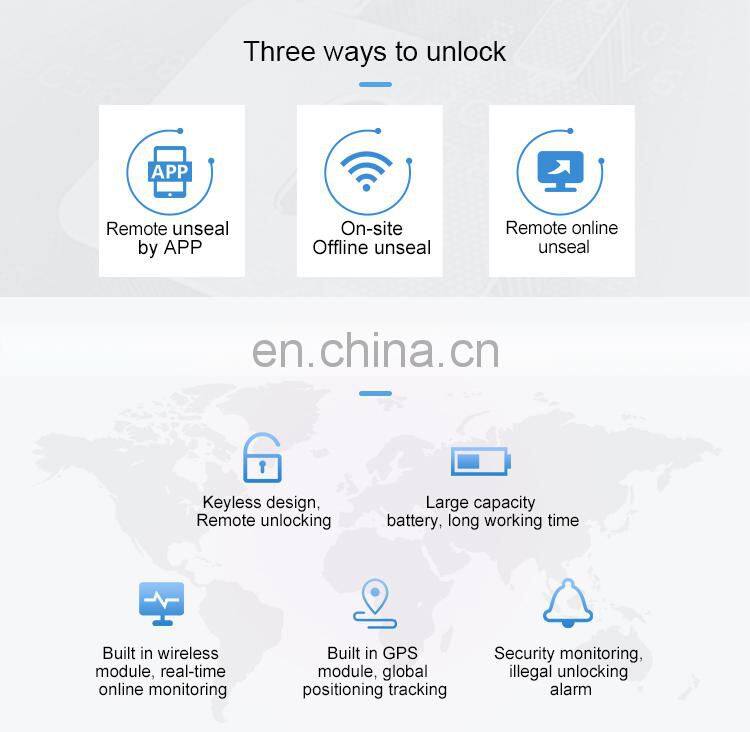

Unseal option: unseal by system &APP/ by Ble

Password choice: fixed password /dynamic password

The user can set fixed password to open for administrator, a

While the dynamic password can be generated immediately and sent to the server. The one authorized can get password by phone when the vehicle arrives.

Under special condition(eg, no signal in underground garage) JT705 device can be unlocked with authorized Ble to scan QR code.

Attitude monitoring: By analyzing speed &vibration information, monitoring illegal door-removal and door status can be achieved.

Illegal alarm:

illegal door alarm

illegal door-removal alarm

abnormal environment temperature alarm

cargo absence alarm

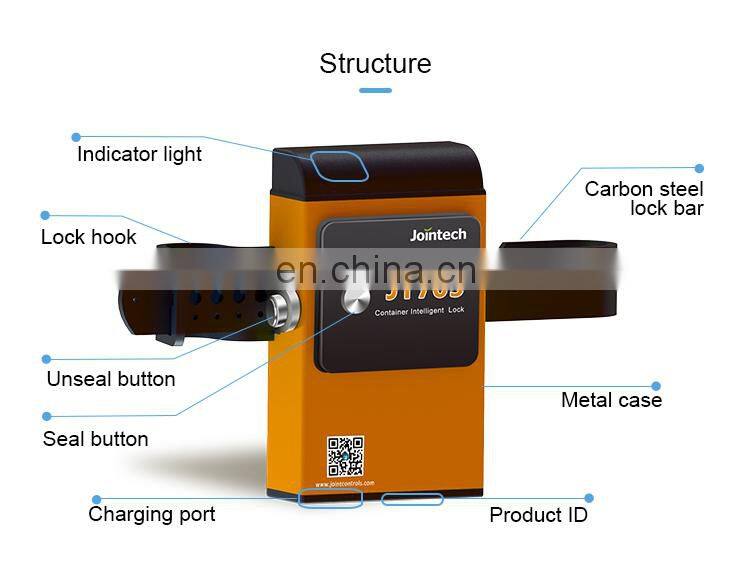

Main features:

1. enhanced lock ( hard to break)

2. door-lock attitude detecting (when the door removed, the alarm will be triggered.)

    Illegal door-removal detecting can effectively control problems of door-removal and theft.

3. Support intelligent sensors,.

(eg: coupled with Intelligent sensor, it can monitor cargo absence/ temp&humidity /light sensation monitoring

Specification:

Dimension:  223 x 130 x 53mm

Length of latch:  450mm

Weight:    4KG

Material:  Lock case: Aluminum   Latch: Carbon Steel

Working temperature: -20℃ - + 70℃

Storage temperature: -40℃ - + 85℃

Relative Humidity:  5% ~ 99%

Charging Voltage:  5V

Working Current: Average working current <120mA  Average standby current <4mA

Battery capacity:  20000mAh

Protection Grade:  IP67

SIM Slot:  Micro SIM card

GPS/GSM antenna:  Built-in

Ble Module:  MHz: 2.402GHz ~ 2.480GHz
