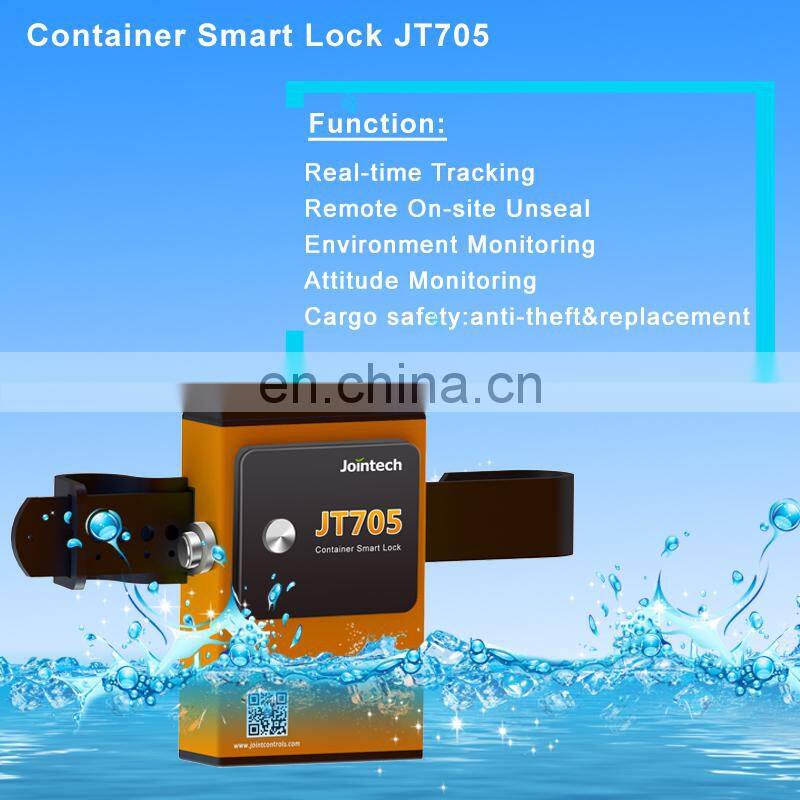

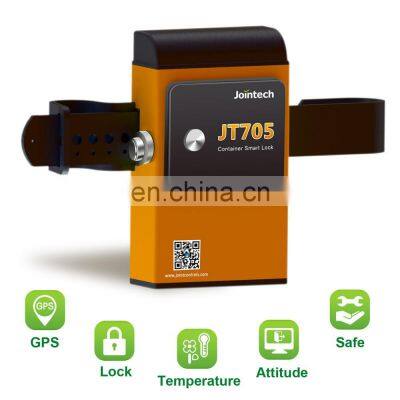

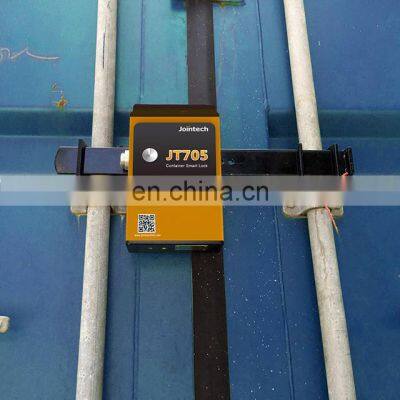

Container real time tracking and door Lock unlock control with live alarm container smart 4G gps gsm electronic padlock

Container real time tracking and door Lock unlock control with live alarm container smart 4G gps gsm electronic padlock

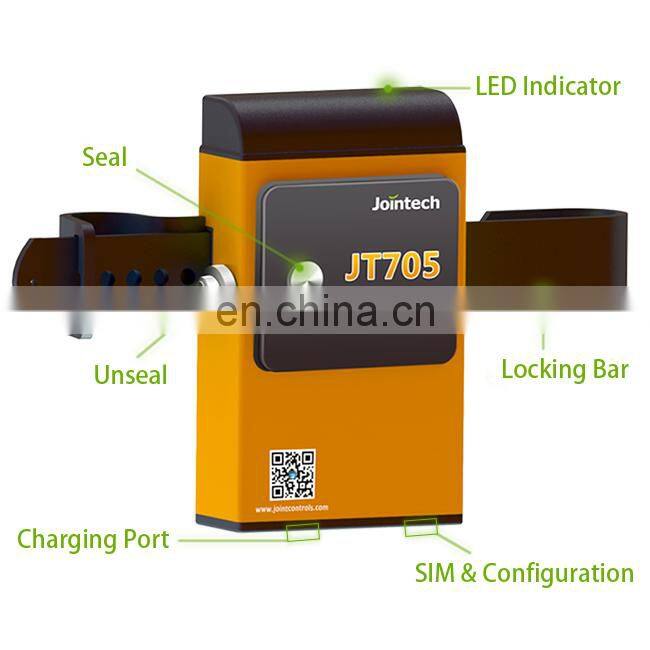

Key features:

1. Robust strong design:

    Aluminum case, carbon steel latch, hard to break

2. Unlock option:

   On site: Password from APP, via Ble

   Remote: Password from SMS, software, mobile app

3. Smart power management:

   Tracking mode / sleep mode

4. Long lasting 20,000mAh battery

5. IP67: withstand harsh external enviornment

6. Attitude monitoring:

    By analyzing 3-dimension & direction information, monitoring illegal door-removal and door status can be achieved.

7. Rich event alert:

    unlocking, wrong password (5 times input), door removal, geofencing, etc.

8. Support intelligent sensors,.

(eg: coupled with Intelligent sensor, it can monitor cargo load/unload/ temp & humidity monitoring)

Password choice:   fixed password /dynamic password

The user can set fixed password to open for administrator,

While the dynamic password can be generated immediately and sent to the server. The one authorized can get password by phone when the vehicle arrives.

Under special condition(eg, no signal in underground garage) JT705 device can be unlocked with authorized Ble

Specification:

Dimension:  223 x 130 x 53mm

Length of latch:  450mm

Weight:    4KG

Material:  Lock case: Aluminum   Latch: Carbon Steel

Working temperature: -20℃ - + 70℃

Storage temperature: -40℃ - + 85℃

Relative Humidity:  5% ~ 99%

Charging Voltage:  5V

Working Current: Average working current <120mA  Average standby current <4mA

Battery capacity:  20000mAh

Protection Grade:  IP67

SIM Slot:  Micro SIM card

GPS/GSM antenna:  Built-in

Ble Module:  MHz: 2.402GHz ~ 2.480GHz
