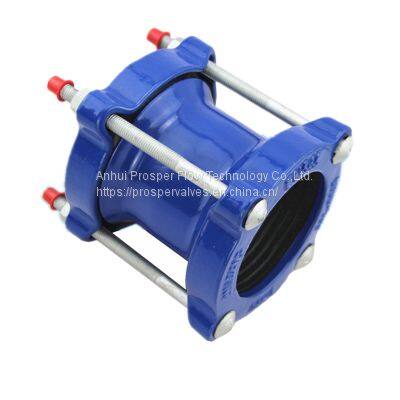

Ductile Iron GGG50 Universal Pipe Joint Coupling
- Shanghai
- T/T L/C
- 15 days
You May Like
-
Customized Corrosion Resistance Double Flange Limit Bellow Rubber Metal Expansion Joint
-
Ductile Iron Steel Flange Pipe Fittings Dismantling Joint Price
-
Ductile Iron Pipe Fittings Adaptors Flange Joint Universal Restraint Flange Adaptor Coupling
-
Automatic Flange Connection Air Release Valve With GGG50 Material ABS Ball
-
EN1092 CI Ductile Iron DIN Flanged End Double Balls Exhaust Valve Air Release Valve
-
Ductile Iron Auto Double Ball Orifice Air Release Valve Exhaust Valve with Flange End
Product Details
| Brand Name | ZW | Material | Iron | |
| Type | Coupling | Shape | Equal | |
| Technics | Casting | Connection | Flange |
Product Description
Universal coupling is designed to transfer the pressure thrust of connected pipes and compensate pipe error, reduce the damage of axial thrust against pipe and pipe. Universal coupling is normally used together with pump, valve and other pipe lines in the fields of water supply and drainage, water treatment and water projects. Prosper Flow is special in supplying the universal coupling with sizes of DN40mm to DN600mm.
1. FEATURES
· ±25mm longitudinal adjustment simplifies future pipework modifications, reducing down time
· Can be locked at required length with tie rods supplied
· FBE anticorrosive coated make long service life
· The integral tie-bar assembly avoid the need for other external restraints
· Special configurations and high pressure alternatives are available on request
· The universal coupling is particularly suitable for simplifying the installation and removal of valves, flanged pipe and fitting.
2. TECHNICAL SPECIFICATION
· PN10/PN16/150LB
· Size: 1-1/2”~24” (DN40~DN600mm)
· Materials: ductile iron GGG50
3. STANDARD
· Design & manufacturing: ISO, BS/EN, AWWA /ANSI
· Face to face: manufacturer’s
· Flanged ends: AS/BS table D/E, ANSI B16.1/16.5, EN1092
· Inspection & testing: API598
4. APPLICATION
· Sewage treatment works
· Water treatment works
· Power generation equipment
· Gas distribution station
· Industrial cooling systems
· Pumping station
