Product Description
Product description

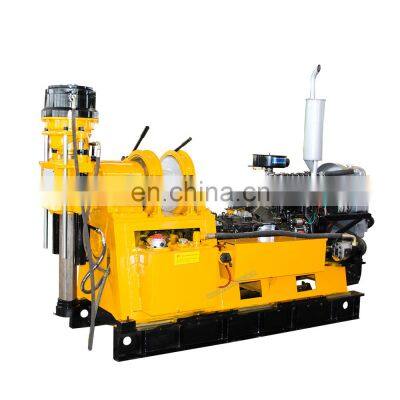

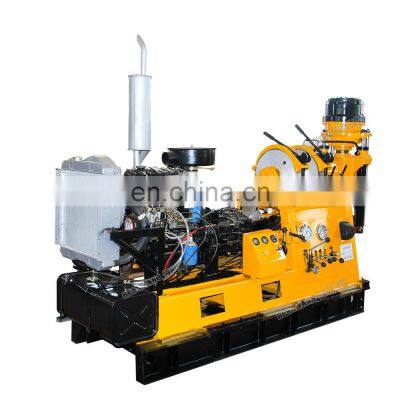

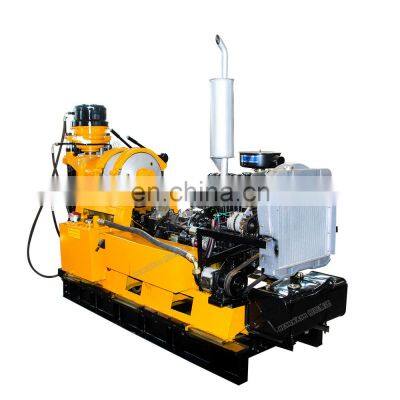

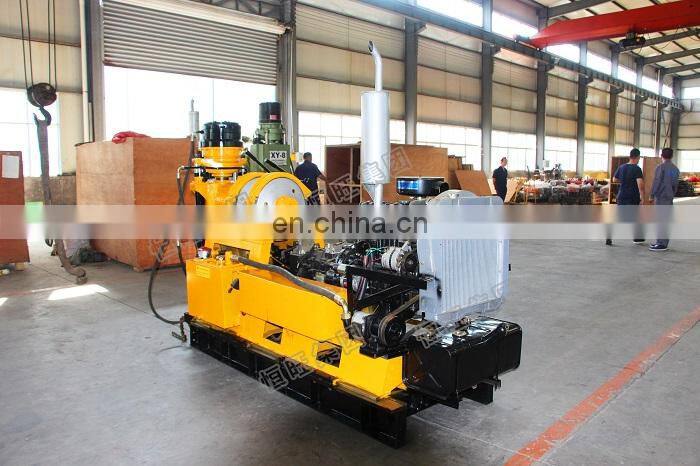

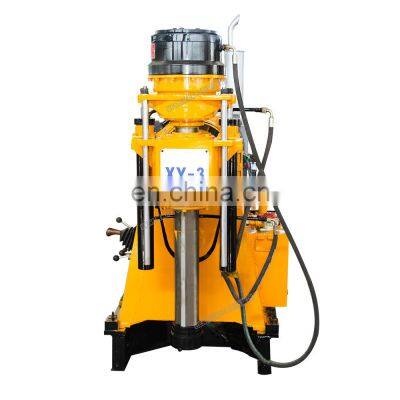

Hot Sale 600m Depth Mine Drilling Machine XY-3 Water Well Drilling Rig For Sale
XY-3 series drilling rig is a medium depth core drilling machine, the machine is Spindle core drilling rig mainly used for diamond drilling and able to meet the needs of various drilling Process. It can match the corresponding electric motor or diesel engine. The structure of the machine is simple, easy dismantling, easy to operate.
Main Features for XY-3 Hydraulic Drilling Rig
* 1.The rig is equipped with latest MW525 car transmission assembly, it owns 10 forward gears and 2 reverse gears, the gear speed design is reasonable to meet the needs of different drilling technology.
* 2.The drilling rig with large output torque and bearing capacity easy to handle a variety of underground accidents. Mechanical transmission structure is compact, spindle diameter is 96mm, bearing distance is big, drilling rig rigidity is good.
* 3.Hydraulic system controls the feeding pressure and speed to meet the needs of all kinds of formation drilling. The machine is equipped with pressure indicator at the bottom of the hole, it is easy to grasp the situation inside the hole.
* 4.This drilling machine is small size, light weight, good disassembly, good layout, flexible and reliable operation, easy maintenance.
* 2.The drilling rig with large output torque and bearing capacity easy to handle a variety of underground accidents. Mechanical transmission structure is compact, spindle diameter is 96mm, bearing distance is big, drilling rig rigidity is good.
* 3.Hydraulic system controls the feeding pressure and speed to meet the needs of all kinds of formation drilling. The machine is equipped with pressure indicator at the bottom of the hole, it is easy to grasp the situation inside the hole.
* 4.This drilling machine is small size, light weight, good disassembly, good layout, flexible and reliable operation, easy maintenance.
Specification
Whole machine parameters | Model | XY-3 |
Drilling depth(m) | 600 | |
Open hole dia. (mm) | 325 | |
End hole dia. (mm) | 75 | |
Drill angle (°) | 90-75 | |
Matching power (kW) | YUNNEI YN27/ 39 | |
Weight (kg) | 1800 | |
Dimension（L*W*H） (m) | 2. 6*0. 9*1. 75 | |
Spindle | Speed (r/min) | 32-1057 |
Stroke (mm) | 600 | |
Winch | Single rope lift force (kg) | 3000 |
3000 | ||
Single rope lift speed (m/s) | 0. 3-1. 9 | |
Wire rope dia. (mm) | Φ12.5 | |
Wire rope capacity(m) | 65 | |
Drill Tower | Rated load (ton) | 18(Optional） |
Effective height (m) | 11 |

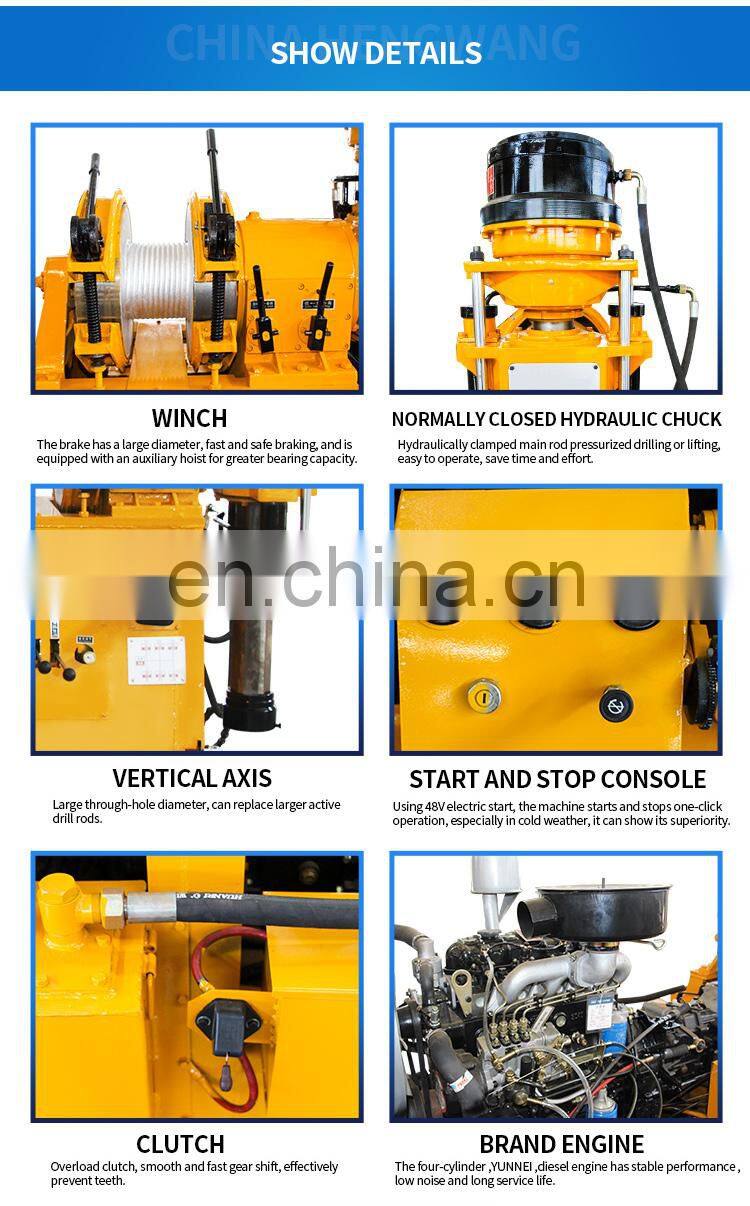

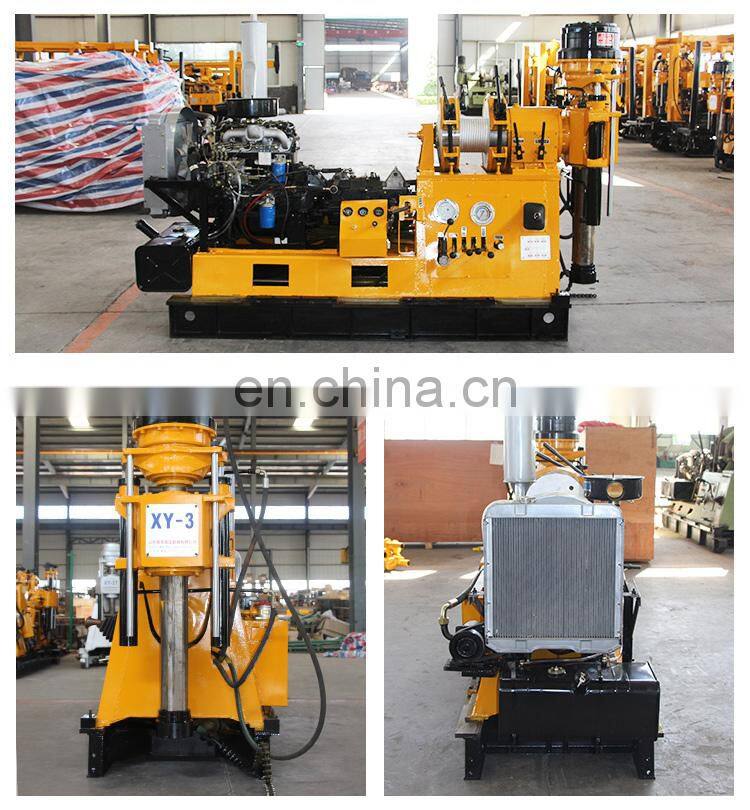

Product Details
Related Products
HW-160/190/230
1 set include all accessories will be used.
(Please contact us for Details)
.
HW-160T/190T/230T
1 set include all accessories will be used.
(Please contact us for list)
HW-160L/190L/230L
1 set include all accessories will be used.
(Please contact us for Details)
HWL-260L/300L/400L Water/air Drilling Rig
Hydraulic/Pneumatic Drilling rig
Max.drilling depth:260m/300m/400m
HW-160C/190C/230C
1 set include all accessories will be used.
(Please contact us for Details)
HW XY-3
Hydraulic Drilling rig
Max.drilling depth:600m
HW XY-44A
Hydraulic Drilling rig
Max.drilling depth:1400m
HW XY-8
Hydraulic Drilling rig
Max.drilling depth:3000m
