1 Ton 2 Ton 3 Ton Mini Dumper With Crawler Dumper Truck For Sale
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
HW-08T 800KG Hot Selling Crawler Dumper All Terrain Agricultural Crawler Dumper Truck
-
HW-08T High Quality Crawler Dumping Truck 0.8T Tracked Rubber Crawler Dumper Truck
-
HW-08T Factory Supply All Terrain Crawler Dumping Truck 800kg Agricultural Crawler Dumper
-
HW-12T 1.2T Crawler Dumper Truck Complex Terrain 1200kg Crawler Dumper Truck
-
HW-12T Hot Selling Agricultural Transporter Man Standing Walking Type Crawler Dumper Truck
-
HW-12T Top Quality All Terrain Dumper Truck Tracked Muddy Ground 1.2T Crawler Dumper
Product Description
Product Description

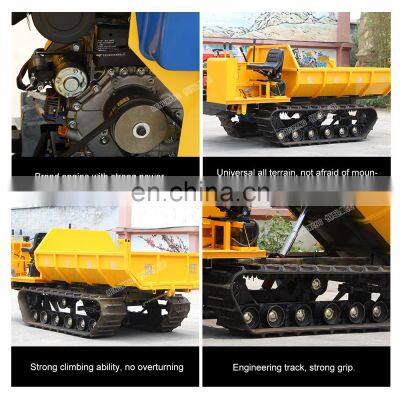

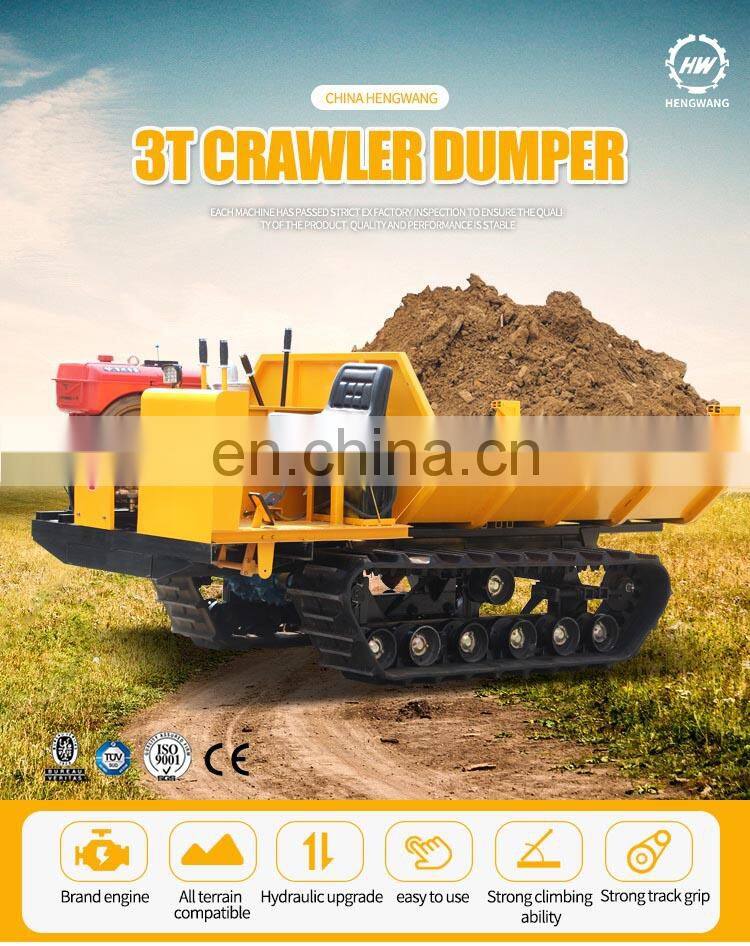

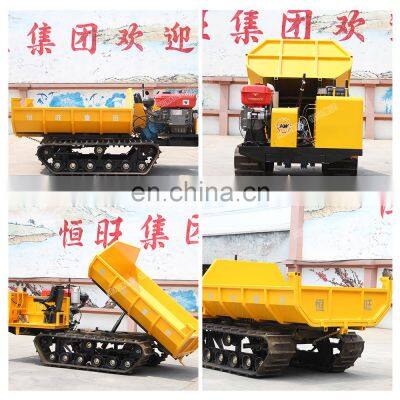

New 3 tons 4 Crawler 3 cubic meters mining dump truck.
The Rubber Track Dumper Truck replaces the traditional wheel type walking, with large bearing capacity, strong grip and low noise. At the same time, the crawler type walking device increases the unit floor area of the machine and the ground, and does not damage the farmland and asphalt pavement.
Crawler dumper truck has good driving and passing performance. Reduce the damage to farmland.
The end seal structure on the double shaft ensures no leakage of lubricating oil seal and prevents muddy water from entering the wheel cavity.
Specification
Item | HW3000L |

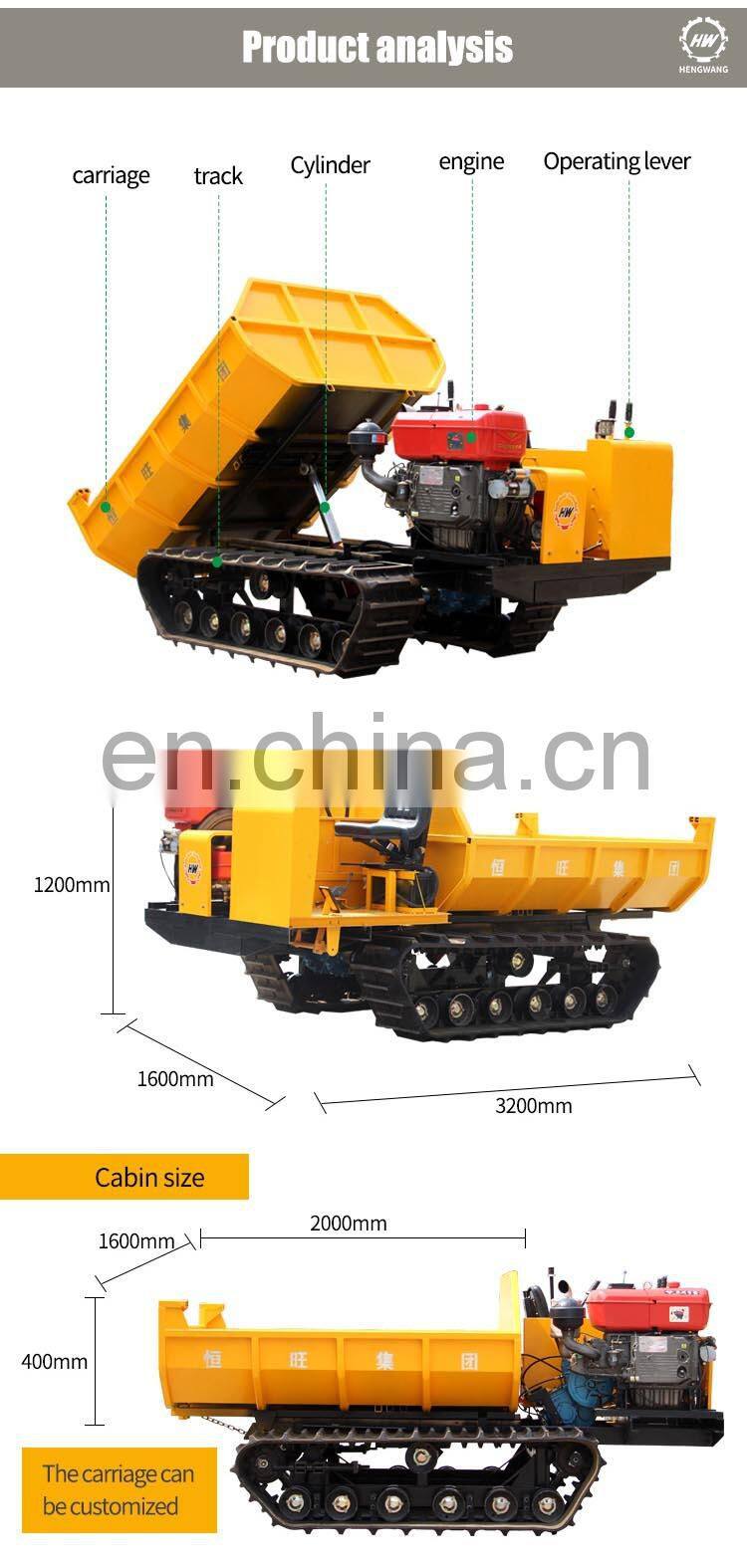

Overall Size | 3400*1600*1200mm |
Chassis Size | 1950*1600*450mm |
Container Size | 2000*1600*400mm |
Power | 30Hp/2200r/min |
Ground Clearance | 250mm |
Walking Speed | 8km/h |
Machine Weight | 1390Kg |
Max.Loading Capacity | 3000Kg |
Wading depth | 400mm |
Swampland depth | 400mm |
Gradability | 30° |
Track width | 400mm |
Grounding length | 1300mm |
Other | Accept Customization |

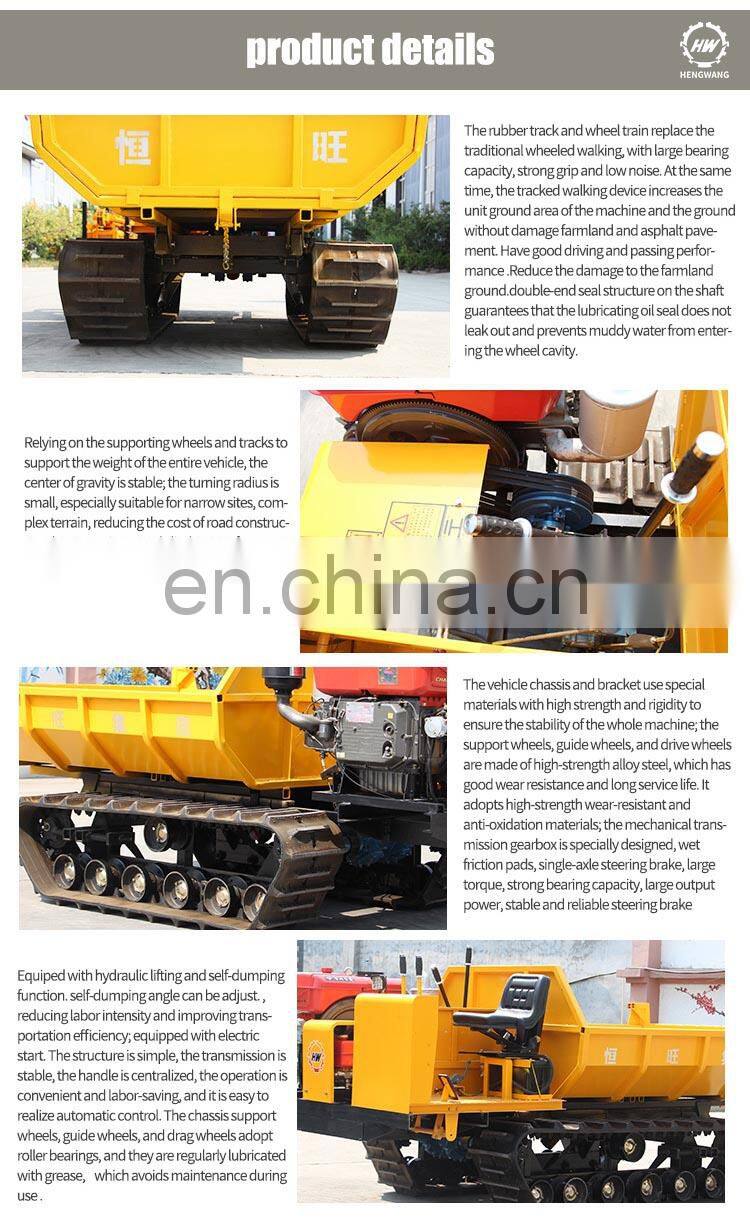

Product Details
Flexible mobility
The weight of the whole vehicle is supported by supporting wheels and tracks, and the center of gravity is stable; Small turning radius, especially suitable for narrow site, complex terrain.
Stable and reliable
The chassis and bracket of the vehicle are made of special materials with high strength and rigidity to ensure the stability of the whole machine; The supporting wheel, guide wheel and driving wheel are made of high strength alloy steel with good wear resistance and long service life. High strength wear-resistant and anti-oxidation materials are used; Mechanical transmission gearbox adopts special design, wet friction plate, single axle steering braking, large torque, strong bearing capacity, large output power, stable and reliable steering braking.
Convenient and efficient
It has the functions of hydraulic lifting and dump truck. The dump angle is adjustable. Reduce labor intensity and improve transportation efficiency; Equipped with electric starting. It has the advantages of simple structure, stable transmission, concentrated handle, convenient and labor-saving operation, and easy to realize automatic control. The supporting wheels, guide wheels and traction wheels of the chassis adopt roller bearings, which are lubricated with grease regularly to avoid maintenance in use.

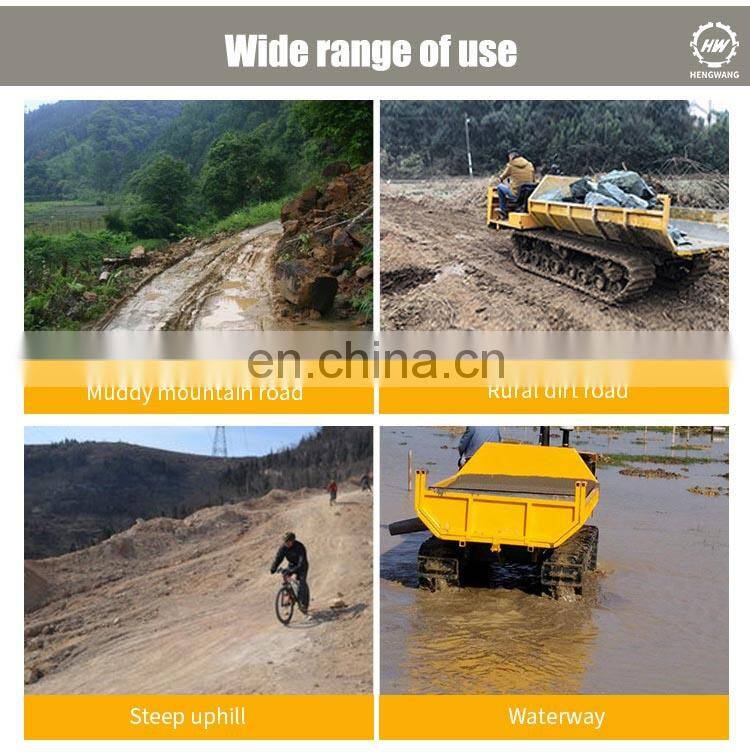

Application
