1 Year Warranty Hydraulic Telescopic 3 Tons Mini Spider Crawler Crane For Sale

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product description

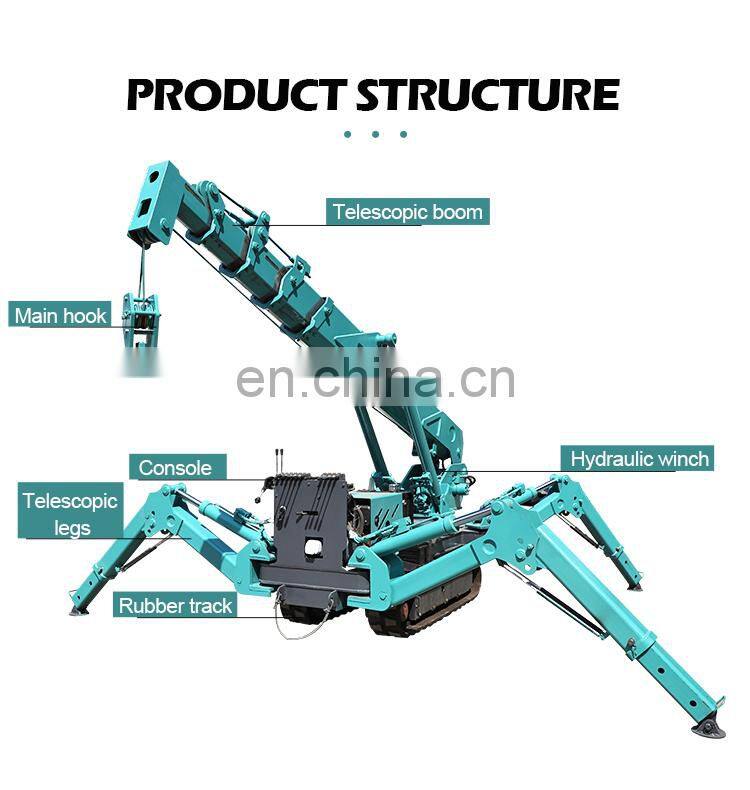

Mini Spider Crane Main Feature :

1.Proportional remote controlle and proportional Valve (Optional )

2.Moment limiter (Optional )

3.380V power supply (Optional)

4.Outrigger by remote control

5.Five section boom and double connection cylinder

6.1.2 height of body

7.U boom

8.Take the elevator

9.One-click leveling of outriggers

10.Interlock system

11.Travel available by forklift truck

12.Remote control walking

13.Sensor of outrigger on the ground

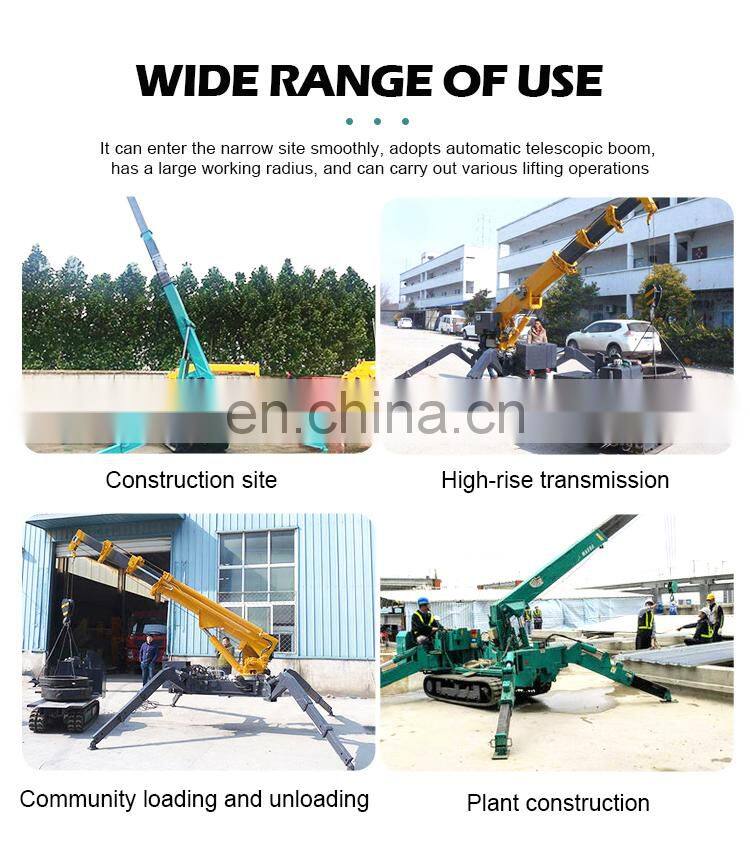

Mini Spider Crane Application:

The mini spider crane is widely applied to lifting especially in some narrow space where heavy-duty crane cannot reach.

Technical Parameters

Model	HW3.0
Specification			2.95T*1.3M
ing radius			8.3m*0.14T
Max.Ground lifting height			9.2m
Max.underground lifting height			-
Winch device	Hook speed	6.5m/min(4 sections)
Winch device		Rope type	φ7.7mm*45m

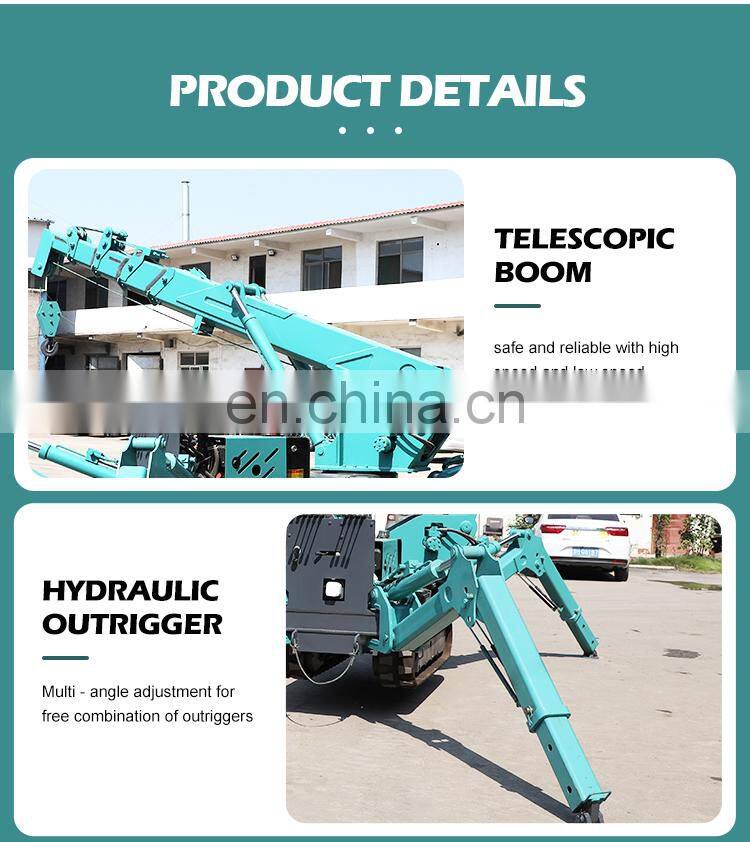

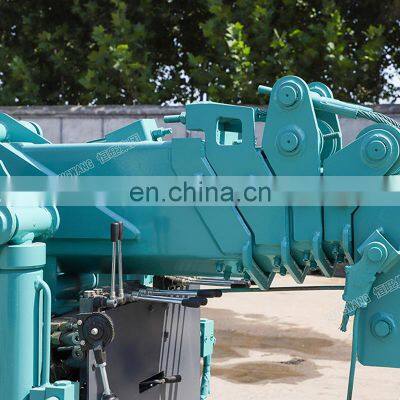

Telescopic system	Boom type	Full automatic 5 section
		Boom length	2.56-8.92m
		Telescopic length/time
Up and downs	Boom angle/time	0-75°/14sec
Slew system	Slew angle/time	0-360°（continuous）40sec

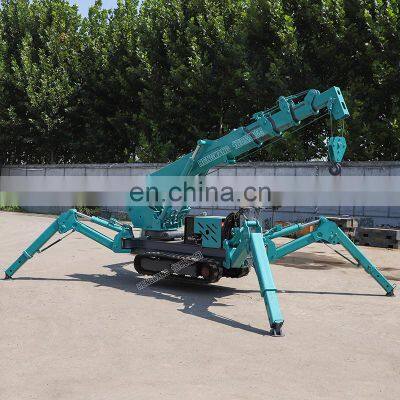

Outrigger	Max.Extended Dimensions	3900mm*3750mm

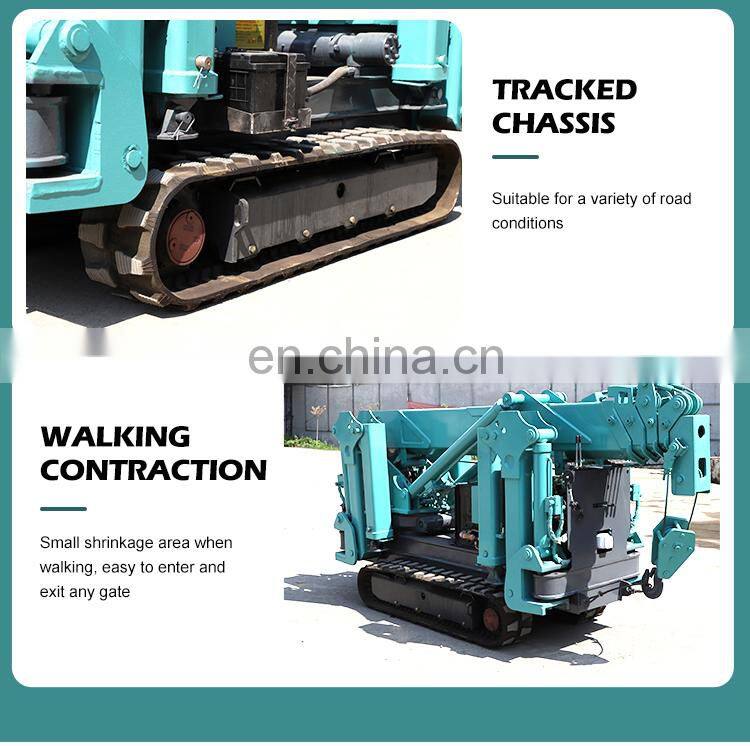

Traction system	Walking way	Hydraulic motor driven
		Walking speed	0-2.9km/h
		Ground lengthwidth2	1010200mm2
		Grade ability	20
		Ground pressure	51Kpa
Safety devices	Onekey leveling, torque limiter, height limiter, crane outrigger sensor, alarm device, emergency button
System voltage	DC12V
Diesel engine(optional)	Model	3TNV70
		Displacement	0.854L
		Max. output	10.3KW
		Starting method	Electric starting
		Fuel tank capacity	11L
		Opersting temperature	-5℃-40℃
		Battery capacity	12V 45Ah
Petrol engine	model	CH440
		Displacement	429ml
		max.output	14hp
		Starting method	recoil start/electric starting
		Fuel tank capacity	7.4L
		Opersting temperature	-5℃-40℃
		Battery capacity	12V 45Ah
Electic motor	power supply voltage	(standard) AC380V
Remote control	Type	BO*1.1(Optional)
		Operating range	100m
		water-proof standards	IP67
Dimension	Lengthwidthheight	29008001580mm
Weight	Vehicle weight	2050KG
