China Brand 14 Ton Road Roller With Hydraulic Brake
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Single Drum Vibratory Road Roller With Hydraulic Wal And Turning System
-
12000kg Double Drum Vibration Road Roller 6122E
-
Factory Custom Small Asphalt Hand Rollers
-
2022 Evangel China Famous Brand Shantui 4215 240Hp SG24-3 Farm Front Axle Grader Price In India
-
2022 Evangel Brand Shantui 240Hp 15 Ton Motor Grader Road Construction Machinery
-
2022 Evangel Evangel Shantui SG24-3 Motor Grader New 140K 140H 140G Motor Grader
Product Description

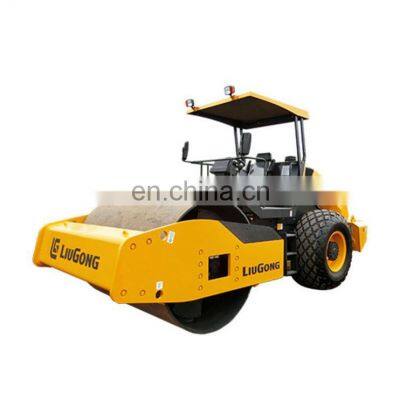

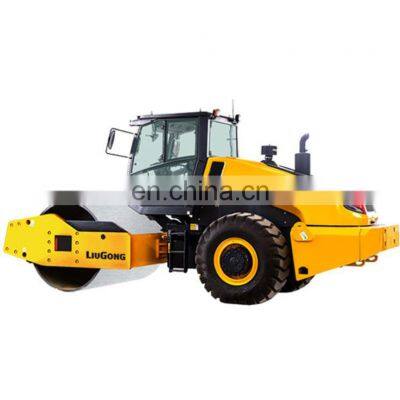

China Brand 14 ton Road Roller With Hydraulic Brake
Product Description
Features:
- Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing’s working life to beyond 10,000 hours increasing productivity and reducing part wear.
- LiuGong’s innovative auto throttle reduces fuel consumption by automatically switching the engine to idling mode during periods of inactivity.
- Soft starting and braking technology significantly improves the operator’s experience helping to reduce pavement damage and ensure a high quality finish to every job.
Contact Ways
Penny Wang
Sales Manager
Whatsapp/Wechat/Mobile:008618721261510
Email: penny"A"
Parameters:
|
Operating Mass
|
14000 kg |
|
Mass On Front Drum
|
7000 kg |
|
Mass On Rear Axle
|
7000 kg |
|
Front Drum Static Linear Load
|
329 N/cm |
|
Rear Drum Static Linear Load
|
329 N/cm |
|
Model
|
Cu-mmins QSB4.5 |
|
Emission Regulation
|
Stage III |
|
Rated Power
|
119 kW (162 ) @ 2200 rpm |
|
Vibration Frequency Low
|
45/50 Hz |
|
Nominal Amplitude Low
|
0.75/0.4 mm |
|
Centrifugal Force Low
|
166/99 kN |
|
Vibration Frequency High
|
50/67 Hz |
|
Nominal Amplitude High
|
0.8/0.3 mm |
|
Centrifugal Force High
|
185/115 kN |
|
Drum Diameter
|
1350 mm |
|
Drum Width
|
2130 mm |
|
1st Maximum Speed, fwd
|
0-6 km/h |
|
2nd Maximum Speed, fwd
|
0-8 km/h |
|
3rd Maximum Speed, fwd
|
0-12 km/h |

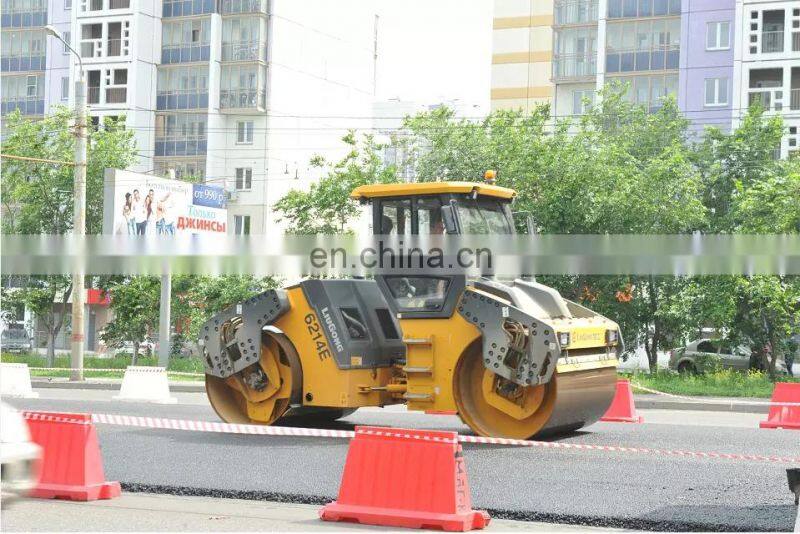

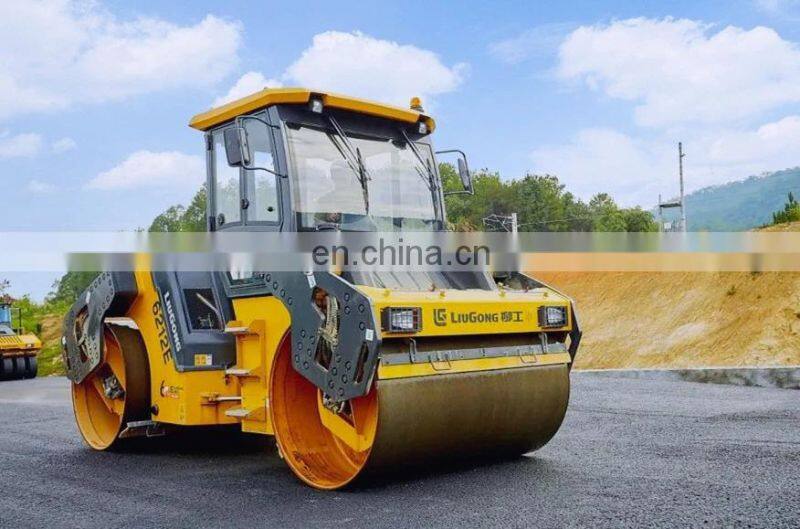

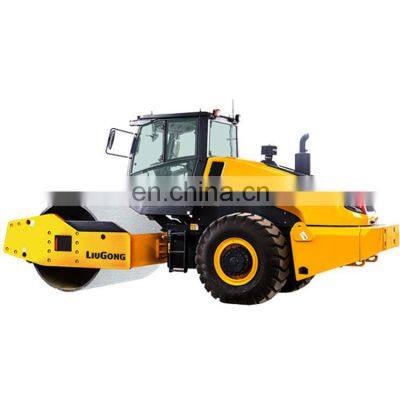

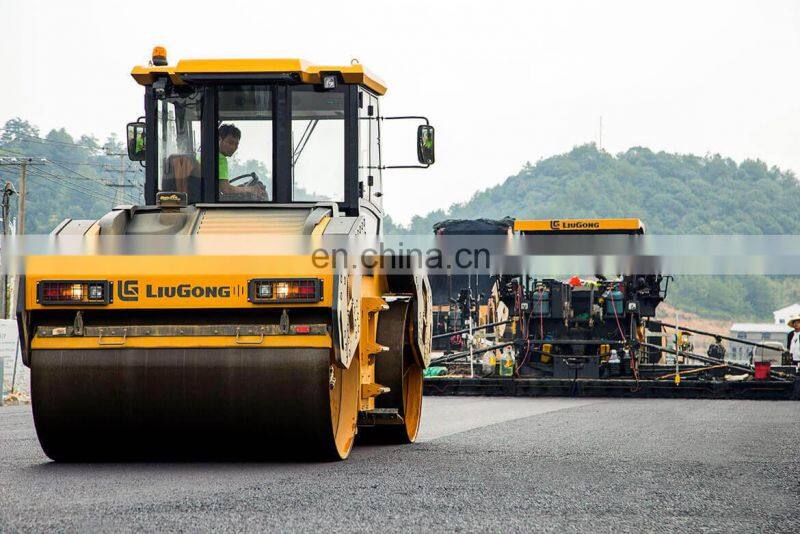

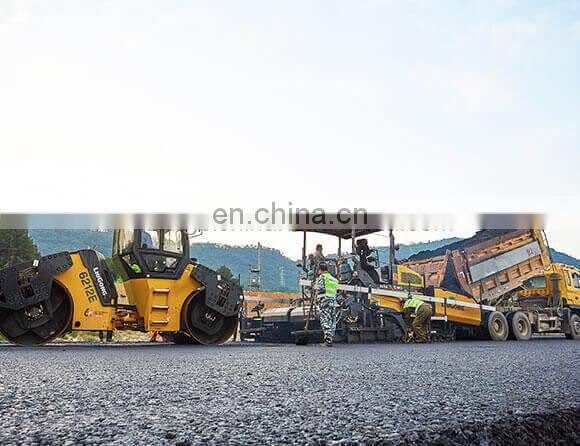

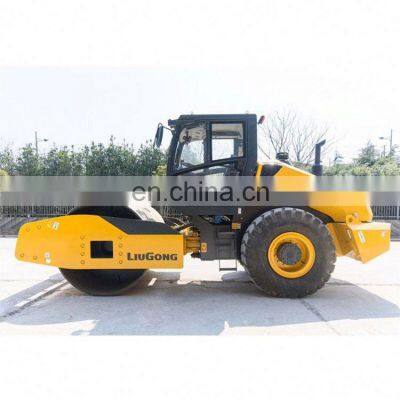

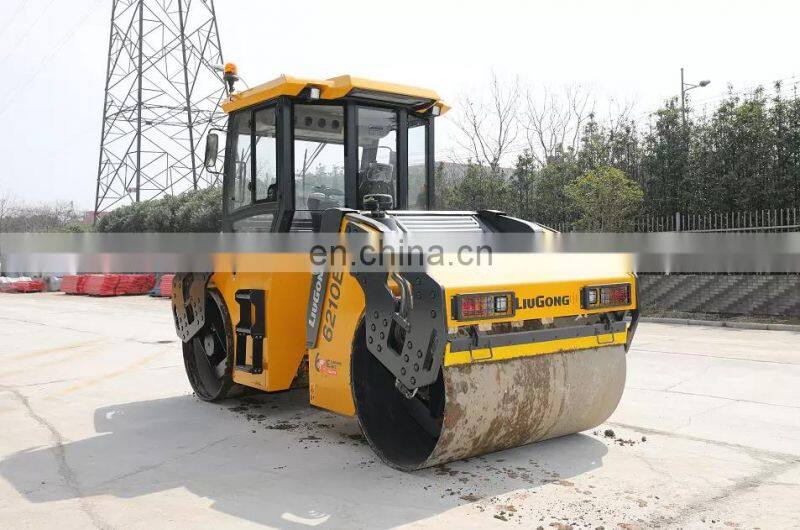

Photos for Reference
