Sheep Foot Compactor 14 Ton Single Steel Vibratory Road Roller XS143J
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
14 Ton Single Drum Vibratory Road Roller Compactor XS143J With Sheep Foot
-
Asphalt Compactor 14 Ton Double Drum Vibratory Road Roller XD143
-
Asphalt Tire Road Roller 20 Ton Pneumatic Rubber Compactor XP203
-
RP701L Asphalt Concrete Paver Machine Made in China for Sale
-
16 Ton Road Roller Price Single Drum Vibratory Road Rollers XS163J
-
Hot Sale Vibratory Roller in Africa 20 Ton Road Roller 6120E With Padfoot Good Price
Product Description
Products Description

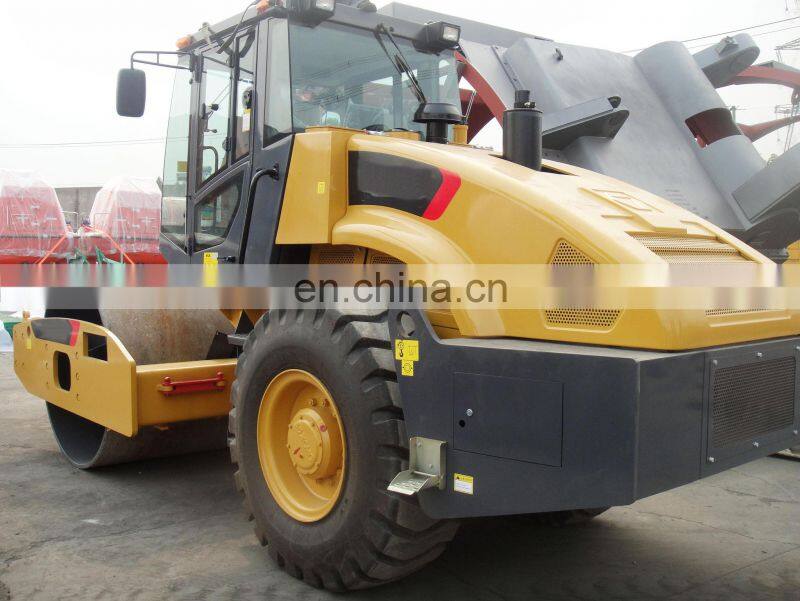

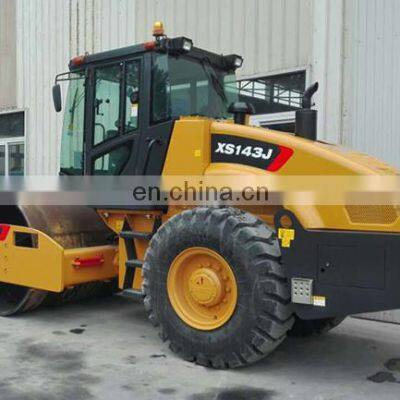

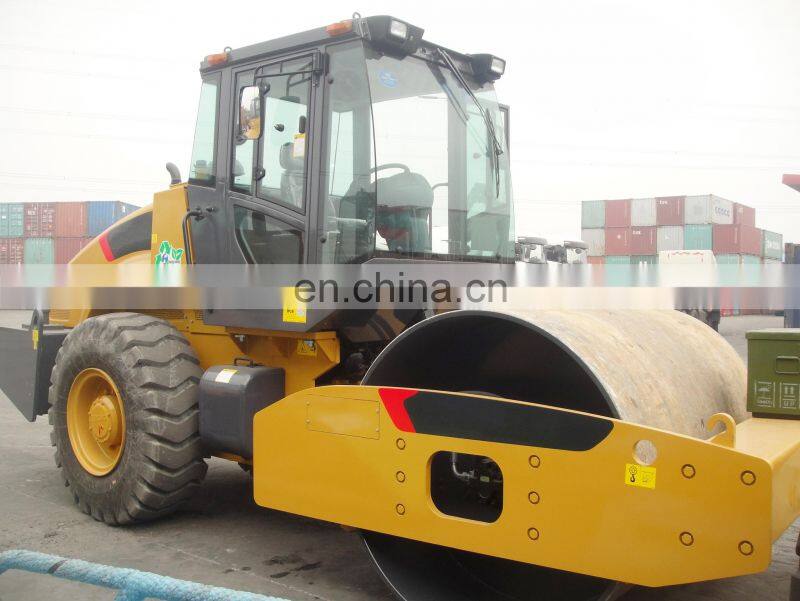

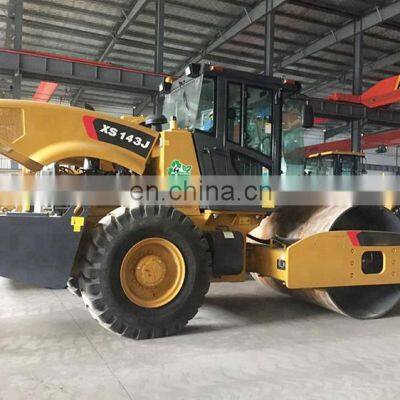

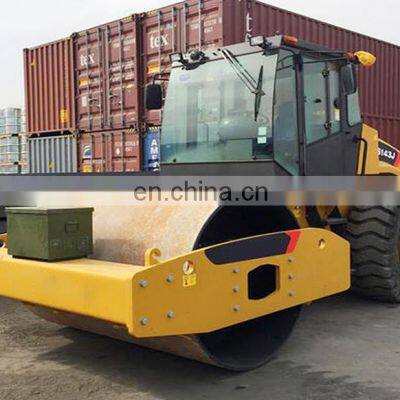

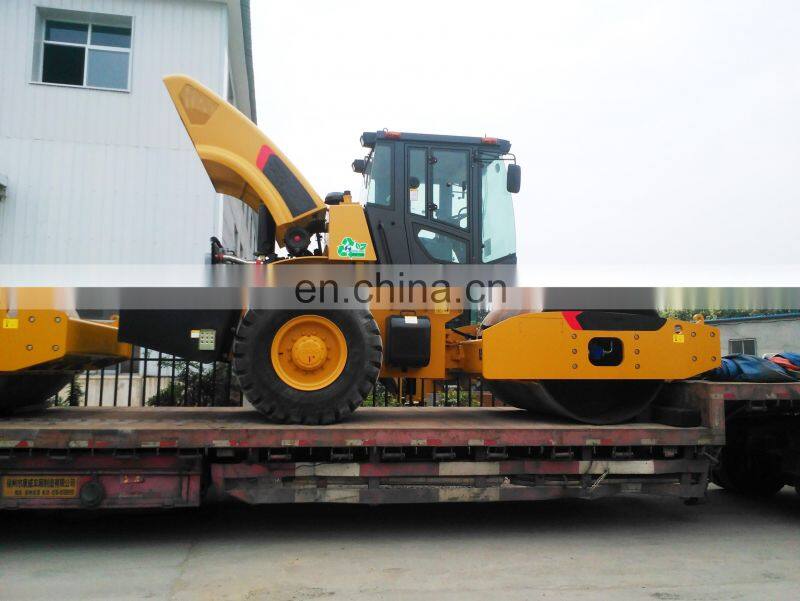

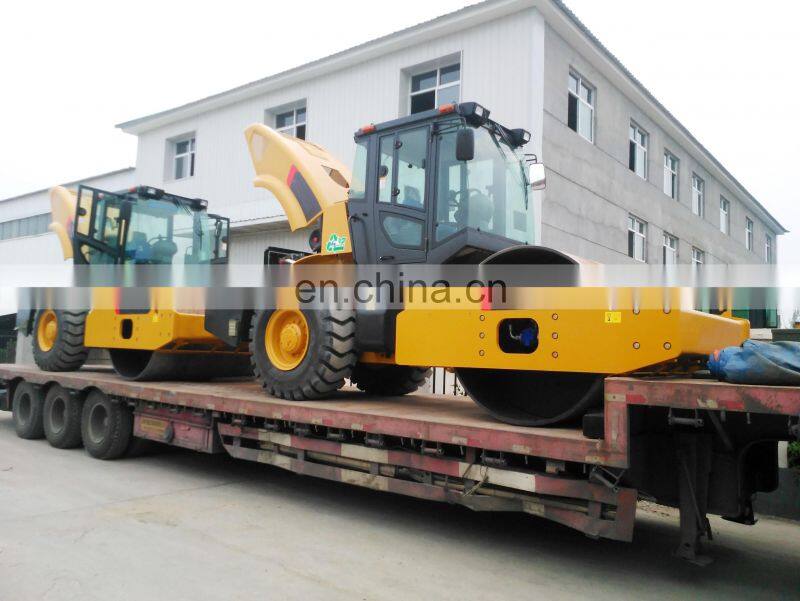

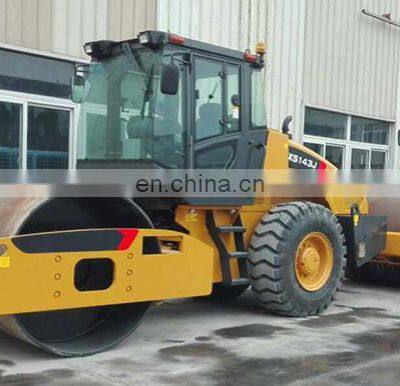

Sheep Foot Compactor 14 Ton Single Steel Vibratory Road Roller XS143J
XS143J Single drum vibratory roller has a very high static line load and exciting force and is suitable to the compaction
operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc. and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
Specification
ltem | Unit | XS143J | ||||
Service mass | kg | 14000 | ||||
Distributed mass of driving wheel | kg | 7300 | ||||
Distributed mass of vibration wheel | kg | 6700 | ||||
Static line load | N/cm | 315 | ||||
Vibration frequency | Hz | 28/33 | ||||
Theoretical amplitude | mm | 1.9/0.95 | ||||
Exciting force | kN | 274/190 | ||||
Range of speed | Forward | I | km/h | 2.85 | ||
II | km/h | 5.08 | ||||
III | km/h | 11.17 | ||||
Backward | I | km/h | 2.88 | |||
II | km/h | 5.02 | ||||
Wheel base | mm | 3040 | ||||
Compaction width | mm | 2130 | ||||
Theoretical gradeability | % | 30 | ||||
Minimum turn radius | mm | 6800 | ||||
Diameter of vibration wheel | mm | 1523 | ||||
Minimum ground clearance | mm | 431 | ||||
Engine | Model | SC4H140.1G2 | ||||
Rated speed | r/min | 1800 | ||||
Rated power | kW | 103 | ||||
Overall dimension (length x width x height) | mm | 6150*2300*3200 | ||||
Details Images
