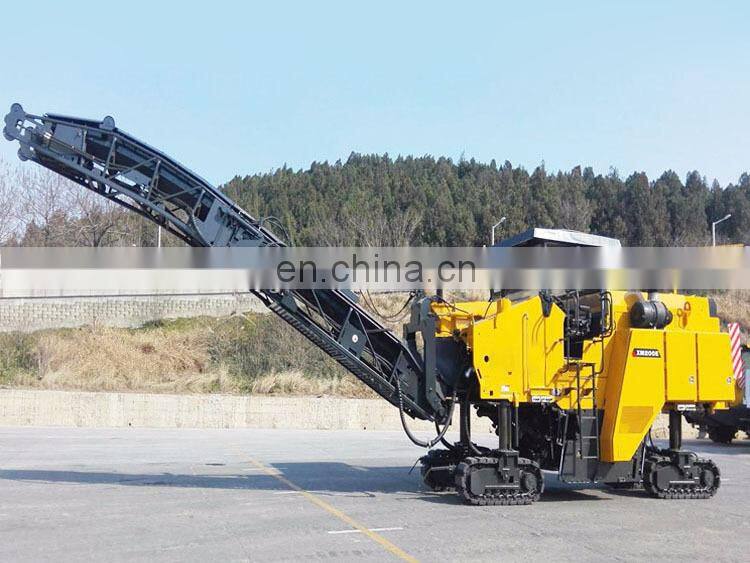

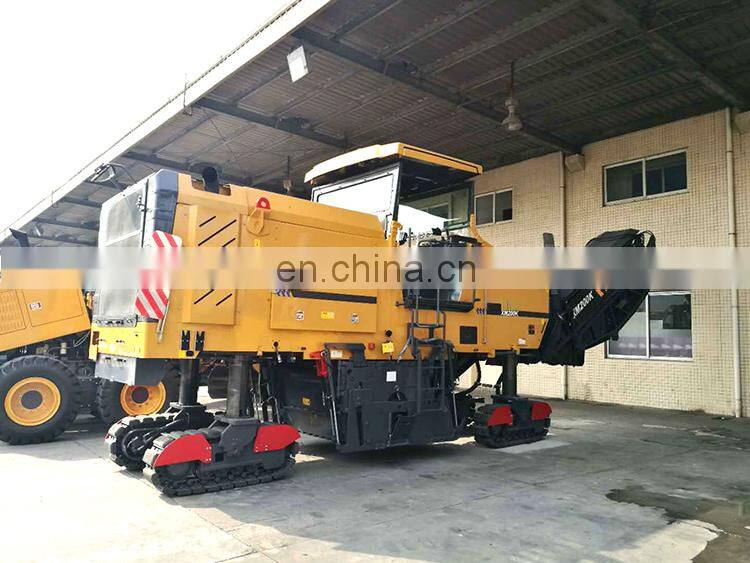

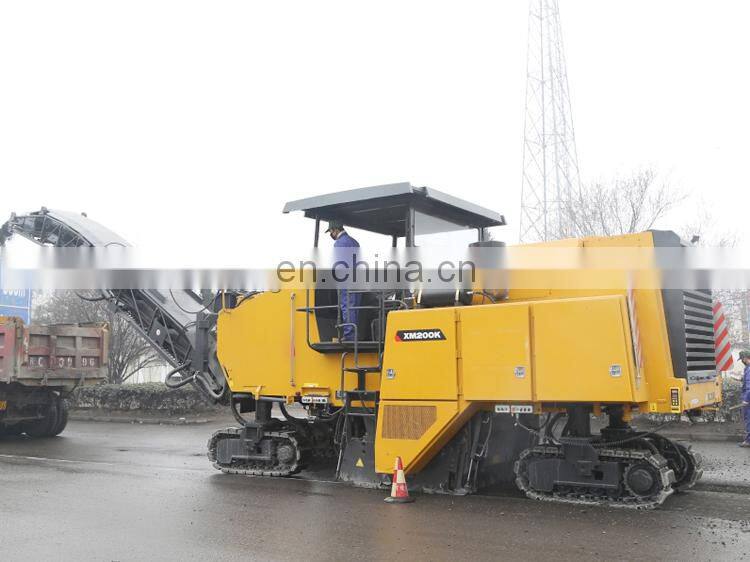

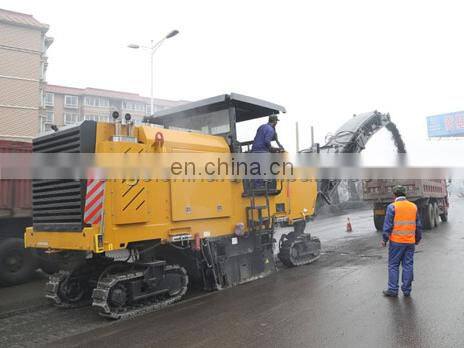

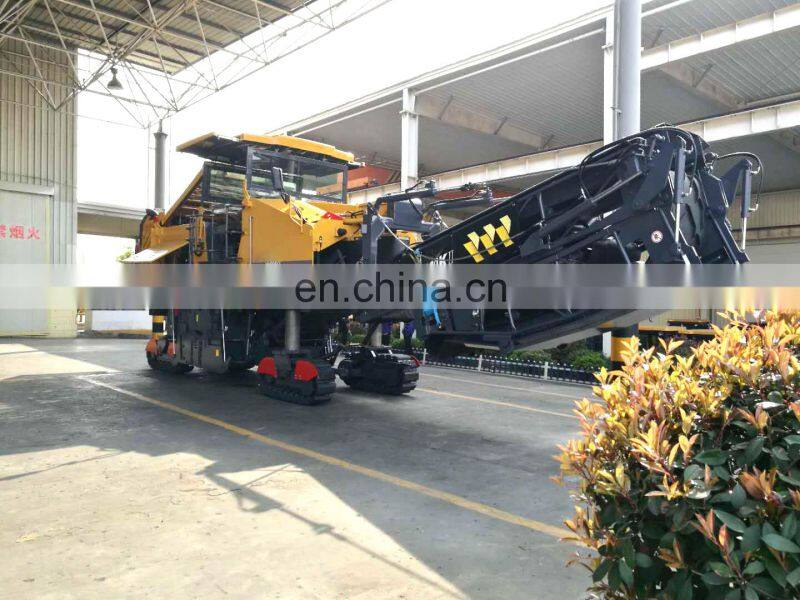

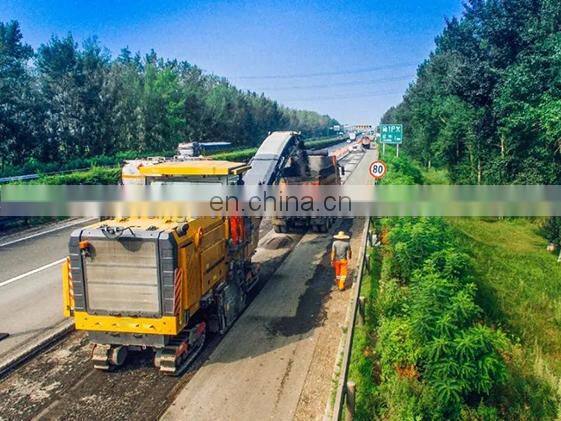

Road maintenance machinery 2000mm milling width tracked asphalt cold milling machine XM200KII
- T/T Credit Card
You May Like
-
LTP2030H/LTP1826H/LTP1016H pneumatic tyre road roller with stepless speed changes
-
Xgma Brand Motor Grader 165HP Grader Xg3165c Xgma Motor Grader Parts
-
2021 Newest XGMA XG3165C 180hp Hydraulic Motor Grader For Road Construction
-
China supplier hot sale motor grader XGMA Motor Grader XG3200F for cheap price
-
Hot sale model XGMA XG3200F 200HP Motor Grader with 6CTAA8.3-C215 engine
-
Construction Motor Grader XGMA XG3180C 180HP Mini New Motor Grader For sale
Product Description
2000mm milling width crawler asphalt milling equipment road maintenance machinery XM200KII with factory price for sale
Asphalt Cold Milling Machine for sale!
Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.
Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.
The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.
The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.
Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
|
Item |
Unit |
XM200KII |
|
|
Maximum milling width |
mm |
2000 |
|
|
Maximum milling depth |
mm |
320 |
|
|
Milling Wheel |
Interval between |
mm |
15/18 |
|
Amount of tools |
168/146 |
||
|
Diameter of milling wheel(with tool) |
mm |
980 |
|
|
Maximum dip angle of milling wheel |
° |
5 |
|
|
Diesel engine |
Manufacturer |
USA Cu m-mins |
|
|
Cooling type |
Water cooling |
||
|
Model |
QSX15 |
||
|
The quantity of cylinder stator |
6 |
||
|
Related power |
kw |
470 |
|
|
Engine speed |
rpm |
2100 |
|
|
Oil consumption: Full load |
l/h |
125 |
|
|
Speed/gradeability |
Working speed |
m/min |
0-85 |
|
Walking speed |
km/h |
0-5 |
|
|
Theoretical gradeability(working gear) |
% |
80 |
|
|
Interval to the ground |
mm |
320 |
|
|
Weight/load |
Shipping weight |
kg |
30000 |
|
Working weight |
kg |
34000 |
|
|
Crawler belt device |
Front crawler belt |
mm |
1720 x 300 x 620 |
|
Rear crawler belt |
mm |
1720 x 300 x 620 |
|
|
Tank volume |
Fuel tank |
L |
1400 |
|
Hydraulic fuel tank |
L |
300 |
|
|
Water tank |
L |
3400 |
|
|
Electric system |
F |
24 |
|
|
Conveyor belt device |
Width of material collection conveyor belt |
mm |
850 |
|
Width of material unloading conveyor belt |
mm |
850 |
|
|
Delivery capacit of conveyor belt |
≤m3/h |
375 |
|
|
Overall dimension of shipping |
Machinery(length x width x height) |
mm |
7650 x 2580 x 3000 |
|
Belt conveyor(length x width x height) |
mm |
8060 x 1150 x 1500 |
|
