Home > Products > Lifting Machinery > 2022 Evangel zoomlion crane 25 ton/25 ton mobile crane

2022 Evangel zoomlion crane 25 ton/25 ton mobile crane

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Zoomlion crane 25 ton/25 ton mobile crane

Product Description

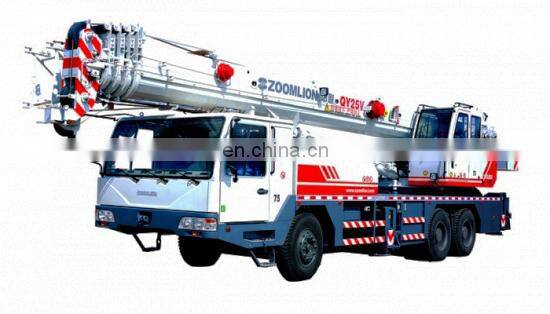

QY25 TRUCK CRANE/ ZOOMLION MOBILE CRANE

MAIN FEATURE:

• A truck crane featuring full circle swinging, telescopic luffing jib and five-section boom;
• Three-axle dedicated chassis, broad vision, simple and generous decorations, 6×4 drive;
• It adopts a load feedback hydraulic proportional directional valve and quadruple gear pump system, with such safety devices as overflow valve, balance valve, hydraulic lock and brake valve equipped to prevent oilway overload and avoid accidents due to pipe fracture;
• Such safety devices as torque limiter and a complete lighting system are equipped to ensure safe and reliable operation, and facilitate operation at night;
• The complete crane features an innovative design, with its body, line and tint beauty integrated.

MAIN SPECS:

Max. rated total lifting capacity: 25000kg

Complete vehicle kerb mass: 31570kg

Overall dimensions (L×W×H): 12700×2500×3450mm

Boom: 5 main booms plus jib

Max. lifting height of main boom: 39m

Max. lifting height of fly jib: 47m

3 Axles

Hydraulic control

Double independent winches

Parameter: 25 ton zoomlion crane with best price

Item		Unit	Value	Remarks
Working performance	Max. rated lifting capacity	kg	25000
	Max. load moment of basic boom	kN.m	950
	Max. load moment of main boom(fully extended)	kN.m	525
	Max. lifting height of main boom	m	38.7	These parameters do not include deflection of main boom and jib
	Max. lifting height of jib	m	46.58
Working speeds	Max. hoist rope speed(Main winch)	m/min	135	At the 3rd layer
	Max. hoist rope speed(Auxiliary winch)	m/min	100	At the 3rd layer
	Boom derricking up time	s	40
	Boom derricking up time	s	120
	Slewing speed	r/min	2.6
Driving parameters	Max. driving speed	km/h	72
	Max. gradeability	%	34
	Min. turning diameter	m	≤20
	Min. ground clearance	mm	235

Photo for reference

Packaging & Shipping
