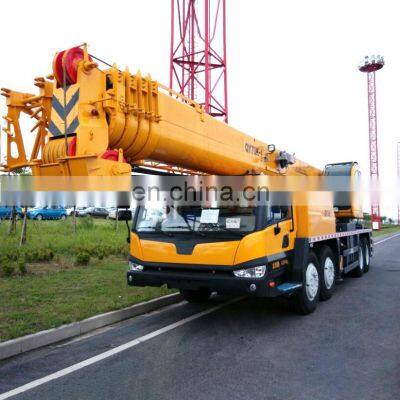

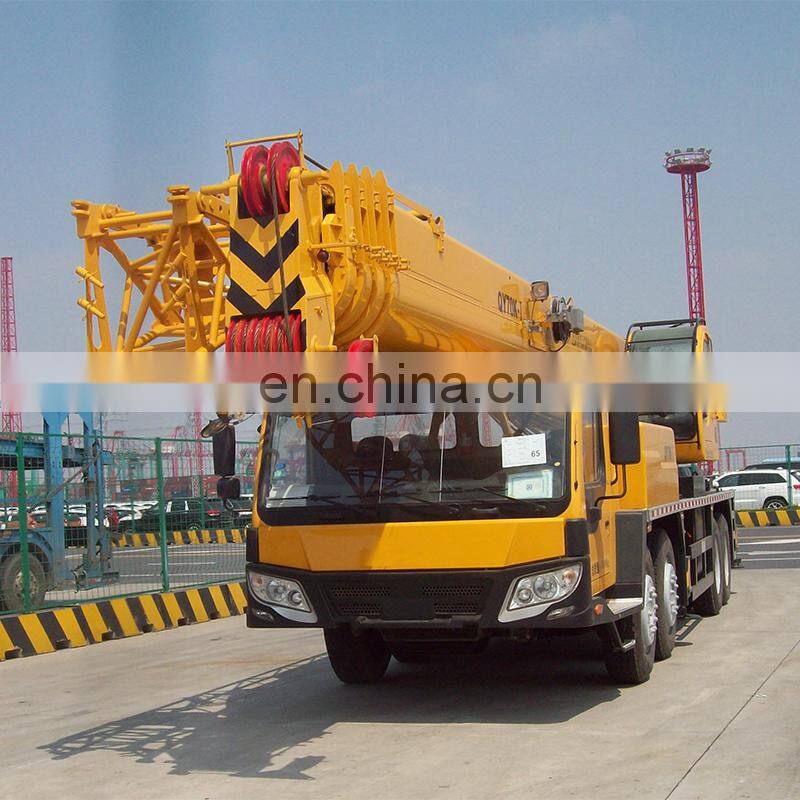

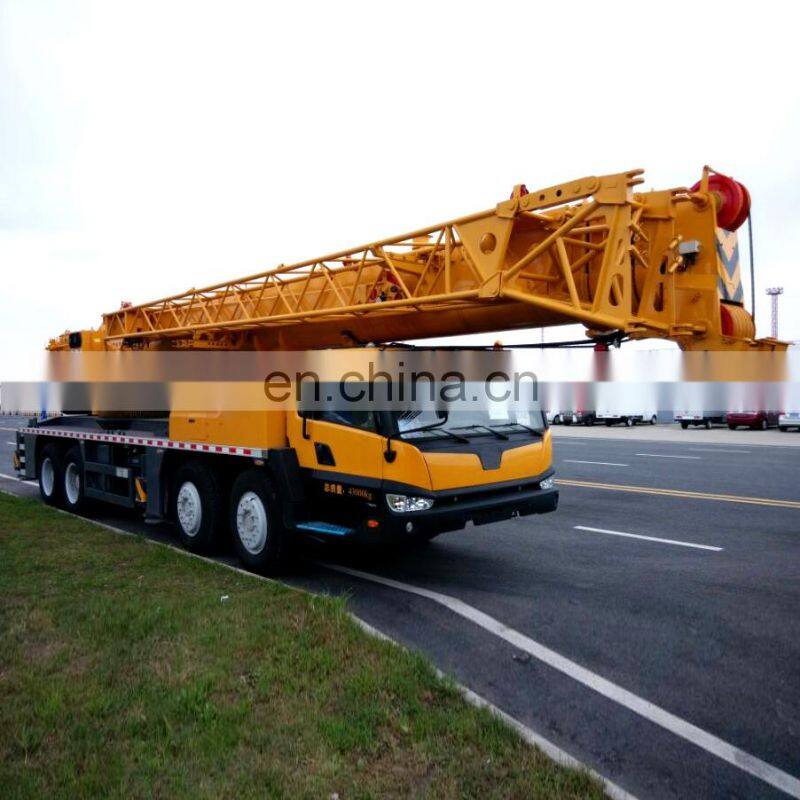

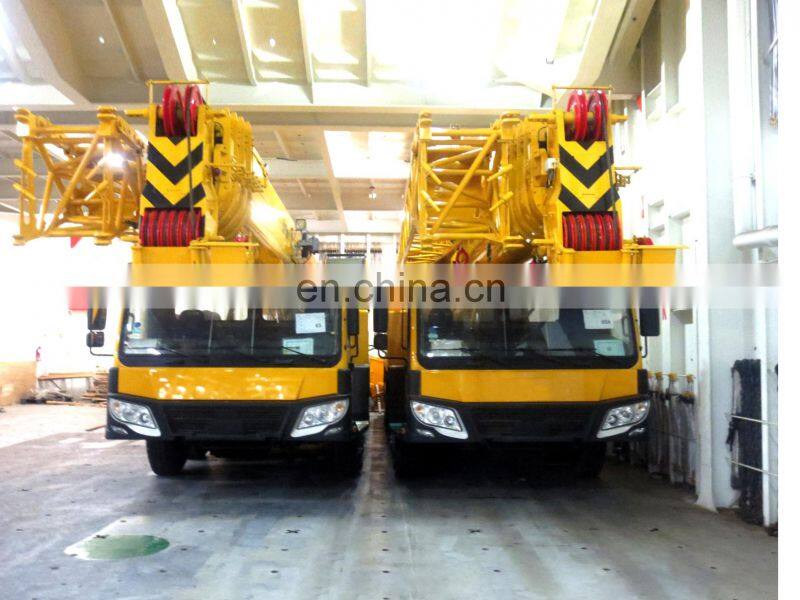

New 70 Tons Lifting Capacity Truck Crane QY70KC/QY70K-I/STC700/ZTC700V552 Factory Price
- T/T Credit Card
You May Like
-
New 70 Tons Hydraulic Truck Crane QY70KC for Sale
-
Zoomlion Zcc8800w Crawler Crane 650ton Wind Turbine Crane for Sale
-
Good Performance Zoomlion 800 TON Crawler Crane ZCC9800W
-
Popular ZOOMLION 180 Ton Crawler Crane QUY180 Best Price for Sale
-
75 Ton Zoomlion Crawler Crane ZCC750 For Sale XGC55 SCC550 SCC750
-
Zoomlion 800 Ton Crawler Crane QUY800 Price
Product Description
New 70 tons lifting capacity truck crane QY70KC/QY70K-I/STC700/ZTC700V552 factory price
Five-section 48m main boom, single-plate boom head, compact boom tail, lifting performance leading the industry with 9% of new products of the same tonnage, medium-length boom, full boom
The performance under high-frequency conditions is 10-15% ahead.
Off-road type four-axle dedicated G-type chassis, equipped with low-speed high-torque power transmission system, taking into account low-speed climbing performance and high-speed transition
Performance, the maximum climbing ability is 41%, the maximum driving speed is 90km/h, it can carry full counterweight for short-distance transitions, and it is highly maneuverable.
G-generation dual-variable pump + post-valve compensation load-sensing system, dual-pumps are automatically divided and combined for control, which can achieve compounding of any working conditions,
and the operating efficiency is industry-leading. The use of post-valve compensation technology reduces the throttling loss of the hydraulic system and improves lifting operations
Micro-movement and smooth operation realize the perfect combination of cost-effectiveness and precise control.
The reliability of the electrical system is fully improved: waterproof and dustproof connectors, wire harness branch metal splitter protection, high temperature resistance 150 ℃ closed bellows, protection level reaches IP67.
QY70KC specification:
|
Category
|
Item
|
Unit
|
Parameter
|
|
|

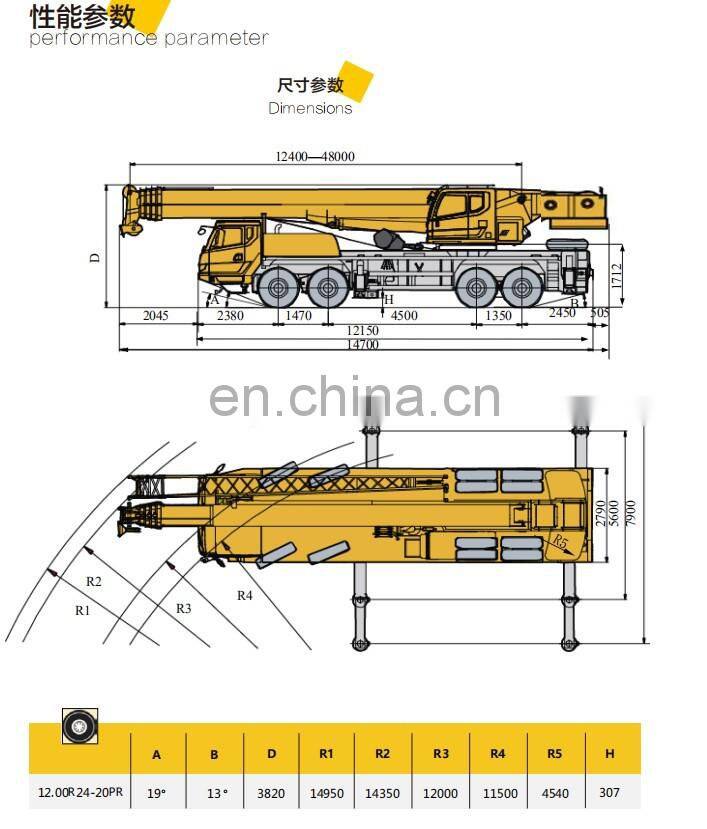

Dimensions
|
Outline size(lengthxwidthxheight)
|
m
|
14700x2790x3820
|
|
|
Wheel base
|
m
|
1470+4500+1350
|
||
|
Track(Front/ Rear)
|
m
|
2353/2325
|
||
|
Front/ Rear overhang
|
mm
|
2380/2450
|
||
|
Front/ Rear extension
|
mm
|
2045/505
|
||
|
Weight
|
Total vehicle mass in travel configuration
|
kg
|
44800
|
|
|
Axle load
|
1st axle
|
kg
|
9450
|
|
|
2nd axle
|
kg
|
9450
|
||
|
3rd axle
|
kg
|
12950
|
||
|
4th axle
|
kg
|
12950
|
||
|
Power
|
Engine model
|
D10.38-50
|
||
|
Engine rated power/rpm
|
kW/(r/min)
|
276/1900
|
||
|
Max. net power/rpm
|
kW/(r/min)
|
274/1900
|
||
|
Engine rated torque/rpm
|
N.m/(r/min)
|
1560/1200-1500
|
||
|
Travel
|
Max. travel speed
|
km/h
|
≥90
|
|
|
Min. travel speed
|
km/h
|
1.7~3
|
||
|
Min. turning diameter
|
m
|
≤24
|
||
|
Min. turning diameter at boom tip
|
m
|
≤25.2
|
||
|
Min. ground clearance
|
mm
|
307
|
||
|
Approach angle
|
°
|
19
|
||
|
Departure angle
|
°
|
13
|
||
|
Braking distance (at 30 km/h )
|
m
|
≤10
|
||
|
Max. grade ability
|
%
|
41
|
||
|
Fuel consumption per 100 km
|
L
|
43
|
||
|
Main performance
|
Max. total rated lifting capacity
|
t
|
70
|
|
|
Min. rated working radius
|
m
|
3
|
||
|
Turning radius at turntable tail
|
Counterweight
|
mm
|
4350
|
|
|
Auxiliary winch
|
mm
|
4545
|
||
|
Max. load moment
|
Base boom
|
kN.m
|
2812
|
|
|
Fully-extended boom
|
kN.m
|
1622
|
||
|
Fully-extended boom + Jib
|
kN.m
|
554
|
||
|
Outrigger span
|
Longitudinal
|
m
|
6.545
|
|
|
Lateral
|
m
|
7.9(5.6)
|
||
|

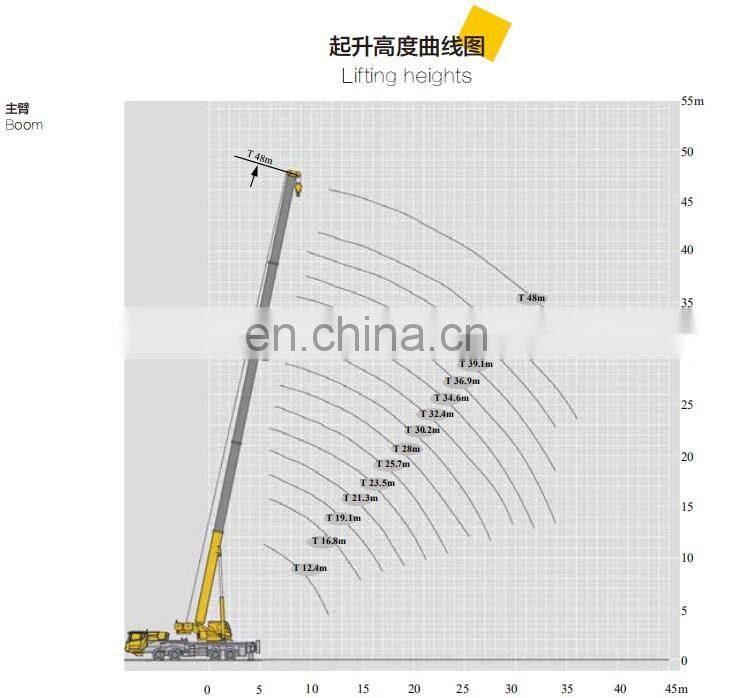

Hoist height
|
Base boom
|
m
|
12.7
|
|
|
Fully-extended boom
|
m
|
48.5
|
||
|
Fully-extended boom + Jib
|
m
|
64.5
|
||
|
Boom length
|
Base boom
|
m
|
12.4
|
|
|
Fully-extended boom
|
m
|
48
|
||
|
Fully-extended boom + Jib
|
m
|
64
|
||
