Home > Products > Lifting Machinery > Lifting Machine 85 Ton Small Hydraulic Crawler Crane XGC85
Lifting Machine 85 Ton Small Hydraulic Crawler Crane XGC85
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Famous Telescopic Crane QY50KA 50ton Truck Crane With 1 Year Online Support Free Spare Parts Field Installation
-
China 50 Ton Truck Crane Mobile Crane Lifting Machinery Pickup Truck Crane QY50KA
-
Beat Supplier QY50KA QY50K 50 Ton Truck Crane Factory Price
-
China Hydraulic 50 Ton Mobile Truck Crane Qy50k Qy50ka Qy50kd Cheap Price for Sale
-
China Famous Brand Official Hot Sale 30 Ton Crane QY30K5C Truck Crane Cheep Price With High Quality
-
QY30K5C Pilot Control Chinese Construction 30 Ton Hydraulic Mobile Truck Crane for Sale
Product Description

Products Description

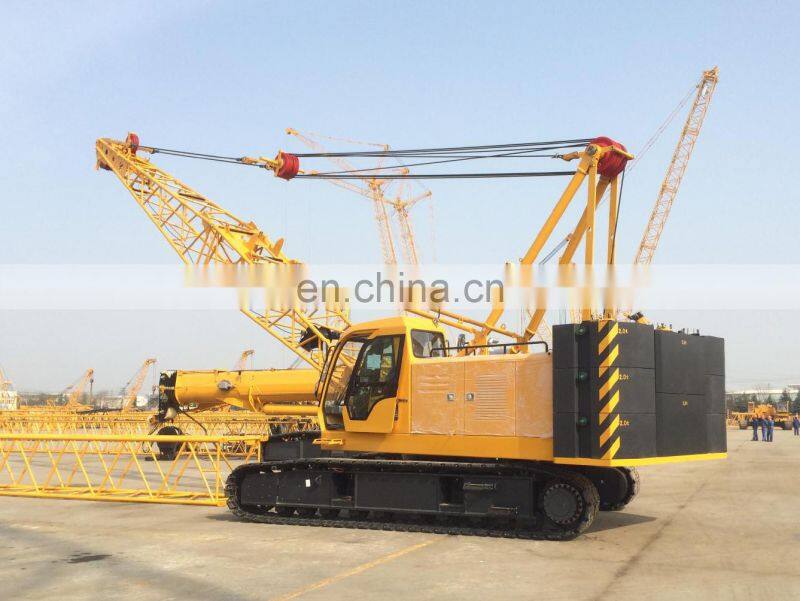

Lifting Machine 85 Ton Small Hydraulic Crawler Crane XGC85
1. Optimized design of transport and assembly/ disassembly
* Basic machine is an integrated transport design, without disassembling track frame and boom base, greatly save transport costs and improve the assembly/disassembly efficiency.
* Unique A-frame gantry self-erection technology, no need of cylinder can achieve self- erection, to realize crane quick assembly.
* Single counterweight weighing no more than 4t, small auxiliary lifting equipment can achieve complete counterweight assembly.
2. Opimized hydraulic system design
* Integrated design to reduce failure points, while reserve open space for assembly/ disassembly and maintenance.
* Use of highly integrated LUDV main valve, with the functions of multi-complex operation, control of combined flow, high/low speed selection, to ensure operation efficiency.
* Optional unique independent bypass filtration in the industry, strong magnetic adsorption device, strengthened hydraulic system filtration, and anti-emulsifying ability.
3. Main/ auxiliary hook one-key-switch-over function
One-key-switch is used to easily achieve main/auxiliary hook switch-over, for wider range of applications.
* Basic machine is an integrated transport design, without disassembling track frame and boom base, greatly save transport costs and improve the assembly/disassembly efficiency.
* Unique A-frame gantry self-erection technology, no need of cylinder can achieve self- erection, to realize crane quick assembly.
* Single counterweight weighing no more than 4t, small auxiliary lifting equipment can achieve complete counterweight assembly.
2. Opimized hydraulic system design
* Integrated design to reduce failure points, while reserve open space for assembly/ disassembly and maintenance.
* Use of highly integrated LUDV main valve, with the functions of multi-complex operation, control of combined flow, high/low speed selection, to ensure operation efficiency.
* Optional unique independent bypass filtration in the industry, strong magnetic adsorption device, strengthened hydraulic system filtration, and anti-emulsifying ability.
3. Main/ auxiliary hook one-key-switch-over function
One-key-switch is used to easily achieve main/auxiliary hook switch-over, for wider range of applications.
Specification
Item | Unit | Parameter value |
Parameter Item | - | XGC85 |
Max. rated lifting capacity for boom | (t) | 85 |
Max. rated lifting capacity for fixed jib | (t) | 12 |
Max. load moment | (t.m) | 341 |
Max. rated lifting capacity for boom single top | (t) | 8 |
Boom length | (m) | 13~58 |
Boom luffing angle | (°) | -3~80 |
Fixed jib length | (m) | 7~19 |
Max. dimension of single unit in transport state(L×W×H) | (m) | 13.05×3.4×3.3 |
Fixed jib offset angle | (°) | 10,30 |
Max. single line speed for hoist mechanism | (m/min) | 120 |
Max. single line speed for boom luffing mechanism | (m/min) | 70 |
Max. slewing speed | (r/min) | 2 |
Max. travel speed | (km/h) | 0.9 |
Grade ability | (%) | 30 |
Mean ground pressure | (MPa) | 0.087 |
Model | - | SC9DK270G3/QSC8.3 |
Engine power | (kW) | 200/183 |
Emission | - | National III/ EU III |
Overall crane mass | (t) | 71.5(main hook, 13m boom) |
Max. mass of single unit in transport state | (t) | 41.2 |
