Hot Sale 25 Ton Truck Crane QY25K5D With Max Lifting Height 48.5m Cheap Factory Price Mobile 25t Cranes
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
New 60T Truck Crane XCT60/XCT60Y/XCT60M/XCT60L5
-
Hot Sale Truck Crane QY70KH 70t Mobile Crane With Truck in Azerbaijan
-
New 70T Truck Crane QY70KH/QY70KC-I/QY70KC
-
60ton Truck Mounted Mobile Crane XCT60L5 Tyre Mounted Crane
-
50ton Hydraulic Pickup Truck Lift Crane QY50KC
-
High Quality 20 Ton Overhead Truck Crane for Sale XCT20L5
Product Description
Products Description

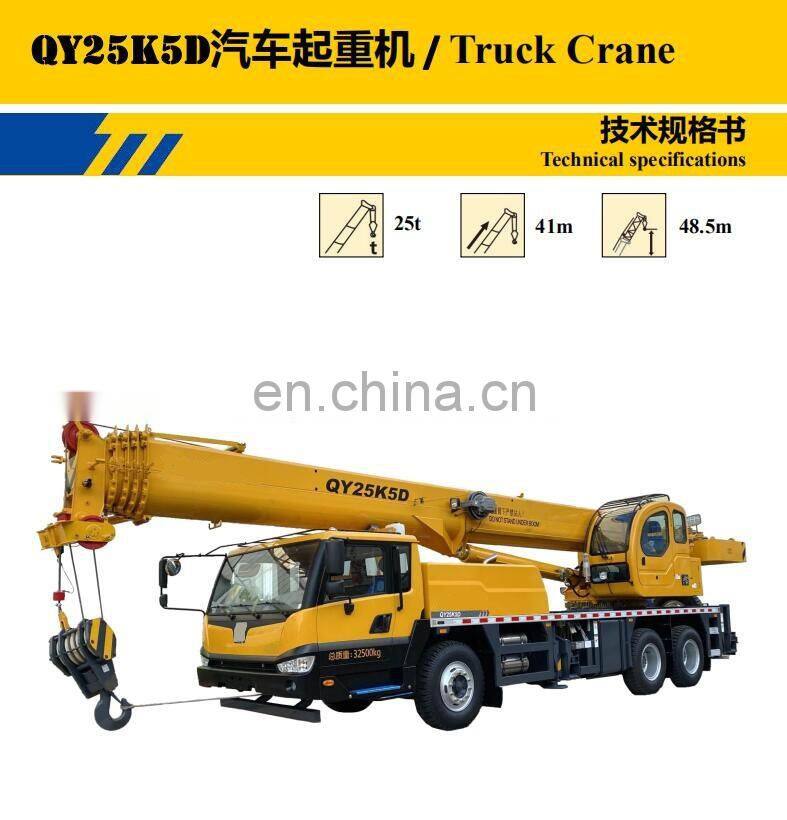

Hot sale 25 ton truck crane QY25K5D with max lifting height 48.5m cheap factory price mobile 25t cranes
5-section, U-shape cross section, welding structure. Boom length:10.5m~41m
Specification

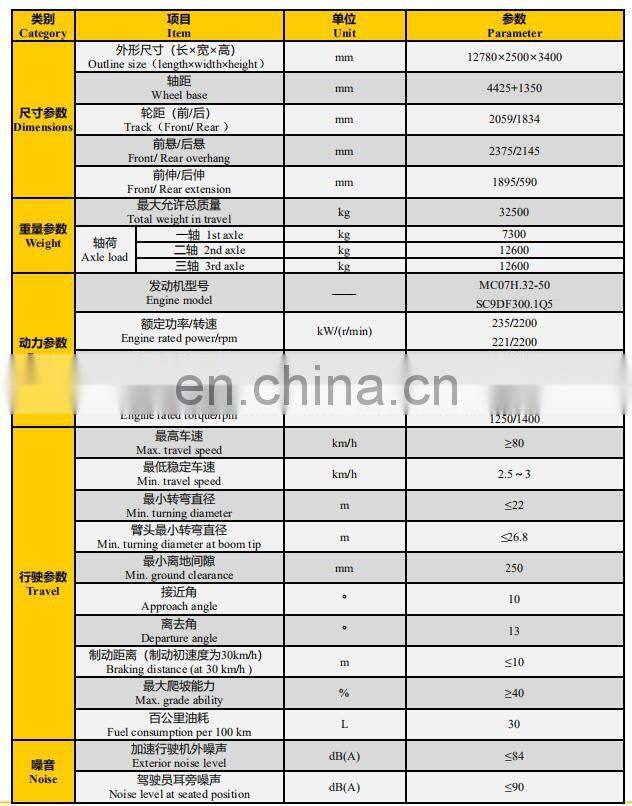

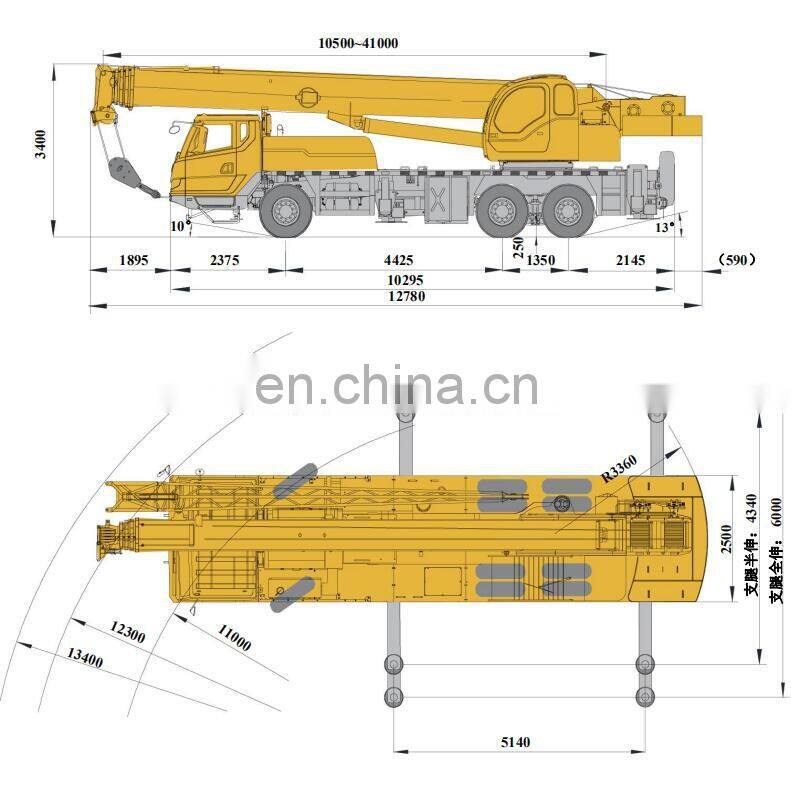

Dimension | Unit | QY25K5D | ||
Overall length | mm | 12780 | ||
Overall width | mm | 2500 | ||
Overall height | mm | 3400 | ||
Weight | ||||
Total weight in travel | kg | 32500 | ||
1st axle load | kg | 7300 | ||
2nd axle load | kg | 12600 | ||
3rd axle load | kg | 12600 | ||
Power of engine | ||||
Engine model | SC9DF300.1Q5 | |||
Engine rated power | kW/(r/min) | 221/2200 | ||
Engine rated torque | N.m/(r/min) | 1250/1400 | ||
Specifications in Travel | ||||
Max. travel speed | km/h | 80 | ||
Min. turning diameter | m | 22 | ||
Min. ground clearance | mm | 250 | ||
Approach angle | ° | 10 | ||
Departure angle | ° | 13 | ||
Max. grade ability | % | 40 | ||
Fuel consumption for 100km | L | ≈30 | ||

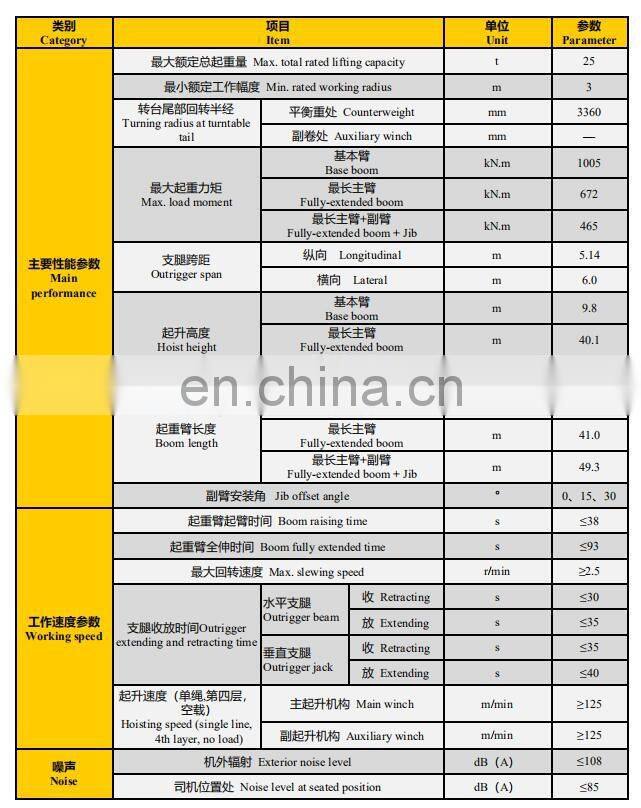

Main performance | ||||
Max. rated total lifting capacity | t | 25 | ||
Min. rated working radius | mm | 3000 | ||
Turning radius at counter-weight | m | 3.36 | ||
Max. lifting torque | kN.m | 1005 | ||
Base boom | m | 10.5 | ||
Fully extended boom | m | 41 | ||

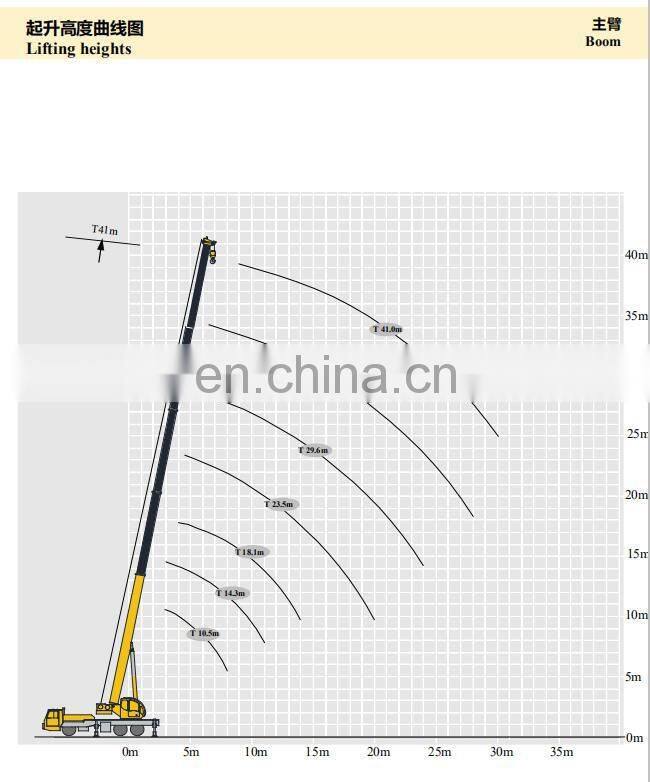

Fully extended boom+jib | m | 48.5 | ||
Longitudinal outrigger span | m | 5.14 | ||
Lateral outrigger span | m | 6 | ||
Working speed | ||||
Boom luffing time | s | 38 | ||
Boom full extension time | s | 93 | ||
Max. swing speed | r/min | 2.5 | ||
Max. speed of main winch (single rope) (no load) | m/min | 125 | ||
Max. speed of aux. winch (single rope) (no load) | m/min | 125 | ||
Details Images
