China 5ton Wheel Loader Excavator ZL50GV New Design

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

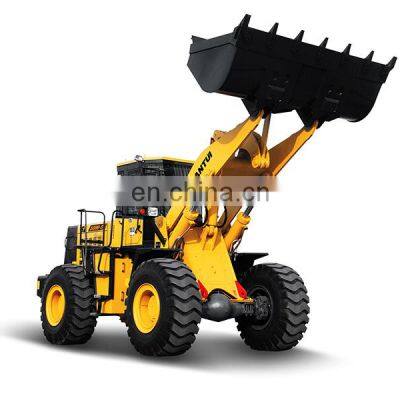

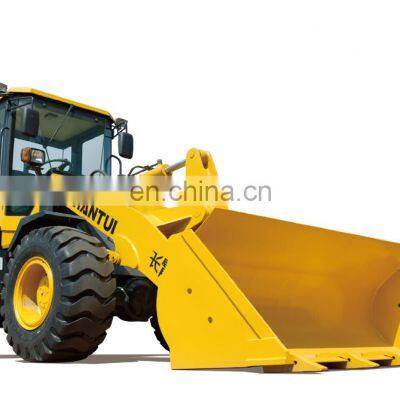

China 5ton wheel loader excavator ZL50GV new design

2021 New Design / 5.0T Load + 3.0m3 Bucket + Weichai Engine 162kw + Pilot Control + A/C

FEATURES

ZL50GN wheel loader is the latest developed product based on ZL50G , the most outstanding 3 generation loader .

It not only keeps high-end , heavy-loaded ,energy-saving ,but also optimizes electrical , hydraulic , radiator ,cabin , hood and other structures .

a. The working capacity is more powerful,

b. The reliability is greater,

c. The energy conservation is more prominent .

d. More comfortable and more convenient maintenance.

PARAMETERS

Item		Standard	Mini high-position discharge type	Large high-position discharge type	unit
Rated load		5000	5000	4500	kg
Bucket capacity		3	3	3	m³
Bucket width		3016	3016	3016	mm
Max. dumping clearance		3090	3500	3720	mm
Max. dumping reach		1130	1210	1220	mm
Lifting time		≤6	≤6	≤6	s
Total cycle time		≤11	≤11	≤11	s
Max. breakout force		170	145	165	kN
Max. tractive force		165±5	165±5	165±5	kN
Total weight		17.5	17.63	17.75	T
Articulation angle		±35			°
Min. turning radius (tire center)		6400			mm
gradeability		30			°
Min. ground clearance		450			mm
Axle base		3300			mm
Wheel base		2250			mm
Driving speed	Forward	1^st 0~11.5 2^nd 0~38			km/h
	backward	0~16.5			km/h
Engine model		WD10G220E23
Rated power		162			KW
Rated speed		2000			r/min
Tire size		23.5-25-16PR
Total dimensions ( LWH)		8165×3016×3485	8515×3016×3485	8780×3016×3485	mm
