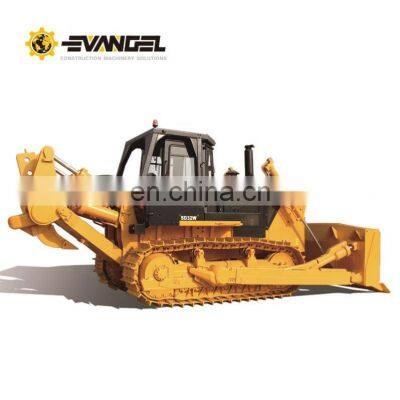

Shantui 320hp dozer SD32 series NTA855-C360S10 engine crawler bulldozer SD32W with rock blade

Item

Unit

Parameter

Note

Model

/

/

SD32 Bulldozer

Dimensions

Operating Weight

Kg

37200

(Without ripper)

Ground Connection Length

mm

3210

Overall Length

mm

6880

Overall Width

mm

4130

Overall Height

mm

3725

Track Center Distance

mm

2140

Track Shoe Width

mm

560

Min. Ground Clearance

mm

500

Min. Turning Radius

mm

3800

Ground Pressure

MPa

0.105

Engine

Model

/

Cum-mins NTA855-C360S10

Type

/

Superchargd, intercooled, in-line, four-stroke

Cylinder Number-Cylinder Diameter× Stroke

/

6-139.7×152.4mm

Piston Swept Volume

L

14.01

Rated Power

kw

235(320Horse Power)

Rated Revs

rpm

2000

Speed

Forward

First Gear

km/h

0-3.6

Second Gear

km/h

0-6.6

Third Gear

km/h

0-11.5

Reverse

First Gear

km/h

0-4.4

Second Gear

km/h

0-7.8

Third Gear

km/h

0-13.5

KN

318

Gradeability

°

30o

Working Device (Blade, ripper)

Type

/

Straight Tilt Blade/Semi-U Blade/Angle Blade

Blade Capacity

m3

10/11.7/9.8

Blade Length

mm

4130/4030/5000

Blade Height

mm

1590/1720/1140

Max. Blade Lifting Height

mm

1560

Max. Blade Cutting Depth

mm

560

Blade Weight

Kg

4500(Straight Tilt Blade)

Max. Blade Tilt

mm

1000(Straight Tilt Blade)

Productivity(40m haul distance)

m3/h

446

Straight Tilt Blade

Three-tooth ripper Dimensions(L×W×H)

mm

2510×2500×2190

Three-tooth ripper Weight

Kg

4800

Including 1000kg oil cylinder

Max. Scarifying Depth

mm

542

Lifting Height

mm

883

Standard Cutting Angle

35o -63o stepless adjustment in this range

Single-tooth ripper Dimensions(L×W×H)

mm

2870×1290×2140

Single-tooth ripper Weight

Kg

42600

Including 1000kg oil cylinder

Max. Scarifying Depth

mm

1250

Lifting Height

mm

965

Standard Cutting Angle

35o -63o stepless adjustment in this range
