China Amphibious Excavator 20 Ton Swamp Excavator HK260SD for Sale

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

China Amphibious Excavator 20 ton Swamp Excavator HK260SD for Sale

Product Description

Specification:

1) Higher efficiency,

2) Lower fuel consumption

3) Operation comfort,

4) With wide applications in various narrow environments such as forest, farm & indoors.

Parameter:

Specification
Operating weight	26000kg
Standard bucket capacity	0.9m³
Boom length	5680
Arm length	2912
Chains	2
Engine:
Model	6BG1
Type	inter-cooled turbo
Power	114kW/2100rpm
Max.torque	629N m / 1600rpm
No.of cylindar	6
Displacement	6.494L
Hydraulic system
Main pump
Type	Variable plunger pump
Max.displacement	2X107cm3/r
Max.flow	20L/min
Working pressure	32Mpa
Hydraulic motor
Slew motor	fixed plunger
Travel motor	variable plunger
Performance
Slew speed	11rpm
Min.slew radius	3554mm
Max.travel speed high/low	5.4/3.2km/h
Gradeability	70%
Tracktive effort	279.8kN
Max.digging force of bucket	98.3kN
Max.digging force of arm	63.5kN
Ground pressure	0.14kg/cm2
Oil tank capacity
Fuel tank capacity	376L
Hydraulic tank capacity	219L

Item
Length of pontoon	8083
Ground clearance of platform	2002
Overall height	3826
Boom transport height	3390
Overall length	10502
Rear swing radius	2800
Track gauge	3643
Overall width	5133
Width of pontoon	1490
Min.ground clearance	1192
Height of pontoon	1718
Width of upper structure	2867
Ground length	4787

Item
Max.digging reach	9925
Max.digging reach on ground	9540
Max.digging depth	5704
Max.vertical digging depth	5125
Max.digging height	10577
Max.dumping height	7810
Min.front slewing radius	3554

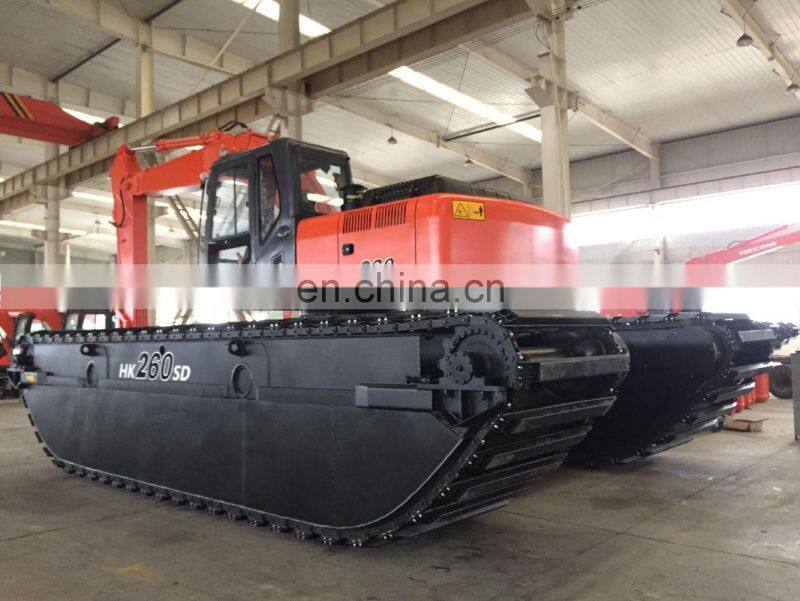

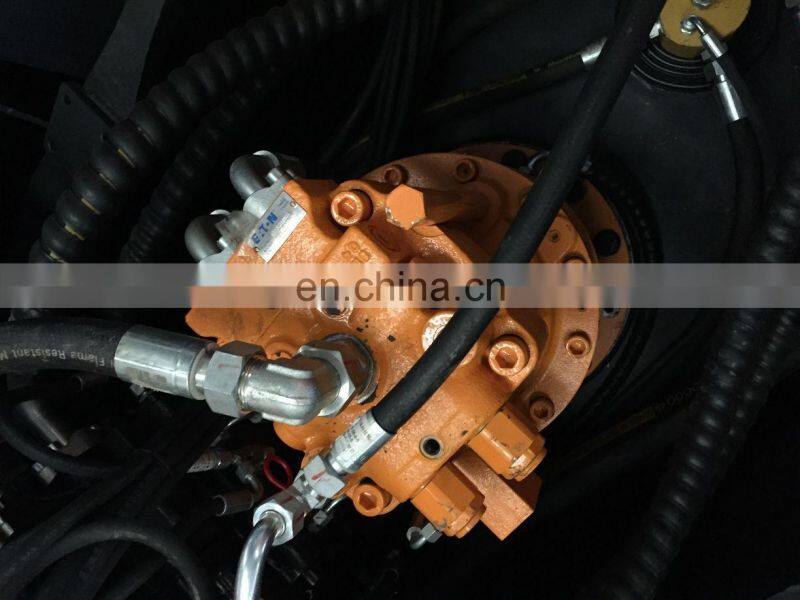

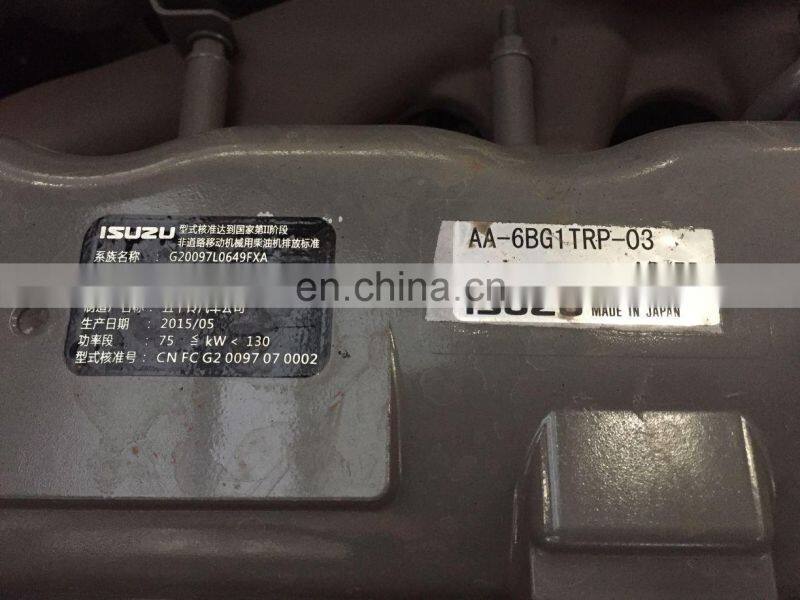

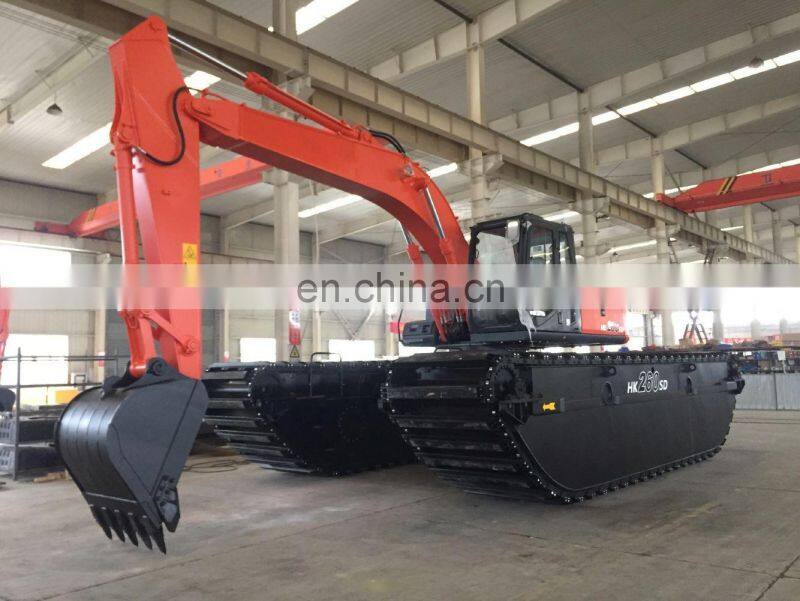

Pictures of product:

contact

Contact person:Jin Zou

Mobile/Whatspp/Wechat/Skype:+86 17707042688

Email:jin at
