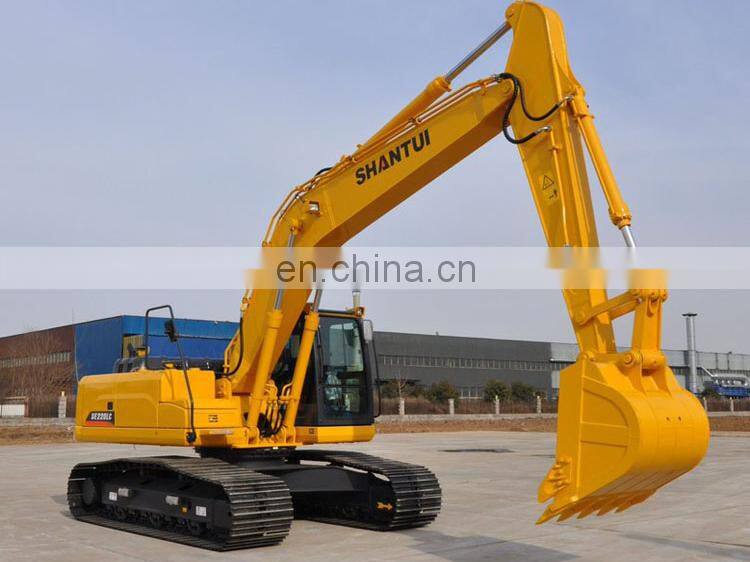

2022 Evangel ShanTui Customizable SE500LC Chinese New Design 50 Ton Crawler Excavator

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

ShanTui Customizable SE500LC Chinese New Design 50 Ton Crawler Excavator

Contacts

Candice Ouyang

Wechat:18779902186
Mobile,Whatsapp: +86-187-7990-2186

QQ: 2459419509

Features

Quick and convenient maintenances

The fuel filter element, engine oil filter element, and filter element are centrally arranged so that all maintenances and replacements can be completed from on same position. The high-precision fuel filter element features high water capacity and powerful fuel adaptability and the electric fuel pumping function is provided for automatic fuel refilling and easy start. With pneumatic struts, the engine hood can be opened and closed easily to realize handy opening, large opening angle, and easy maintenances and repairs.The radiator features convenient maintenances and easy accessibility.

The filling of coolant and the replacement of air filter element are easily accessible to ease the checking and maintenances.The tandem radiator effectively avoids the overheating and eases the cleaning.

High-end system configuration

The high-adaptability turbocharged engine features high torque, high altitude adaptability, and high fuel adaptability. The high-end reliable hydraulic system configuration reduces the energy loss and realizes high efficiency and energy-saving and good motion coordination.

Parameters

Comparative item	SE500LC (Standard version)
Overall dimensions
Overall length (mm)	12240
Ground length (During transport) (mm)	7505
Overall height (To the top of boom) (mm)	3890
Overall width (mm)	3715
Overall height (To top of cab) (mm)	3345
Ground clearance of counterweight (mm)	1390
Minimum ground clearance (mm)	575
Tail turning radius (mm)	3840
Track length (mm)	5475
Track gauge (mm)	2760
Track width (mm)	3360
Standard track shoe width (mm)	600
Turntable width (mm)	3530
Distance from slewing center to tail (mm)	3800
Working range
Maximum digging height (mm)	10435
Maximum dumping height (mm)	7590
Maximum digging depth (mm)	6630
Maximum vertical digging depth (mm)	4850
Maximum digging distance (mm)	10975
Maximum digging distance at ground level (mm)	10745
Working device minimum turning radius (mm)	4370
Engine
Model	QSM11(China III)
Displacement (L)	10.8
Rated power (kW/rpm)	280/2000
Hydraulic system
Type of hydraulic pump	Variable displacement duplex plunger pump
Rated working flow (L/min)	2x392
Bucket
Bucket capacity (m³)	2.5~3.0(2.5)
Swing system
Maximum swing speed (r/min)	9
Brake type	Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN)	285
Bucket digging force (KN)	305
Operating weight and ground pressure
Operating weight (kg)	49500
Ground pressure (kPa)	86
Traveling system
Traveling motor	Axial variable displacement plunger motor
Traveling speed (km/h)	3.3/5.6
Traction force (KN)	364
Gradeability	70%(35°)
Tank capacity
Fuel tank capacity (L)	720
Cooling system (L)	24
Engine oil capacity (L)	35
Hydraulic oil tank/system capacity (L)	300/460
