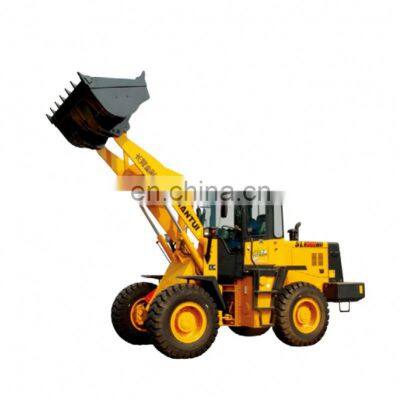

2022 Evangel 4X4 Backhoe Shantui SL50WN Wheel Loader Bangladesh 5 Ton Popular Wheel Loader In Algeria

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

China Famous Brand SHANTUI 5 Ton Four Wheel Loader SL50WN at Competitive Price for Sale

Contacts

Candice Ouyang

Wechat:18779902186
Mobile,Whatsapp: +86-187-7990-2186

QQ: 2459419509

Features

Convenient maintenances

The upturning engine hood side door features large opening and convenient services and maintenances.
The externally directed lubrication for both front and rear frames achieves easier maintenances and the grease nozzles are installed with dust caps to realize higher cleanliness.

De-noising

The low-speed engine and new cab are applied and the engine hood is installed with additional sound-insulating material to further reduce the engine noise to 85dB, which is far lower than the current noise standard (89dB) and is superior to the 86dB requirement of the national mandatory standard implemented in 2015.

Moderate Wheelbase

It guarantees outstanding site adaptability and flexibility and strong operating stability and can handle common heavy-load operations with ease.

Transmission system

Shantui’s self-made twin-turbine torque converter, planetary transmission, and drive axle feature good power match, high drive efficiency, strong overload capacity, high quality, and long life. The new high-capacity blade-grid twin-turbine torque converter YJSW315-8A and the planetary transmission ZL50D-2 guarantee high drive efficiency. The all-new working device design improves the boom hinge points and the working device mechanism and increase the boom lifting force by 7%, featuring excellent horizontal movement performance and automatic leveling performance and more reasonable dumping height and reach.

Power System

Weichai new generation Blue Engine II energy-saving engine WD10G220E23 conforms to China-II emission regulation and reduces the failure rate by 30% and saves the fuel by >10%.

Parameters

Parameter name	SL50WN
Performance parameters
Operating weight (Kg)	17100
Maximum dumping height (mm)	3330 (Extended boom)3700 (Long Boom)
Dumping reach (mm)	1230 (Extended boom)1270 (Long Boom)
Maximum breakout force (kN)	≥185
Total cycle time (s)	10.6
Engine
Engine model	WD10
Rated power/rated speed (kW/rpm)	162/2000
Overall dimensions
Overall dimensions of machine (mm)	802530263410
Driving performance
Forward speed (km/h)	F1:0-13,F2:0-38
Reversing speed (km/h)	R1:0-17
Chassis System
Wheelbase (mm)	3250
Tank capacity
Fuel tank (L)	220
Working device
Rated bucket capacity (m³)	3
Rated loading capacity (t)	5
