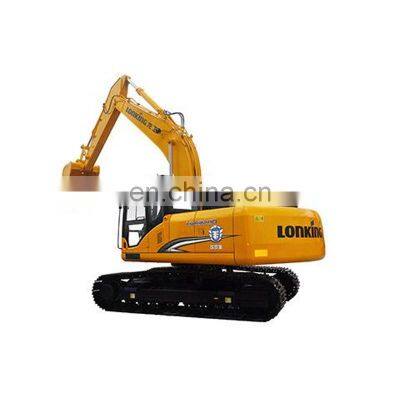

LG6060D CDM6060 china Lonking 6 ton mini tractor excavator for sale with low price

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

LG6060D CDM6060 china Lonking 6 ton mini tractor excavator for sale with low price

Contacts

Candice Ouyang

Wechat:18779902186
Mobile,Whatsapp: +86-187-7990-2186

QQ: 2459419509

Features

Three-stage air and fuel filtering system
Air-air inter cooling system with parallel radiator
Dual-pump double-circuit constant power control hydraulic system
Multi-purpose true color monitor with large screen
No frame cab glasses to enlarge the visual field
High performance and healthy A/C allows the air circulate
Comfortable suspension seat with hydraulic damper
Safe and comfortable cabin with 2.7m³ inner space
X-shaped undercarriage with heavy-duty box structure

Free maintenance track with non- lubricated pins

Heavy-duty boom and arm with high strength low alloy structural steels

Parameters

Specifications		CDM6065	CDM6065E
Engine	Model	Yan-mar 4TNV94L (Stage Ⅱ)	Yan-mar 4TNV98 (Stage ⅢA)
	Rated power	43.3 kW(58.8 hp) /2400 rpm	44 kW(58.6 hp) /2200 rpm
	Bore × Stroke	94 mm×110 mm	98 mm×110 mm
	Displacement	3.054 L	3.319 L
	Min. Fuel Consumption	220 g/kw.h
Operating weight	Summary	Operating weight:6050kg
		The operating weight includes the weight of 3000mm standard boom, 1550mm standard arm, 0.25m3 standard bucket,
		400mm track shoes, lubricating oil, coolant, the full diesel oil tank and the rest standard configuration units.
	Ground pressure	32 kPa
Fluid capacity	Fuel tank	134 L	95 L
	Cooling system	15 L
	Engine oil	10.5 L
	Swing drive unit	1.2 L
	Traveling gear	2×1 L
	Hydraulic oil tank	115 L
Swing motor	Summary	Plunger Type (with safety valve and closed type brake)
	Swing speed	11 rpm
Travel motor	Summary	Plunger Type (with safety valve and closed type brake)
	Taveling speed	2.5 -5.0 km/h
	Gradeability	35°(70%)
	Maximum Traction	58.3 kN
Traveling mechanism	Standard track shoe width	400 mm
	No. of track shoe	39 (each side)
	No. of carrier rollers	1 (each side)
	No. of track rollers	5 (each side)
Hydraulic system	Main pump	Axial variable plunger pump
	Max. flow of system	146 L/min	156.2 L/min
	Max. pressure of equipment	24.5 MPa
	Max. pressure	3.7 MPa
Operating equipment		Each machine action is under the control. The right lever controls the motion of boom and bucket
		while the left lever controls the arm motion and upper structure swing. The foot valve is provided
		with the lever joystick to control the machine traveling or turning by the foot or lever. The traveling gear
		shift adopts the solenoid switch control.
Electrical system		System voltage: 24 V
		Battery: 12 V, 85 A
