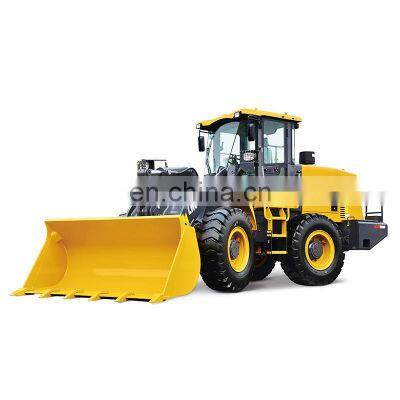

1cbm 2 ton mini wheel loader china lw200kv
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
small wheel loader 2 ton ltmg front end loader 2 ton 3 construction machinery 2 ton 920 wheel loader
-
wheel loader 2 ton articulated 2 ton 2.5 ton wheel loader ltmg front end loader 2 ton 3 ton
-
1m3 2 ton wheel loader china wheel loader mini tractor LW200KV ZL20
-
1m3 2 ton 4 wheel front end loader 2 ton wheel loader LW200KV
-
1m3 2 ton wheel loader china wheel loader mini tractors with front end loader wheel loader for sale loader attachments
-
1.8 ton 0.9m3 cheap mini loader mini front loader weel loaders LW180KV
Product Description
Products Description
The LW200KV tire loader is based on the comprehensive upgrade of product emission, reliability, comfort,
and convenience of maintenance. It further enhances the power of the whole machine, and the whole machine is more powerful and powerful.
The configuration of LW200KV serialized work equipment (standard arm, high unloading arm) and auxiliary equipment
(quick change bucket, fork, clamp clamp, clamp clamp, etc.) meet the requirements of different users' working conditions.
1. The model features a long wheelbase (2300mm) design to adapt to all types of overweight conditions, leading the industry instability.
2. Digging force (LW200KV digging force ≥58kN), strong breaking force, light weight of various materials.
3, fast and efficient, driving speed up to 28km / h, the industry's best.
4. People-oriented design ensures safety, reduces fatigue and creates an excellent operating environment for you.
5, can be configured hydraulic pilot, FOPS and ROPS cab, air conditioning, audio, etc., comfortable operation, driving safety.
6, international small package mainstream design, large arc cab glass, streamlined hood, fender, in line with the aesthetic
appearance of high-end users.
7, Engineering version of the small loader main engine, the national III emissions. The horsepower is strong and the torque
reserve coefficient is large.
It can meet the instantaneous overload requirements during the construction process and fully provide the power required for heavy-duty and heavy-duty operations.
Feature
1 Articulated frame, small turning radius
2 The bucket can be automatically leveled
3 Hydro mechanical drive
4 Low pressure wide base tyre
5 All round and wide view cab which can be disassembled
6 The 60KW LR4105G72D engine has strong power
7 The air cleaner adopts 3-stage filtration, which has good effect.
8 The power shift transmission has good reliability.
9 The cab has falling objects protection function.
10 Exhaust treatment system
and convenience of maintenance. It further enhances the power of the whole machine, and the whole machine is more powerful and powerful.
The configuration of LW200KV serialized work equipment (standard arm, high unloading arm) and auxiliary equipment
(quick change bucket, fork, clamp clamp, clamp clamp, etc.) meet the requirements of different users' working conditions.
1. The model features a long wheelbase (2300mm) design to adapt to all types of overweight conditions, leading the industry instability.
2. Digging force (LW200KV digging force ≥58kN), strong breaking force, light weight of various materials.
3, fast and efficient, driving speed up to 28km / h, the industry's best.
4. People-oriented design ensures safety, reduces fatigue and creates an excellent operating environment for you.
5, can be configured hydraulic pilot, FOPS and ROPS cab, air conditioning, audio, etc., comfortable operation, driving safety.
6, international small package mainstream design, large arc cab glass, streamlined hood, fender, in line with the aesthetic
appearance of high-end users.
7, Engineering version of the small loader main engine, the national III emissions. The horsepower is strong and the torque
reserve coefficient is large.
It can meet the instantaneous overload requirements during the construction process and fully provide the power required for heavy-duty and heavy-duty operations.
Feature
1 Articulated frame, small turning radius
2 The bucket can be automatically leveled
3 Hydro mechanical drive
4 Low pressure wide base tyre
5 All round and wide view cab which can be disassembled
6 The 60KW LR4105G72D engine has strong power
7 The air cleaner adopts 3-stage filtration, which has good effect.
8 The power shift transmission has good reliability.
9 The cab has falling objects protection function.
10 Exhaust treatment system
Specification
Description | Specification | Unit | ||
Rated operating load | 2000 | kg | ||
Bucket capacity | 1 | m³ | ||
Machine weight | 6400 | kg | ||
Dump clearance at maximum lift | 2580 | mm | ||
Reach at maximum lift | 960 | mm | ||
Wheel base | 2300 | mm | ||
Tread | 1490 | mm | ||
Max. breakout force | 56 | Kn | ||
Max. horse power | 45 | Kn | ||
Hydraulic cycle time-raise | 5 | s | ||
Total hydraulic cycle time | 9 | s | ||
Min. circle radius over outside bucket | 5100 | mm | ||
Min. turning radius over tyres | 4450 | mm | ||
Articulation angle | 35 | ° | ||
Gradeability | 28 | ° | ||
Tyre size | 16/70-20 | |||
Overall machine dimension LxWxH | 5950x1960x2550 | mm | ||
Engine Model | LR4B3ZU-G73X3QR-U3 | |||
Rated power/Speed | 66.2/2400 | Kw/rpm | ||
Travel speed | I-gear(F/R) | 10 | km/h | |
II-gear(F/R) | 28 | km/h | ||
