1.8 M^3 Mini Self Loading Concrete Mixer Truck Price
- T/T Credit Card

You May Like
-


Mobile Concrete Mixer Truck 2.0m3 With Hydraulic Self-loading System
 -


New Condition 3.0 Cbm Self-loading Mobile Concrete Mixer Truck
 -


2.0 CBM Self Loading Mobile Portable Concrete Mixer Truck and 2ton 3ton 5ton 7ton Dumper Truck for Construction Industry
 -


Agricultural Mushroom, Vegetable Galvanized Steel Pipe With Plastic Film Greenhouse
 -


2019 Hot Newest Low Price Small River Sand Pumping Machine
 -


2022 Hot Newest Small 1200m3 Cutter Suction Dredger Manufacturer Sand Pump Suction Dredger Sand Dredging High Gold Recovery Rate

Product Description

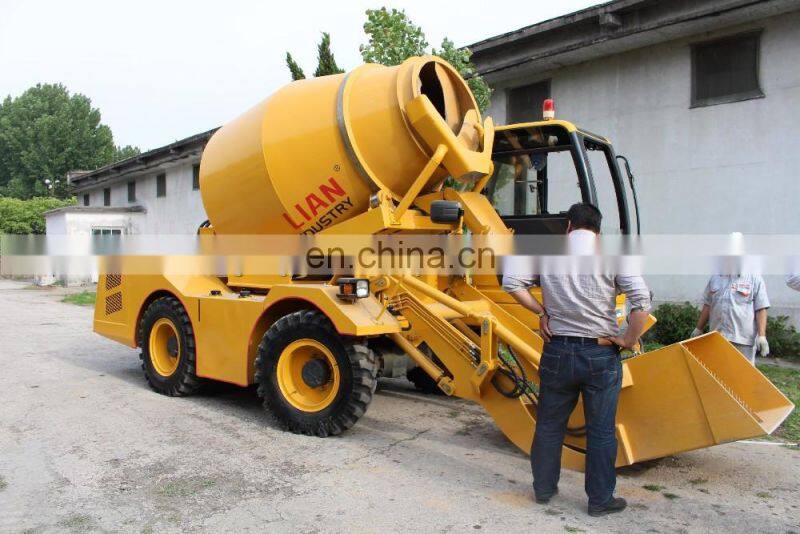

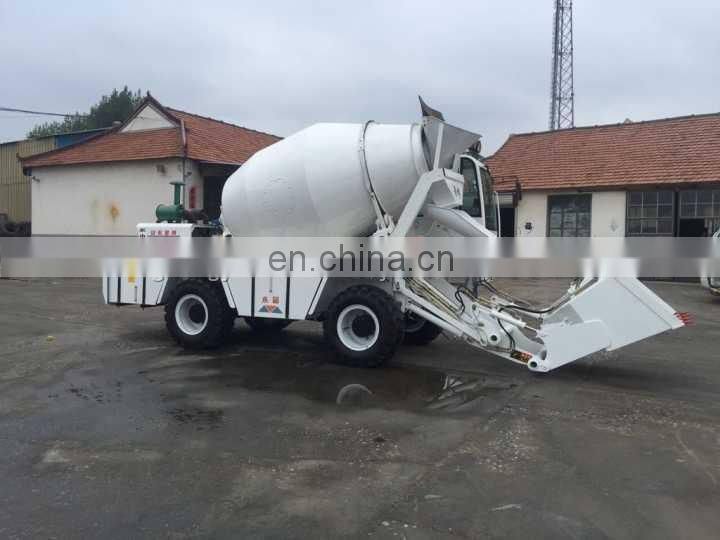

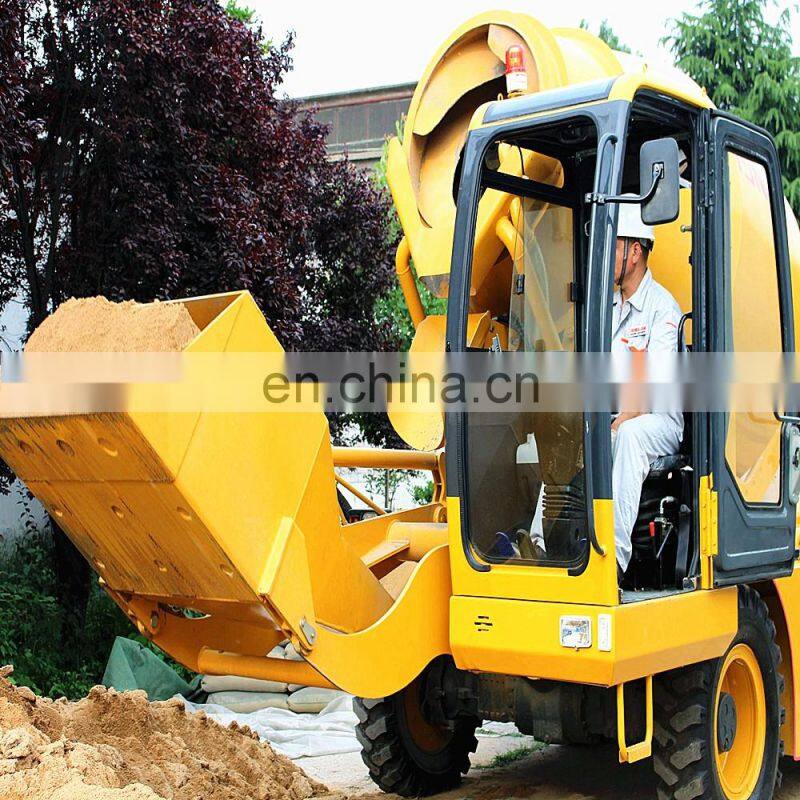

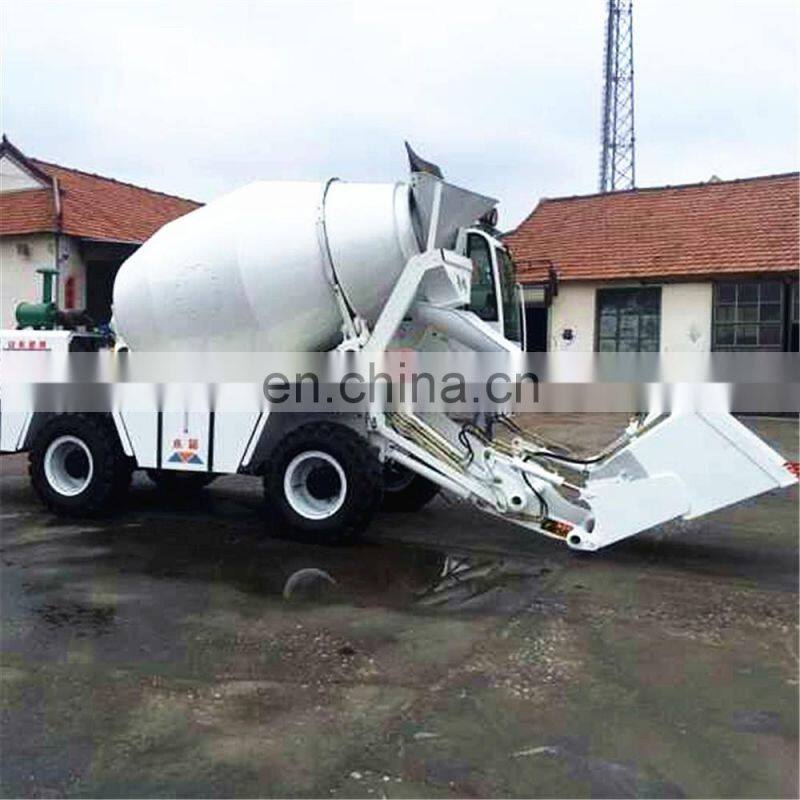

1.8 m^3 Mini Self Loading Concrete Mixer Truck price
Italy leading design,automatic feeding mixing system
Simple and convenient operation
High efficiency output ,save time and effort,cost saving
Mixing tanker and loading vehicle combo perfect combination
Warranty 12 months,perfect after-sales service
1.0 m3  Concrete Mixer Truck  | ||||
Diesel engine  | Model  | YN27GBZ  | ||
Total displacement cylinder number  | 2700ml--4 cylinder inline  | |||
Injection  |  Direct injection ,mechanical control  | |||
Cooling system  | Water--cooling,Dry air filter  | |||
Max power  | 55kw (75 hp)  | |||
Max torque  | 237nm@2000 r minute  | |||
Electrical system  | Alternator  | 28V--500WA  (18A)  | ||
Battery  | 2*12V--60AH (272A)  | |||
Steering System  | 2 wheel steering  | the steering is assisted by a double displacement load-sensing power steering system on 2 steering wheels  | ||
4*4 Four-wheel drive  | Hydraulic torque converter,open hydraulic gear pump,reverse gear control device  | Control "working speed"and "moving speed"  | ||
Speed:        2 forward gears       2 reverse gears  | The first gear  | 0--7kmhour        0--7kmhour  | ||
The second gear  | 7--20kmhour       7--20kmhour  | |||
Axle And Tires  | Front axle, steering ,Isuzu Axle  | the axle is equipped with a planet reduction gear  | ||
Rear axle ,Swing (  ± 28° )  | the axle is equipped with a planet reduction gear  | |||
Tyre  | ...12-16.5-12PR  | |||
Max load  | 2540kg,450kPa  | |||
 RIM  | 9 75  | |||
Brake  | The internal hub-type travel brakes and emergency brakes act on 4 wheels,using a small servo pump on the dual loop.  | Negative pressure type parking brake, the front axle is equipped with an internal hub.  | ||
Water Supply System  | "Self-priming" 24v large capacity pump  | with fast absorption function.  | ||
Max flow  |  ............90Lminute  | |||
Total capacity of a water tank  | ............175L  | |||
Mixing And Unloading  | Double cone cylinder with double spiral stirring screw and middle convex bottom  | |||
Drum geometric capacity  |  ..........2200L  | |||
Drum rotation speed  | ..........15rminute  | |||
Concrete Production  | ..........1.0cbmtank  | |||







Main Features
1) The water intake of the cylinder is controlled by the electromagnetic flow meter and the water intake reading on the display screen of the operating water
2) Sit on the side of the driver's seat to enable the pump
3) Equipped with high pressure pump to flush vehicle
4) The rotation of the roller is achieved by the cycloidal hydraulic motor of the open circuit of the gear pump
5) The unload chute is tilted by a manually adjustable handle
6) Removable chute can be guaranteed to be unloaded directly through the hopper
7) As a standard configuration , 1 chute extension is provided
8) Removable chute can be guaranteed to be unloaded directly through the hopper
9) As a standard configuration , 2 chute extensions are provided


WEIFANG MAP IMPORT&EXPORT CO.,LTD.
is a professional manufacture of wheel loaders,dumpers,tractors,implements and whole solution supplier specializing in construction machinery and agricultural equipment.
We can also design new products according to customer and market demand.We have more than 10 years experiences in professional manufacturing.And successfully sold equipment to around 40 countries and areas.We sincerely welcome customers and friends all over the world to visit our factory and cooperate with us in future.

As a factory, we have the best price and all the technical support.
You can visit our factory any time.

We are real factory supplier for over 12 years,we can training how to instal the machine, training how to use the machine.

For serious problems, we will send our engineers to your area for maintenance.

Fixed with wireline
We use wireline fixed it to ensure the safety of machinery during transportation.

One container can load three machine
A container can store 2-3 machines to save you money.
We will accurately calculate the space to save freight for you.
1.Why chose you?
a.We are manufacturer, our products have excellent quality and competitive price.
b.We have good after-sales services,you can find us at per 24 hours.
c.Strictly testing and checking before shipping.
2.How to deal the order?
a.Payment terms: T/T 30% as deposit, and 70% before delivery.
b.We'll show you the photos of the products and packages before you pay the balance.
3.Are you interested in dealership with local company?
Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.
4.What is your warranty policy?
We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
5.How do you make our business long-term and good relationship?
a.We keep good quality and competitive price to ensure our customers benefit.
b.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
