Product Description
Map farm/construction/mining compact earth moving china made wheel loader
Product Description
TYPE | SPECIFICATION |
Model | ChangChai 390 |
Engine type | In-line arrangement, water-cooled, 3 cylinders diesel Engine |
Rated Power | 25 kw |
Rated Speed | 2400 r/min |
Min.ful consumption | 269 g/kw.h |
Bucket Capacity | 0.35 m3 |
Bucket type | Heavy-duty bolt on teeth |
Rated Load | 600 kg-800KG |
Total Weight | 2000 kg |
Overall Length | 3900 mm |
Overall Height | 2500 mm |
Overall Width | 1150 mm |
Max. discharge height | 2200 mm |
Wheel base | 1620 mm |
Tread | 1160 mm |
Steering System | Articulated Frame with Hydraulic steering |
Min Turning Radius | 3000 mm |
Transmission | Hydraulic |
Service Brake | Four Wheel Hydraulic spread-shoed brake |
Parking Brake | Hand operated |
Tyre | 750-16 |
Performance and characteristic:
(1)Rops and Fops (The cabin made by Double-layer 1.4 mm steel plate, with strong steel frames inside )
(2) E 3 approved glass with EU certification.
(3) The wider arm and the big hydrauic oil lifting and dumping cylinder.
(4) Steering pumps, priority valve ,relief valve and other hydraulic parts are best quality made in China
(5) Wheel loader with CE Certificate
(6) Euro iii Engine optional
(7) Multi-function
(8) Wheel loader with Joystick operation .Smooth operation.
(9) Wheel loader with Quick Hitch Or Europe quick hitch
(2) E 3 approved glass with EU certification.
(3) The wider arm and the big hydrauic oil lifting and dumping cylinder.
(4) Steering pumps, priority valve ,relief valve and other hydraulic parts are best quality made in China
(5) Wheel loader with CE Certificate
(6) Euro iii Engine optional
(7) Multi-function
(8) Wheel loader with Joystick operation .Smooth operation.
(9) Wheel loader with Quick Hitch Or Europe quick hitch
DETAIL SHOW TIME
Different attachments avaliable
Bucket Capacity:1.2 CBM. Length:1800 mm.
Sweeper
Thicknened stone bucket
Enlarged Snow Bucket

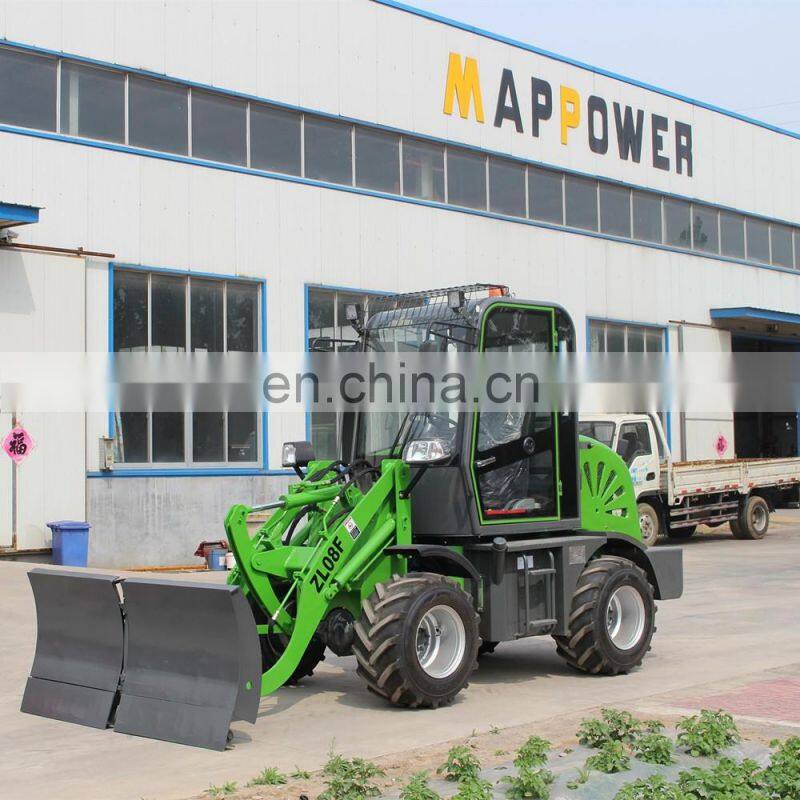

Snow Blade,Working Lenght:2200
V-Shape Snow Blade,Angle, Direction Adjustable.Hydr.Turn 30º
Hydraulic Adjustable Pallet Fork
Snow Blower,working capacity:40-50T/Hour.
Wood Grapple-Stronger Vision
4 In 1 Bucket,Have The Function Of Push, Clip, Flat, Shovel.
Front Hoe Digger.
Rotary Auger,Length And Diameter Could Customized.
Similar Products
Company profile and development
Weifang Map Import & Export Co., Ltd. focuses on quality construction machinery, agricultural equipment, has been in Weifang,China for 14 years.
We are Verified Supplier.Now it has become one of the main suppliers of construction machinery.
We produce field tippers, tractor front-end loaders, disc mowers, backhoe loaders, concrete mixers, etc.All the machines are guaranteed for one year.
We can supply you with dump wheel loaders and construction machinery accessories.
We produce field tippers, tractor front-end loaders, disc mowers, backhoe loaders, concrete mixers, etc.All the machines are guaranteed for one year.
We can supply you with dump wheel loaders and construction machinery accessories.
The production time is 25-30 days after receiving your deposit. We accept OEM customization.
For some new customers, please do not worry about the problem of cooperation, we willguide you to correctly cooperate with us. That's easy.
We can arrange sea freight for you. You can pick up the machines at the local port in your country.
We accept online business guaranteed by Alibaba transactions. You can pay us by credit card online.
We accept online business guaranteed by Alibaba transactions. You can pay us by credit card online.
Customer
FAQ
1.How can I place order?1.How can I place order?
A: You can contact us by email about your order details, or place order on line.
2.How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance
3. Are you factory supplier?
A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers
4.How many tons site dumper do you produce ?
A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100.
5. Which brand engine do you have for site dumpers?
A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional.
6. What's the order procedure?
A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you.
More details please ask us online or send inquiry to us,we will answer first time.
