Short Transport Vehicle Large FCY100 Loading Capacity 10 Tons Pickup Truck Looking for Agent Representative

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

10 tons hydraulic dumper

As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on.

Product Advantages

There have two different model of 10Ton site dumper.

FCY100 normal model,FCY100R which the bucket can have a 180 degree rotate in any direction.

FCY100---10Ton site dumper Normal model
	Mini dumper 10 ton,4*4drive,Hydraulic steering,can unload materials smoothly by strong hydraulic pressure unloading syst As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc,. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on. . Low walking speed,short-distance transport of bulk materials. Easy operation,small turning radius can be used in a narrow environment. Off road wider types as option ,can work in muddy and bumpy roads.

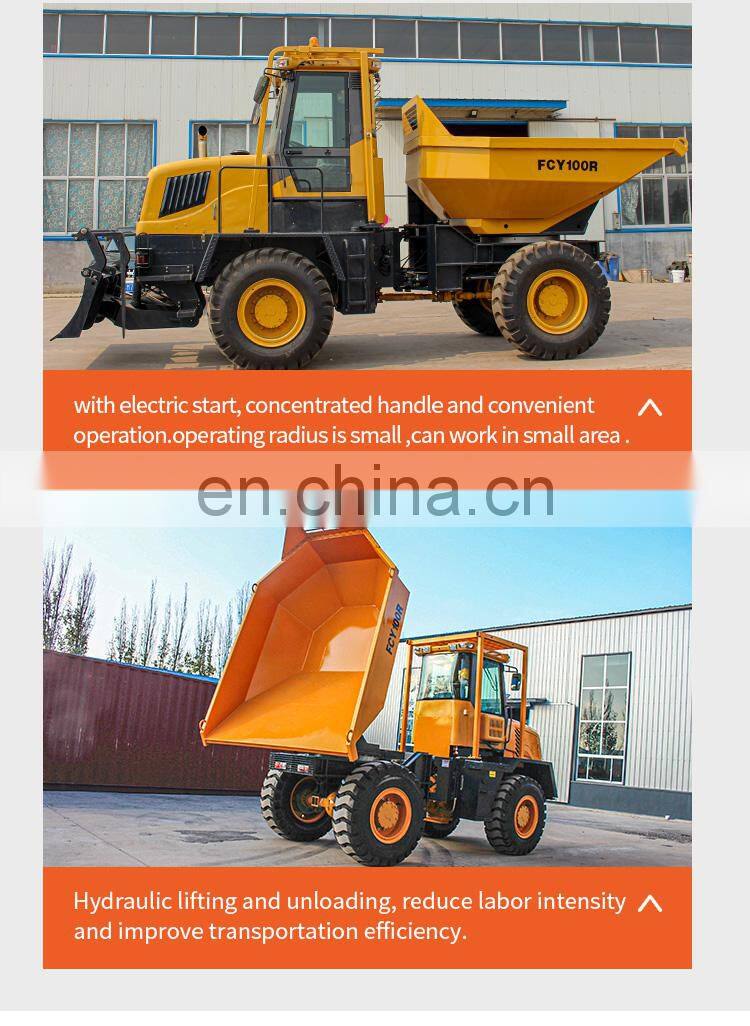

FCY100R---10Ton site dumper with 180 rotate burket
	FCY100R Dumper is the based on the design of FCY100 can move 180 rotate bucket in any direction. DEUTZ engine optional Hydraulic steering, 4x4 drive. With ROPS With combined control panel. Off road wider tyres as option, can work in muddy and bumpy roads. Low walking speed, short-distance transport of bulk materials.

Product Description

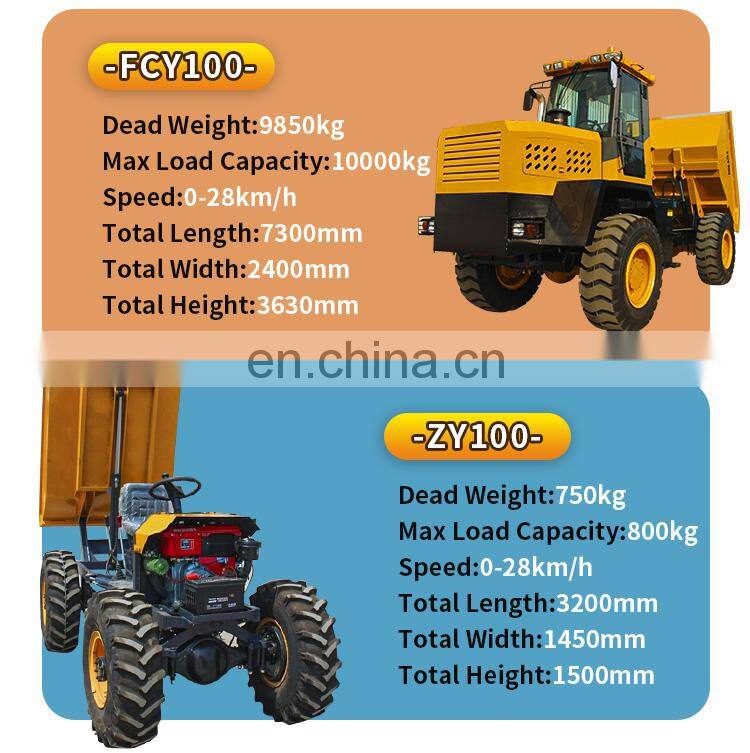

NO.

Item

Specifications

Payload

10000kg

Operating weight

9850 kg

Hopper capacity

4.5 m3

Maximum speed

25-30 km/h

Handbrake available on grade

25%

Max grade ability

25%

Distance of road after brake

≤2.5m with load and speed 10km/h

Minimum turn radius

4.5 m

Ground clearance

248 mm

10.

Noise level

≤106 db(A)

11.

Loading discharge angle

48.40

12.

Time of discharge

8 s

13.

Hydraulic pressure

16 Mpa

14.

Wheel base

2000 mm

15.

Wheel tread

1580 mm

16.

Engine power

92KW OR 97KW

17.

Dimensions (L x W x H)

7300X2400X3630MM

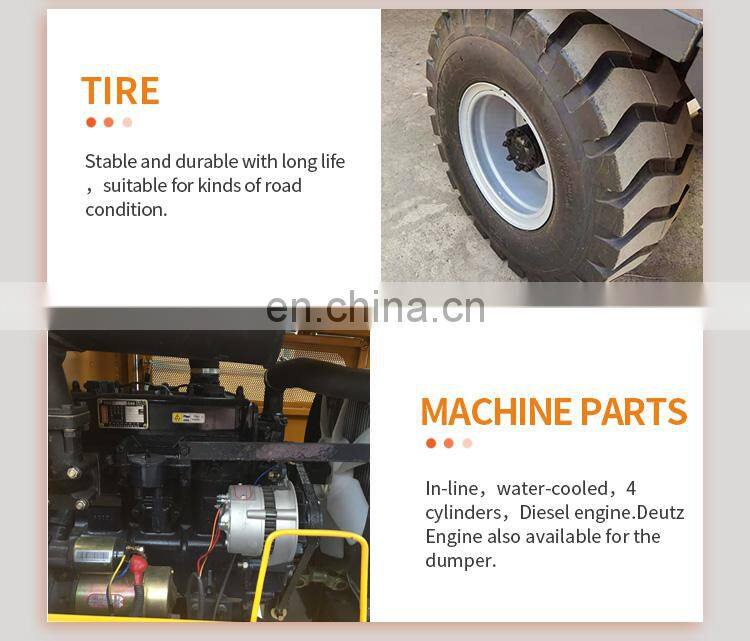

B. Engine

Model/Maker

DEUTZ TD226B or CUMMINS engine

Type

Diesel 6 cylinders direct fuel injection, water cooled

Rated Power

92KW or 97KW

Speed

2400 R/Min

C. Drive System

Brand

JINGYI

Transmission:

Power shift 4Forward and 2 reverse gears

Drive shaft:

Tubular-type, open-type, rigid needle-bearing universal joint

Driving axle:

Main drive type: single-stage hyperbolical bevel gear dive

D. Frame

Frame:

Channel steel welding type, two-section articulated connection

Tire:

23.5/70-25

E. Steering system

1.	Type	Control by wheel, full hydraulic system, two cylinders double acting.
2.	Angle steering each direction	± 350

F. Bake system

Operating brake

Hydraulic shoe system, four-wheel brake

Handbrake

mechanically-pirated central sport-type disc

G. Hydraulic system

Hydraulic pump:

Gear pump

H. Electric system

Battery

24V

FAQ

1.Why chose you?

a.We are manufacturer, our products have excellent quality and competitive price.

b.We have good after-sales services,you can find us at per 24 hours.

c.Strictly testing and checking before shipping.

2.How to deal the order?

a.Payment terms: T/T 30% as deposit, and 70% before delivery.

b.We'll show you the photos of the products and packages before you pay the balance.

3.Are you interested in dealership with local company?

Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.

4.What is your warranty policy?

We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.

5.How do you make our business long-term and good relationship?

a.We keep good quality and competitive price to ensure our customers benefit.

b.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

6.What are the hot products of your company?


site dumper	wheel loader	Automobile crane

Excavator	Backhoe loader	forklift
