Chinese Cheap Price Hydraulic Mini FCY30 3 Ton Earth Transfer Site Dumper for Constructed
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
MAP China 3ton Hydraulic Constructed Site Dumper Truck for Sale
-
Building Construction Works Use Site Dumper FCY30R 3 Ton Dumper Truck With 180 Degree Rotating Bucket
-
Chinese Factory Price 2ton Compact Mini Dumper Hydraulic With Deutz Engine
-
Low Price Hot Sale MAP 2 Ton Front Tipping Hydraulic FCY20 4X4 Articulated Garden Mini Wheel Dumper Trucks Barrow Dumper
-
Agricultural, Mining Construction Use Diesel Engine FCY70 3.0m3 Articulating Mini Dumper for Sale Loading Capacity
-
Cheap Construction Equipment 10 Tons 4x4 FCY100 Hydraulic Tipping New Transport Articulated Dumper Trucks Made in China
Product Description

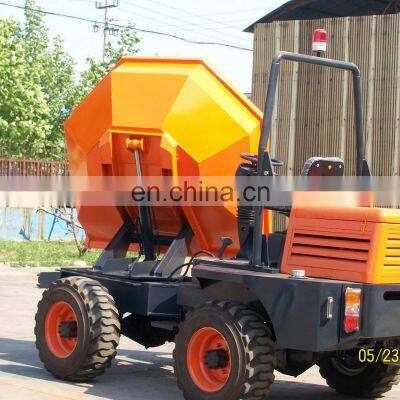

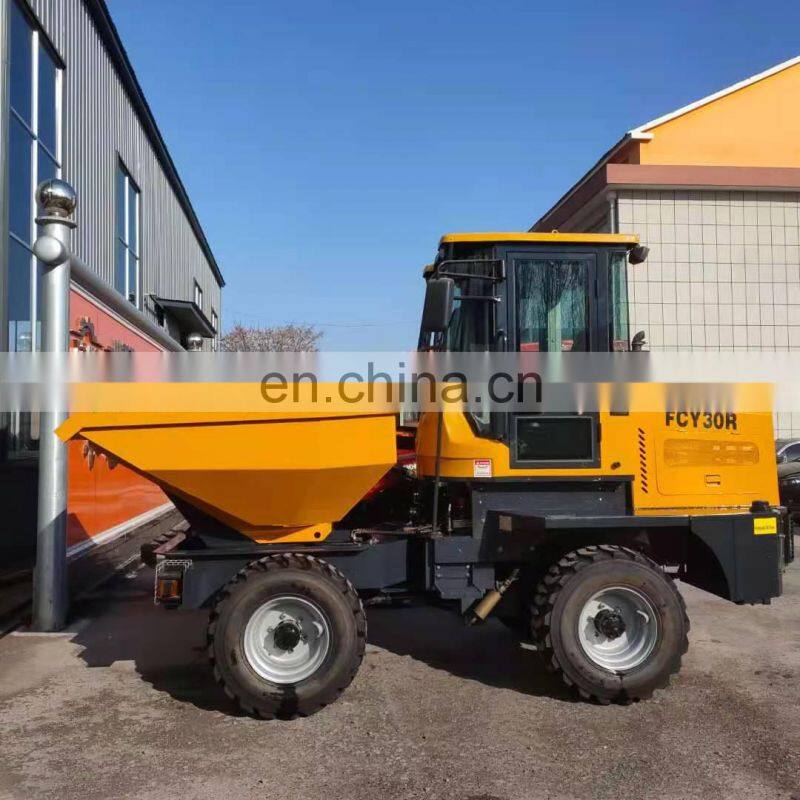

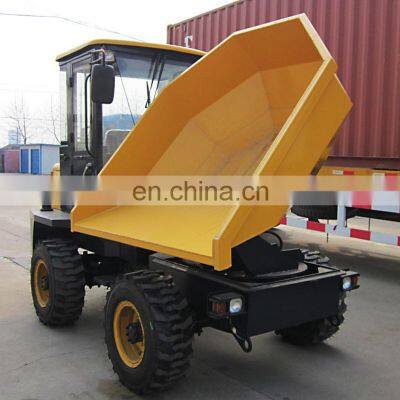

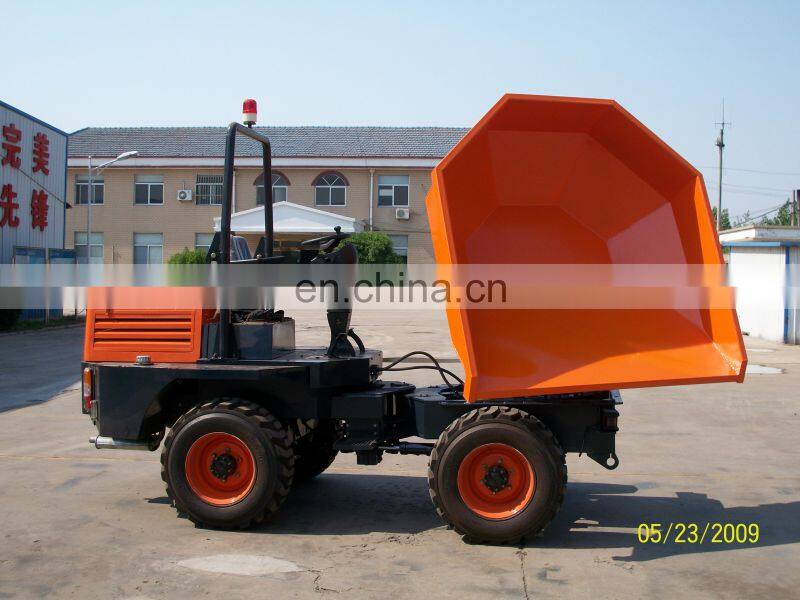

Chinese cheap price hydraulic Mini FCY30 3 ton earth transfer site dumper for constructed
Site Dumper FCY30/S /R Technical Specifications | ||||
Item | Specifications | |||
Bucket capacity | 1.5m3 | |||
Rated load | 3000kg | |||
Operating weight | 2850kg | |||
Grade ability | 25º | |||
Min turning radius | 4000mm | |||
wheel tread/wheel base | 2050mm/1360mm | |||
Overall dimension | "4250*1700*2650mm with canopy | |||
Engine | Model | 490 | ||
Type | in linedirect injectionwater cooler4 cylinders | |||
Rated power | 38kw | |||
Max torque | 2400r/min | |||
Transmission System | Gearbox | Gear transmission | ||
system | Clutch | dry friction | ||
Nos of shifts | 2 Forward+2 backward shift | |||
Max speed | 24km/hr | |||
Rear and front axle | 4×4,front axle fixed, rear axle swing（+/-110） | |||
Steering | Type | hydraulic steering | ||
Steering angle | 35 degrees on both sides | |||
Hydraulic system | Pressure | 16MPA | ||
Brake type | Drum brake | |||
Tyre | Size | 20.5/70-16 | ||
Fuel capacity | Fuel tank | 60L | ||
Hydraulic oil tank | 60L | |||
Optional work device | Self-load | |||
Cab | Optional | |||

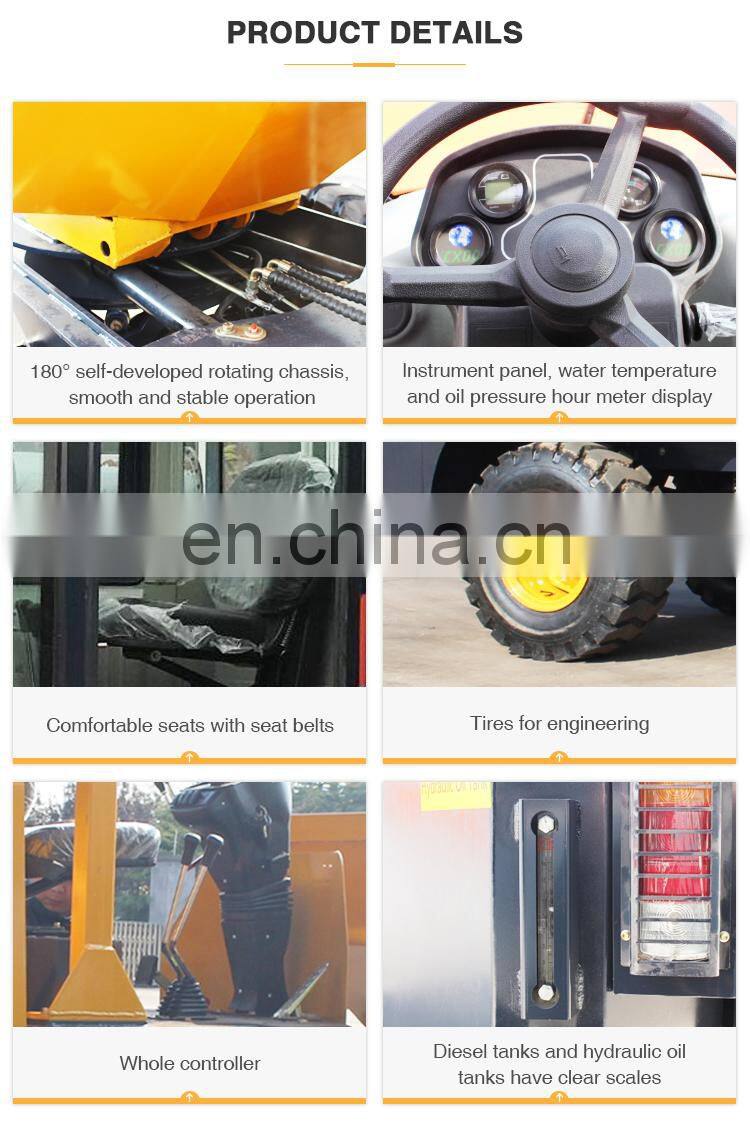

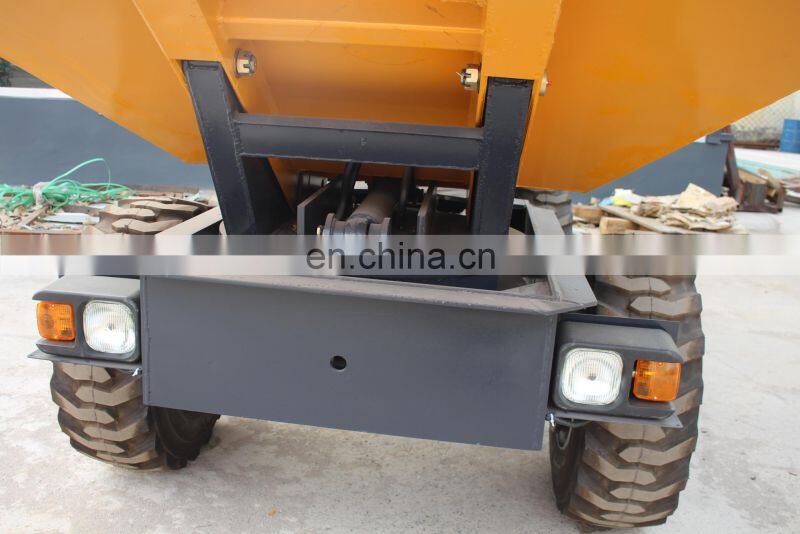

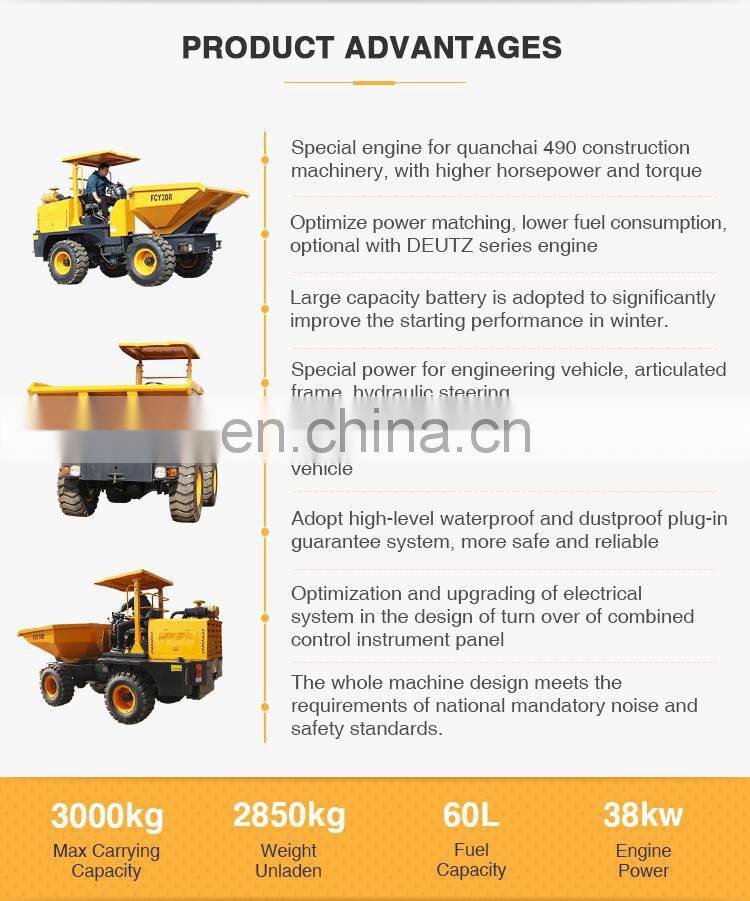

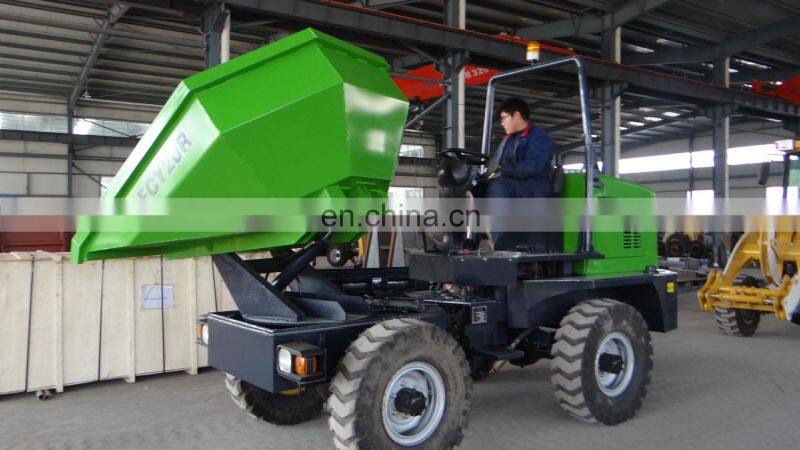

Details Images
