4wd 5ton China Mini Wheel Site Dumper Constructed Articulated Hydraulic Site Dumper
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
5ton With 180 Degrees Rotating Bucket China Diesel Engine Full Hydraulic Mini Truck Dump Tipper Site Dumpers
-
Popular 5ton FCY50R New Short Distance Transfer Site Dumper Truck r With Rotating Bucket Price
-
FCY50 4x4 off Road Tipper 5 Ton 6 Ton Mining Dump Trucks Hydraulic Hopper Mini Dumper Cingolato
-
ce Approved Construction 4wd 5ton Diesel Mini Truck Mine Underground Dump Trucks
-
5ton FCY50R Factory Selling Underground Hydraulic Site Dumper With 180 Degrees Rotating Bucket
-
Chinese Factory Mini 5ton Full Hydraulic Concrete Site Dumper Rotating Dump Truck
Product Description

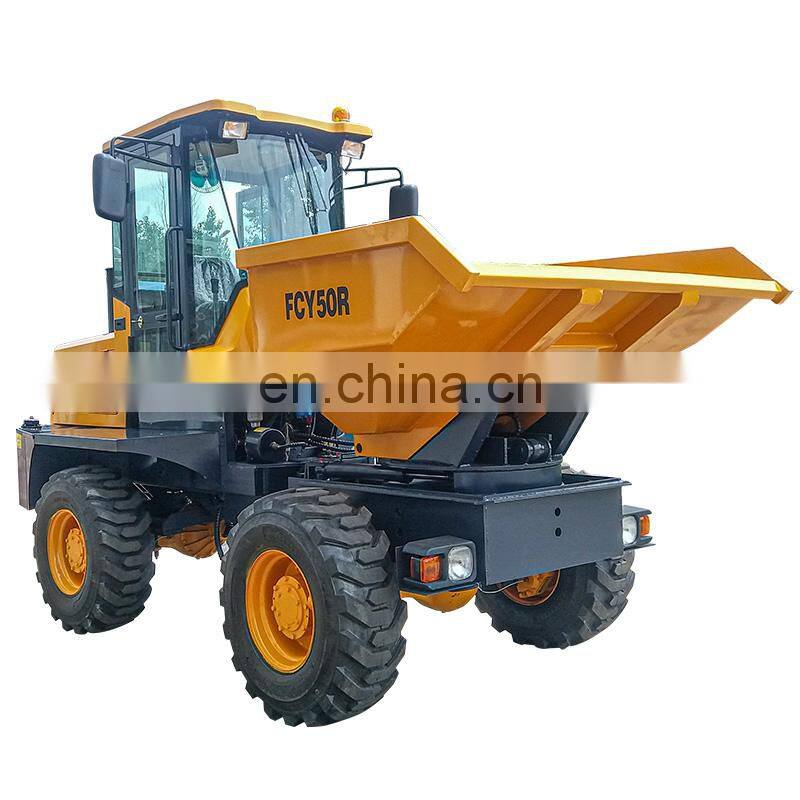

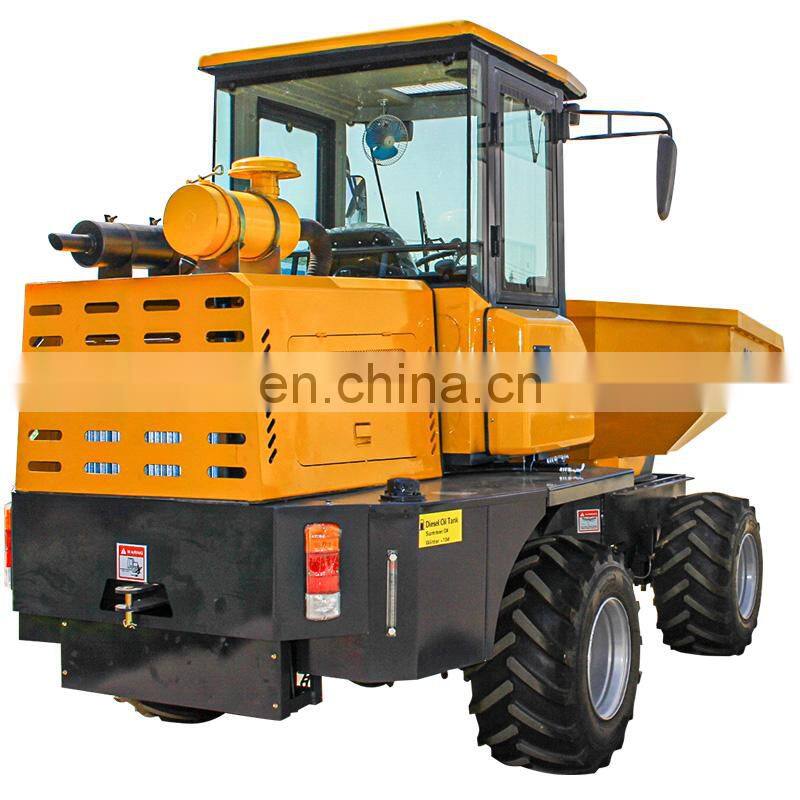

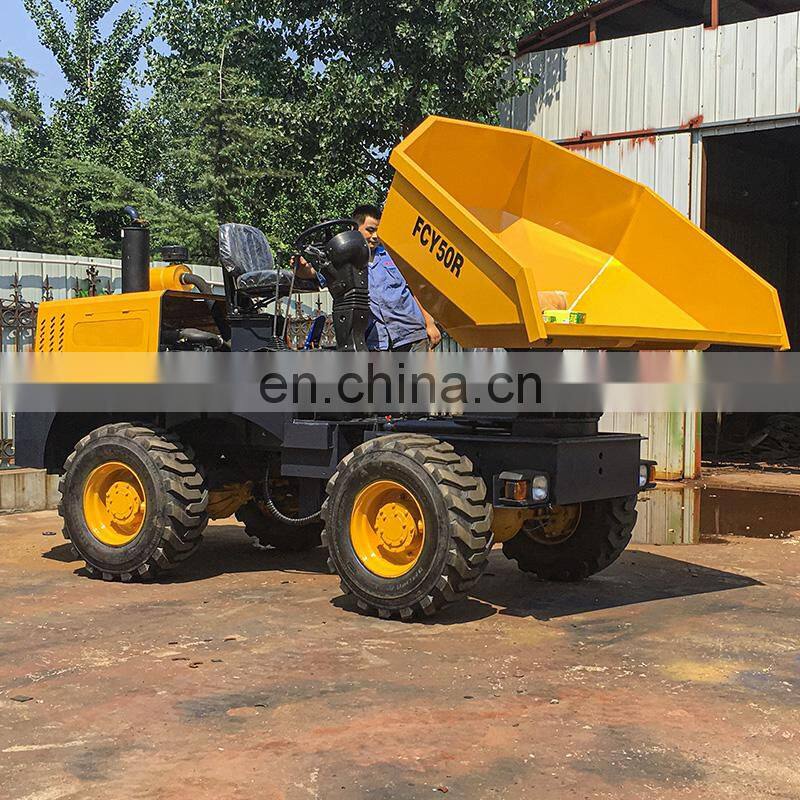

4wd 5ton china mini wheel site dumper constructed articulated hydraulic site dumper

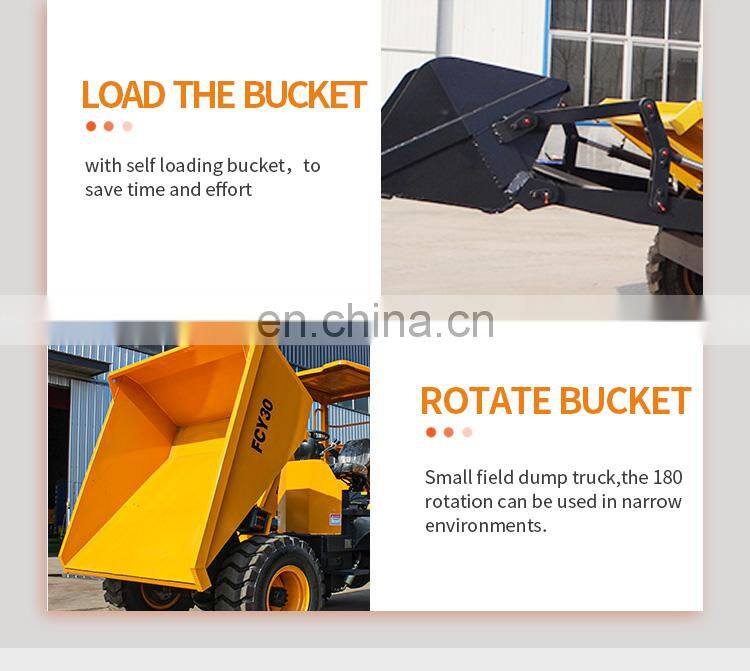

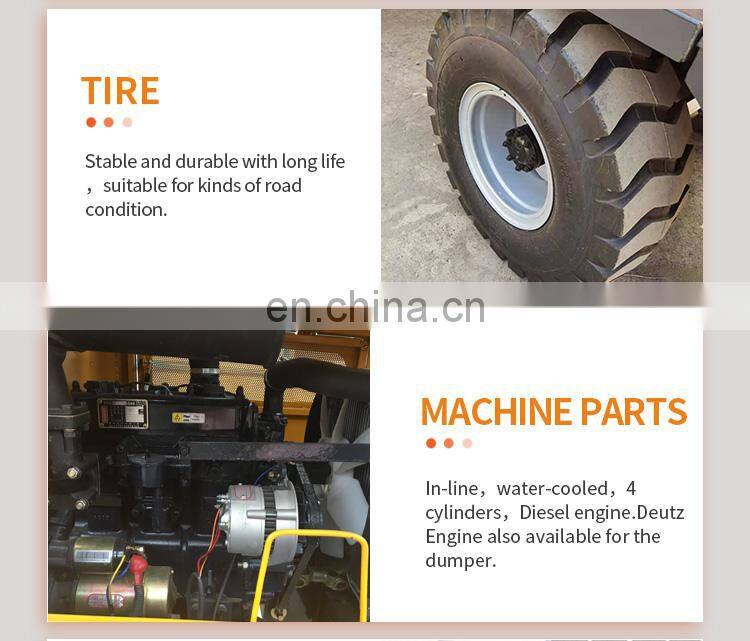

Details Images
SPECIFICATIONS OF FCY50/FCY50R/FCY50S | ||||||
1 | Payload | 5000kg | ||||
2 | Operating weight | 3450 kg/ FCY50S is 3750 kgs | ||||
3 | Hopper capacity | 2.0m3 | ||||
4 | Maximum speed | 25.2 km/h | ||||
5 | Handbrake available on grade | 18% | ||||
6 | Max grade ability | 25% | ||||
7 | Distance of road after brake | ≤2.5m with load and speed 10km/h | ||||
8 | Minimum turn radius | 4 m | ||||
9 | Ground clearance | 248 mm | ||||
10 | Noise level | ≤108 db(A) | ||||
11 | Loading discharge angle | 48.4 | ||||
12 | Time of discharge | 6s | ||||
13 | Hydraulic pressure | 16 Mpa | ||||
14 | Wheel base | 2200 mm | ||||
15 | Wheel tread | 1580 mm | ||||
16 | Engine power | 47KW | ||||
17 | Dimensions (LxWxH) | 4400x2100x2700 mm | ||||
Engine | ||||||
1 | Model/Maker | 4102 | ||||
2 | Type | Diesel 4 stroke engine, 4-cylinder incline, direct fuel injection, water cooled | ||||
3 | Bore x stroke piston | 100 x 102 mm | ||||
4 | Power | 47KW | ||||
5 | Speed | 2400 R/Min | ||||
6 | Max t | 120@2100v/p | ||||
7 | Weight | 350 kg | ||||
Transmission system | ||||||
Hydraulic Torque Converter | 2 Forward and 2 reverse gears | |||||
Type | power shift, spur gear constantly in mesh | |||||
Model | 265 | |||||
Type | 3-elements.single stage | |||||
Torque ratio | 3.06 | |||||
System pressure | 160(kgf/c㎡) | |||||
Optional:
1.the cab
2.air condition
3.Deutz or Cummins engine
4.31 * 15.5-15 tyres
5.Front turn style can be added to level the floor
6.Electronically controlled gearbox
Similar Products
Company Profile
Weifang Map Import & Export Co., Ltd. focuses on quality construction machinery, agricultural equipment, has been in Weifang, China for 14 years. We are Verified Supplier.Now it has become one of the main suppliers of construction machinery.
We produce field tippers, tractor front-end loaders, disc mowers, backhoe loaders, concrete mixers, etc.
We have professional engineers and careful quality check before shipment.All the machines are guaranteed for one year.
We can supply you with dump wheel loaders and construction machinery accessories.The production time is 25-30 days after receiving your deposit. We accept OEM customization.
We produce field tippers, tractor front-end loaders, disc mowers, backhoe loaders, concrete mixers, etc.
We have professional engineers and careful quality check before shipment.All the machines are guaranteed for one year.
We can supply you with dump wheel loaders and construction machinery accessories.The production time is 25-30 days after receiving your deposit. We accept OEM customization.
For some new customers, please do not worry about the problem of cooperation, we will guide you to correctly cooperate with us. That's easy. That's easy. We can arrange sea freight for you. You can pick up the machines at the local port in your country.
We accept online business guaranteed by Alibaba transactions. You can pay us by credit card online.
Products Packaging
Customer
FAQ
1.How can I place order?1.How can I place order?
A: You can contact us by email about your order details, or place order on line.
2.How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance
3. Are you factory supplier?
A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers
4.How many tons site dumper do you produce ?
A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100.
5. Which brand engine do you have for site dumpers?
A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional.
6. What's the order procedure?
A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you.
More details please ask us online or send inquiry to us,we will answer first time.
