Double Layer Roof Sheet Roll Forming Machine
- T/T Credit Card
You May Like
-
Double Layer Roof and Wall Panel Forming Machine Metal Roofing Roll Forming Machine for European
-
Roof Use Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine
-
Metal Double Layer Roofing Sheet Roll Forming Making Machine
-
Sea Shipping Container Side Panel Sheet Roll Forming Machine
-
Cangzhou Thomas Container Side Panel Sheet Roll Forming Machine
-
Various Good Quality Fence Steel Forming Post Steel Pipe Roll Forming Machine
Product Description

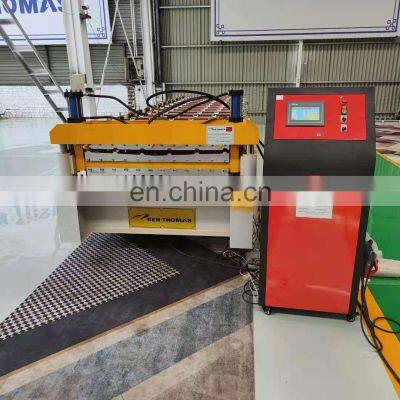

Double layer roof sheet roll forming machine
1.The system is easy to operate and use.
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.
3.Customized:design the machine according to your specification and profile drawing.(for your reference)
The specifications of the whole line:
1.Components:
| Item | Name | Quantity |
| 1 | Decoiler | 1 set |
| 2 | Roll former | 1 set |
| 3 | Control system | 1 set |
| 4 | Hydraulic system | 1 set |
| 5 | Product receive table | 1 set |
2.Raw material:0.3-0.8mm,GI,GL,PPGI

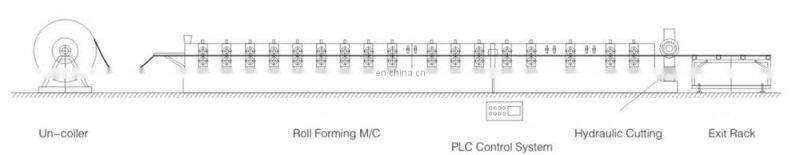

3.Process flow
4.Manual decoiler(also can use hydraulic decoiler as customers' request)
Capacity:5T
Coil diameter:450-550mm
Coil outer diameter:1500mm
Coil width:1200mm(as customers' request)
5.Main roll forming machine
Feeding device:with two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.
Frame:350H steel,with 20mm middle plate support

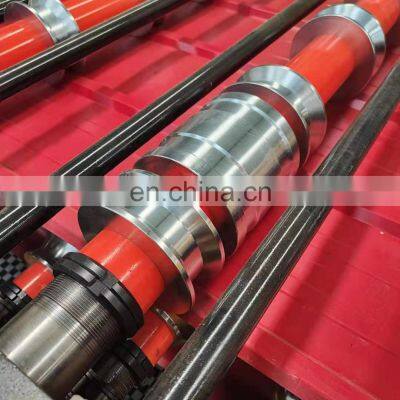

Roller stations:15 stations
Roller materila:45# steel with quenched treatment and hard chroming
Shaft diameter:80mm,solid
Shaft material:45# steel with tempering treatment
Motor power:5.5kw
Speed:0-20m/min
Transmission:By chain
Voltage:380V,50HZ,3P

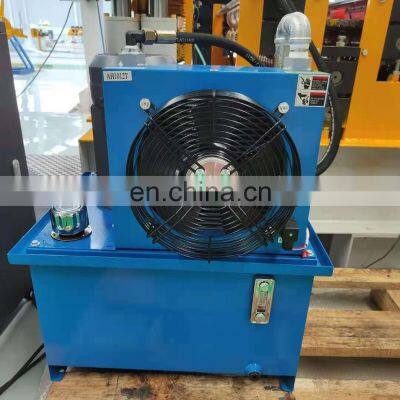

6.Hydraulic cutting system
Blade material:Cr12,with quenched treatment
Hydraulic power:5.5kw
Cutting tolerance:±1mm
With fan cooling on the oil pump

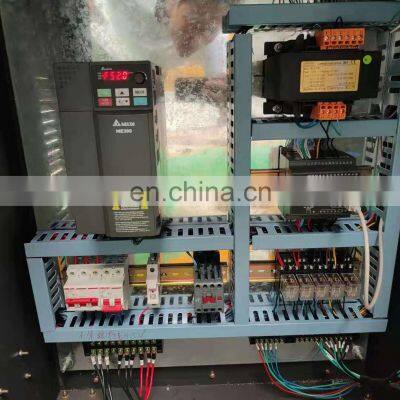

7.Control system
Control system:PLC
PLC brand:Delta from Taiwan
Frequency converter brand:Delta from Taiwan
Encoder:Omron
Function:Automatic control the length and quantity
8.Product run out table
Type:manual(also can use the auto stacker as customers' request)
Length:3m
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
