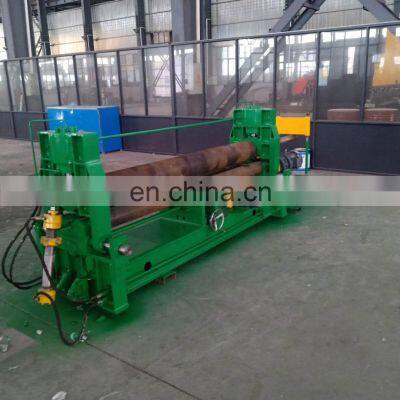

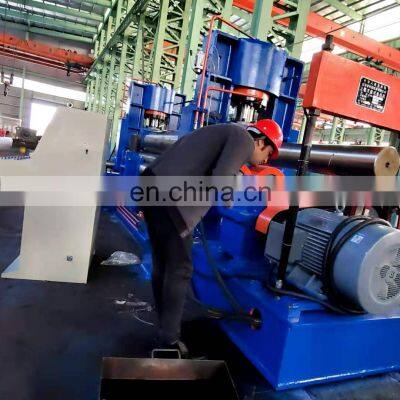

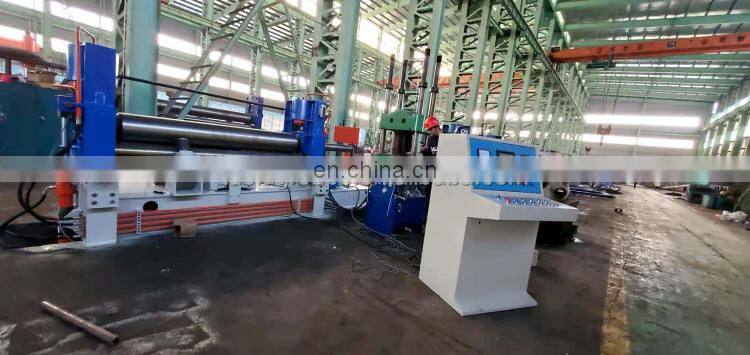

T&L Brand CNC 3 Roller Plate Bending Machine 4 Roller Bending Machine W11-6*1500

Main structure and how it works.

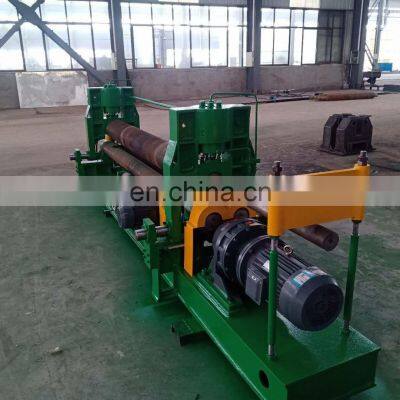

Mechanical 3-roller symmetrical plate rolling machine.

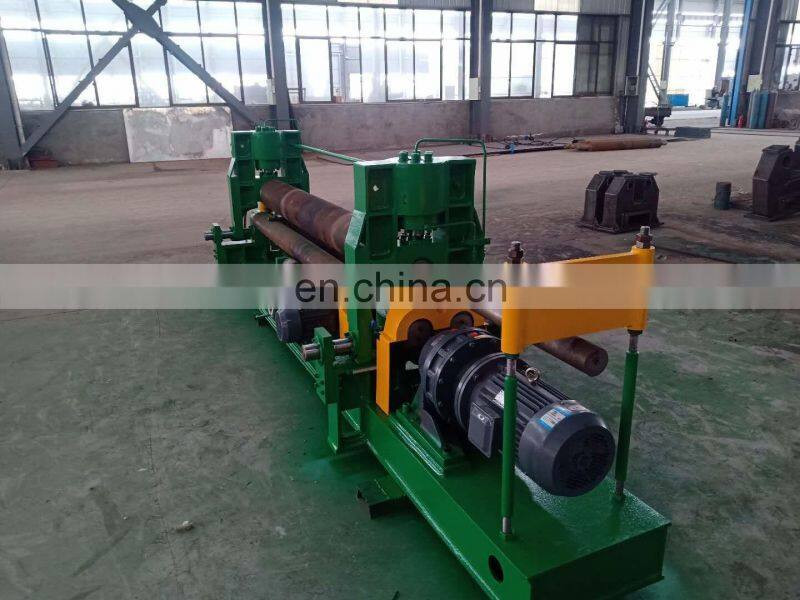

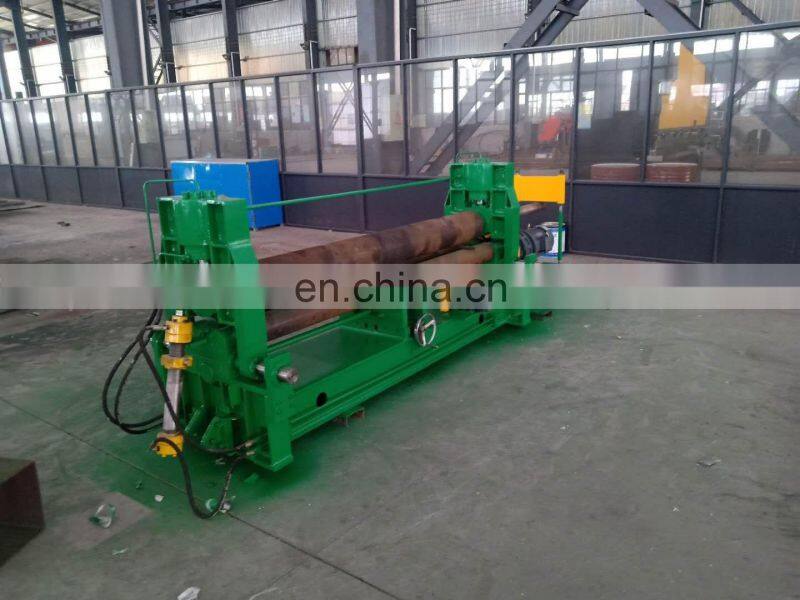

1. The machine is composed by two main parts, there are working parts and transmission parts. Working parts include two lower roller and one upper roller with roller bearings. The lower roller is the capstan, the upper roller is driven roller. Height of upper roller can be adjusted freely. Besides, the transmission part contain main motor, reduction box, etc.

2. The main motor drive the main reduction box, and then the main reduction box drive the lower roller. Direction of rotation of the lower roller can be controlled by the main motor.

3. Subsidiary motor drive the subsidiary reduction box, then the upper roller could perform vertical movement.

Unloading equipment can help operater take out finished products.

Raw material of roller and processing technic

1. Raw material: 45# forging steel

2. Datum: certificate of raw material and other inspection report attached with machine.

3. Processing technic: caststeel ingot → forged blank → normalization after forging → rough turning → heat treatment(hardening and tempering) → finish turning → hard facing.

3. Requirement of heat treatment: hard facing depth≥3mm, hardness≥HRC45-50.

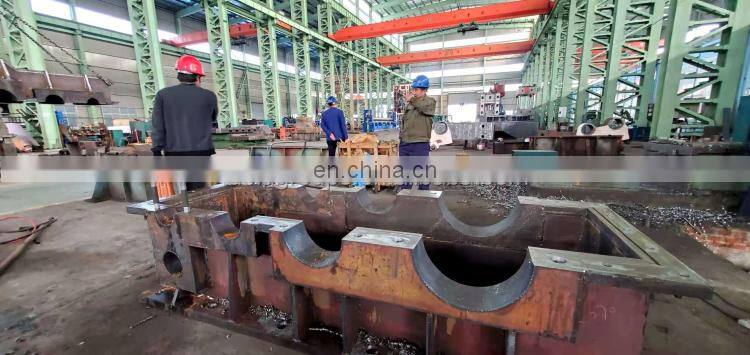

Welded structure(including the frame, foundation and other steel structure)

1. Processing technic of welded structure:

2. Purchasing inspection → steel plate pretreatment → cutting → edge preparation → welding → weld joint inspection → annealing treatment → rough machining → Vibratory stress relief → fine machining → surface derusting and corrosion prevention → topcoating(as required by customers).

  Technical requirements: we promise all welding structure must be Q235A, all specification can meet GB.

  Perfect welding without pore, crack, etc.

  Stress relief before machining.
