Product Description
Products Description

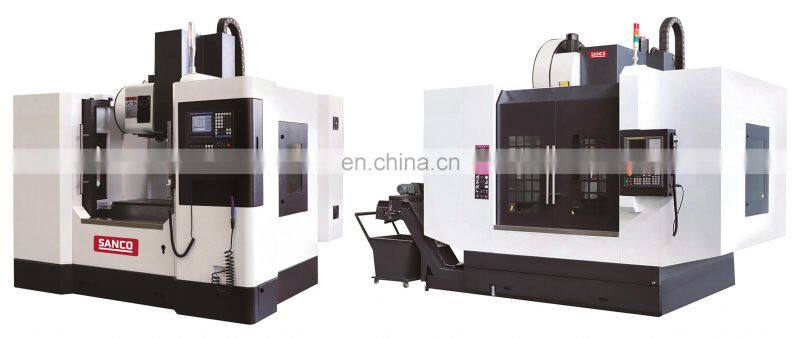

CNC Vertical Machining Center CNC Milling Machine
Model | VMC550 | VMC650 | VMC850 | VMC950 | VMC1060 | VMC1270 | |||||||
CNC system brand | MITSUBISHI / FANUC / KND / GSK | ||||||||||||
Stroke | X axis (mm) | 550 | 650 | 800 | 900 | 1100 | 1200 | ||||||
Y axis (mm) | 350 | 400 | 500 | 500 | 600 | 700 | |||||||
Z axis (mm) | 500 | 500 | 500 | 600 | 600 | 700 | |||||||
Spindle end face to workbench (mm) | 100-600 | 100-600 | 120-620 | 150-750 | 100-700 | 130-830 | |||||||
Spindle center to column guide (mm) | 419 | 481 | 581 | 670 | 667 | 767 | |||||||
Feed | X-axis moving (m/min) | 24 | 24 | 48 | 24 | 18 | 24 | ||||||
Y-axis moving (m/min) | 24 | 24 | 48 | 24 | 18 | 24 | |||||||
Z-axis moving (m/min) | 24 | 24 | 48 | 24 | 18 | 24 | |||||||
Cutting feed (m/min) | 1-10 | 1-10 | 1-10 | 1-10 | 1-10 | 1-10 | |||||||
3 axis servo motor torque (N.M) | 10 | 10 | 10 | 12 | 23 | 25 | |||||||
Worktable | Workbench area (mm) | 800x350 | 800x400 | 1000x500 | 1000x550 | 1200x600 | 1300x700 | ||||||
Weight capacity (kg) | 300 | 400 | 500 | 800 | 800 | 700 | |||||||
T-slot (size * quantity * space) | 3x18x105 | 3x18x125 | 3x18x100 | 5x18x100 | 5x18x100 | 5x18x115 | |||||||
Spindle | Drive type | Direct drive / Belt drive | |||||||||||
Rotating speed (rpm) | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 | |||||||
Spindle taper | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | |||||||
Motor power (kw) | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | |||||||
Accuracy | Positioning (mm) | ±0.005 /300 | ±0.005 /300 | ±0.005 /300 | ±0.005 /300 | ±0.005 /300 | ±0.005 /300 | ||||||
Repeat positioning (mm) | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | |||||||
Others | Weight (kg) | 2800 | 3400 | 4800 | 6500 | 6200 | 8000 | ||||||
Dimensions (mm) | 2100 (L) 1900 (W) 2200 (H) | 2200 (L) 1900 (W) 2200 (H) | 2500 (L) 2200 (W) 2500 (H) | 3000 (L) 2400 (W) 2700 (H) | 3000 (L) 2400 (W) 2600 (H) | 3200 (L) 2400 (W) 2700 (H) | |||||||

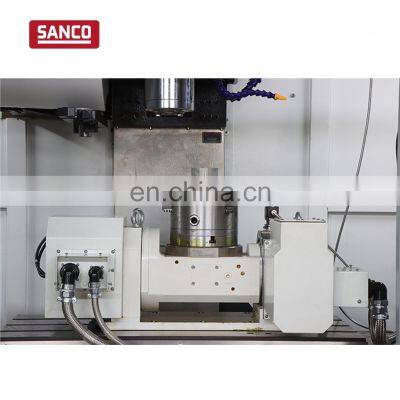

Option | 4th or 5th Axis |
Option | Automatic chip conveyor & chip bucket (Chain type) |
Automatic chip conveyor & chip bucket (Screw type) | |
Spindle direct driven, speed 12000 rpm | |
Spindle oil cooling | |
Spindle center water spray | |
24 tools disc type | |
Nitrogen balance cylinder | |
Air conditioner for electricity cabinet |
