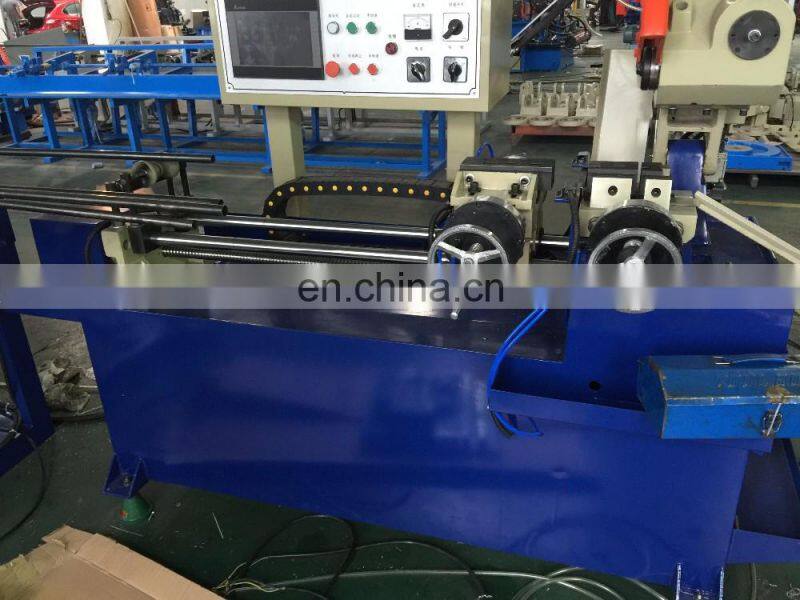

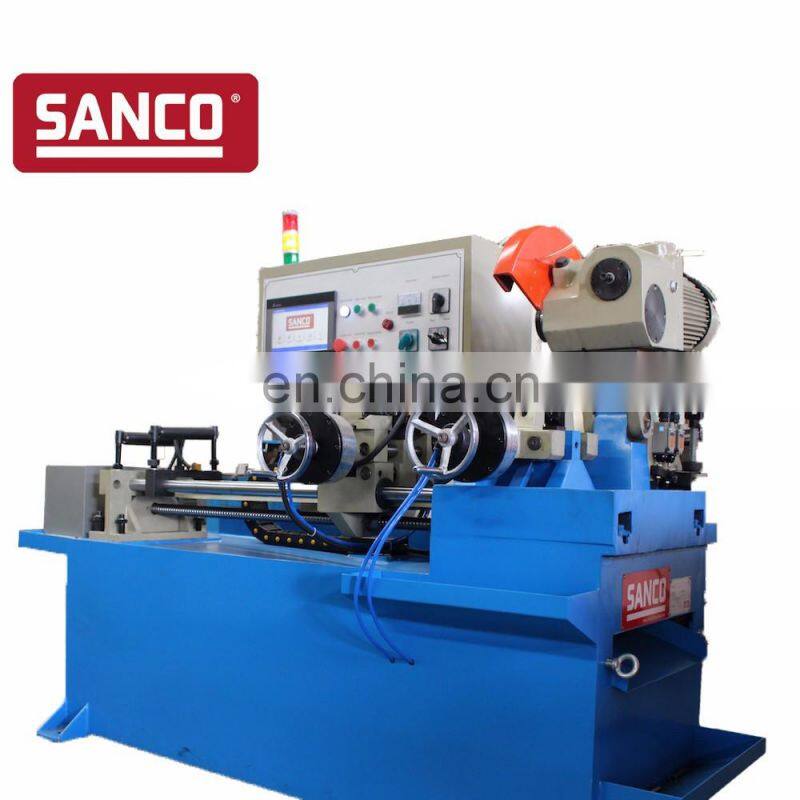

Fully Auto CNC Tube Pipe Disk Saw Blade Cutting Machine

FA Full Auto

P Pneumatic
Max. Φ325 mm saw blade
Max cutting Round tube:Φ95 mm ( Can cut several pipes )
Square tube:85×85 mm ( Can cut several pipes )
Rectangle tube:110×75 mm ( Can cut several pipes )
Cut angle 90°

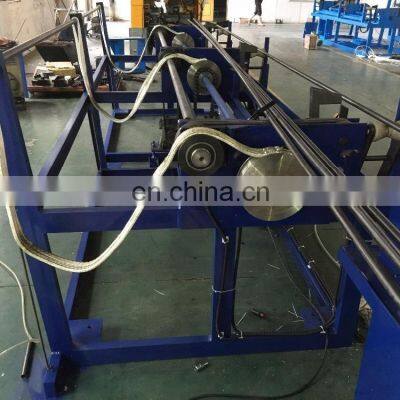

Feeding length 5 - 700 mm ( Single feed stroke )
5 - 1400 mm ( Double feed stroke )
5 - 2100 mm ( Triple feed stroke )

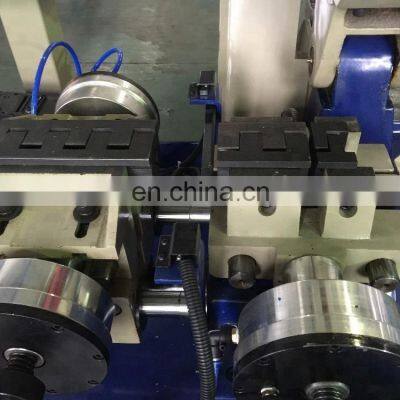

Max Vice open distance 105 mm
Applied saw blade HHS Φ250 mm - Φ325 mm, Standard Φ300 mm
Main motor power 2.4 / 3.0 kw
Cooler pump power 90 W
Machine size 2100×1050×1850 mm
Machine Weight 1100 kg
Pipe material: mild steel, stainless steel ...
Round / square / rectangle / profile ... pipes and bars
CE, ISO90001 marked

 COMPANY

SANCO (Taiwan and China mainland)Machinery Co., Ltd. was established in 1984, and have cooperation with Taiwan bender company since 1989, specialized in manufacturing Pipe Bending Machine, Metal Circular Saw Machine, Pipe End Forming Machine, Polishing Machine, Chamfering Machine and so on. In 1984, SANCO and "Shanghai Aircraft Design and Research Institute" joint the production of hydraulic pipe bending machine. And in 1984, "Shanghai Aircraft Manufacturing Co., Ltd." assembled 25 airplanes of American model MD82. Chinese government required SANCO mapping the prototype of Italian bending machine, and SANCO manufacturing the bending machine to produce airplane related accessories.

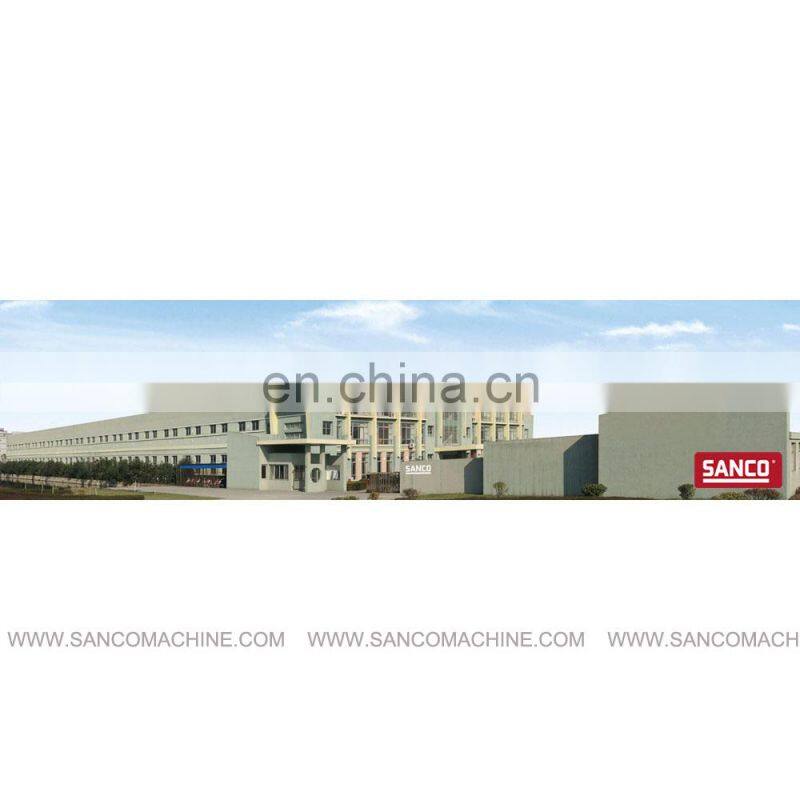

With 96 workers, 20 professional and technical engineers. SANCO company occupies 20,000 square meters, construction area of 15,000 square meters.
The three-dimensional CNC bending machine developed by SANCO is advanced than other Chinese factories. SANCO is the leader of drafting the "Chinese Standard of CNC Pipe Bending Machine" (GB / T28763-2012), released in November 2012, and implemented in May 2013. And SANCO is also the leader of "Chinese Standard of Pipe Bending Machine Safety" (GB28760-2012), released in November 2012, and implemented in October 2013.
All machines marked IS9001: 2000 and CE. SANCO machines exported to the United States, UK, France, Russia, Australia, India, Brazil, Poland, Canada, South Africa, Mexico, UAE, Saudi Arabia, and so on 58 countries.
NOW, AND FOREVER MORE ... SANCO DO THE BEST OR NOTHING.
