SANCO Steel Metal Tube Pipe Bending Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Cnc Pipe Tube Bending Machine
-
Sanco Double Stack CNC Tube Bending Machine for Automobile Oil Pipeline
-
Right and Left Direction Pipe Bending Machine With Rolling and Punching
-
MS Pipe Tube Bending Machine
-
SANCO Bus Front Panel Front Lamp Roof Bow Bus Body Square Pipe Bending Machine
-
75cnc SANCO Bumper REEL Handrails Grab Bar Serpentine Pipe Bending Machine
Product Description
Products Description
OD (Inch) | OD (mm) | WT (mm) | Mandrel Length (mm) | Push bending | Model |
1/3 | 8 | Wire | - | ? | WB-8CNC-5A-3D |
2/5 | 10 | Wire | - | ? | WB-10CNC-5A-3D |
1/2 | 12 | Wire | - | ? | WB-12CNC-5A-3D |
5/9 | 14 | Wire | - | ? | WB-14CNC-5A-3D |
5/7 | 18 | 1.5 | 2000 | Option | SB-18CNC |
1 | 25 | 2.0 | 2500 | Option | SB-25NCB SB-25CNC |
1 1/2 | 38 | 3.0 | 3500 | Option | SB-38NCB SB-38CNC |
2 | 50 | 3.0 | 3800 | Option | SB-50NCB SB-50CNC |
2 1/2 | 65 | 4.0 | 4000 | Option | SB-65NCB SB-65CNC |
3 | 75 | 4.0 | 4200 | Option | SB-75NCB SB-75CNC |
3 1/2 | 89 | 4.0 | 4500 | Option | SB-89NCB SB-89CNC |
4 | 100 | 5.0 | 4500 | Option | SB-100NCB SB-100CNC |
4 1/2 | 120 | 6.5 | 6000 | Option | SB-120NCB SB-120CNC |
5 | 130 | 6.5 | 6000 | Option | SB-130NCB SB-130CNC |
6 1/2 | 168 | 10.0 | Custom-made | Option | SB-168NCB SB-168CNC |
7 1/2 | 189 | 10.0 | Custom-made | Option | SB-189NCB SB-189CNC |
8 1/2 | 219 | 20.0 | Custom-made | - | SB-219NCB SB-219CNC |
12 1/2 | 325 | 20.0 | Custom-made | - | SB-325NCB SB-325CNC |
12 1/2 | 325 (Heat Bend) | 20.0 | Custom-made | - | IB-325 |
16 1/2 | 426 (Heat Bend) | 20.0 | Custom-made | - | IB-426 |
Application industry | ||||||
Furniture | Boiler | Exhaust | Shipyard /oil rig | |||
Head rest | Heavy vehicle cabin | Green house | Health care | |||
Aerospace/aviation | Serpentine bending | Fitness | Brake line | |||

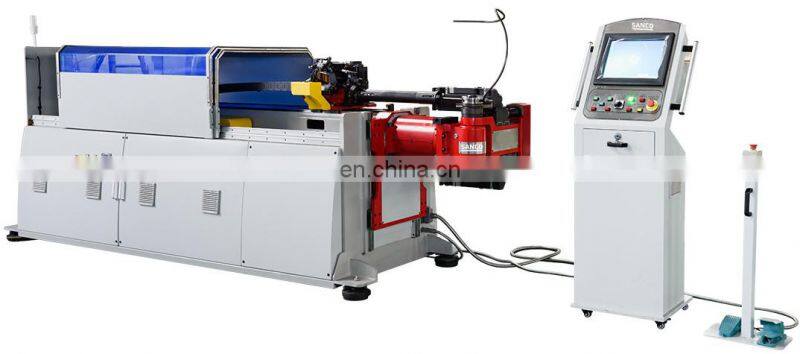

3D Auto CNC Steel Tube Bending Machine
1. Tube bending, feeding and rotating by servo motor. There is 11 axis fully auto as option.
2. Stacks: 1, 2, 3, 4, 5, 6 as option.
3. Industry PC controller 15" touch screen, easy operation. Video of operate.
4. Easy to change bend tooling. Video of changing tooling.
Details Images

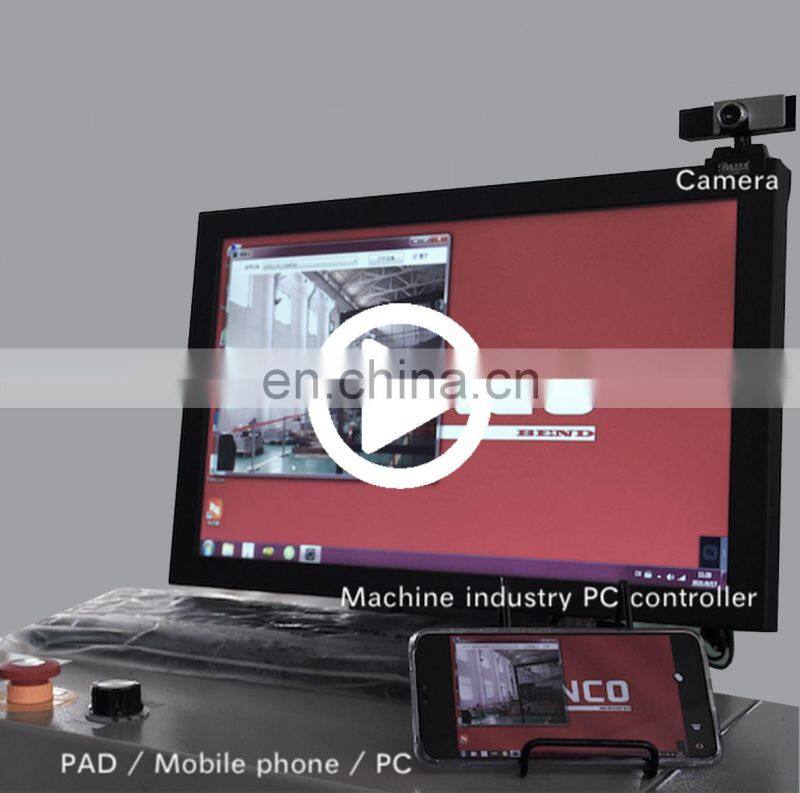

PAD / Mobile phone / PC monitoring production by camera. Remote function.
Can connect to Internet by WIFI / Net wire / 4G card.
Industry PC controller. Windows system.

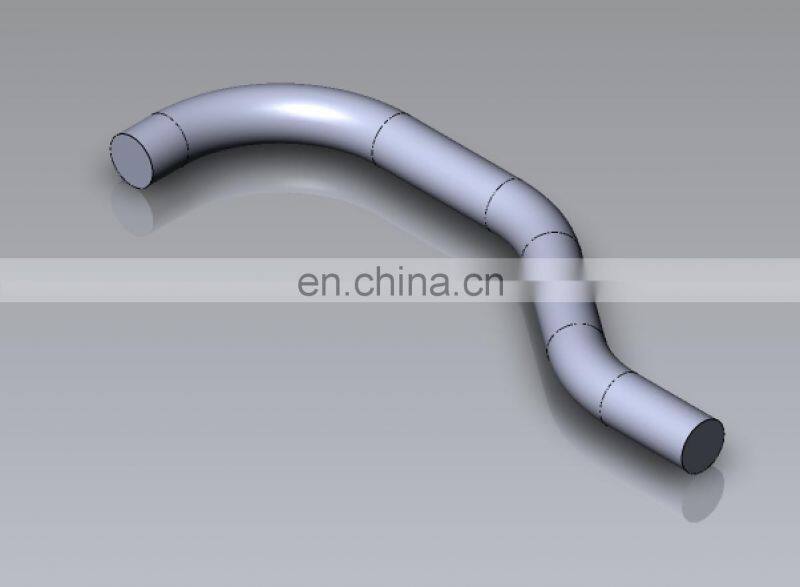

Read 3D / DWG drawing by USB port or internet.

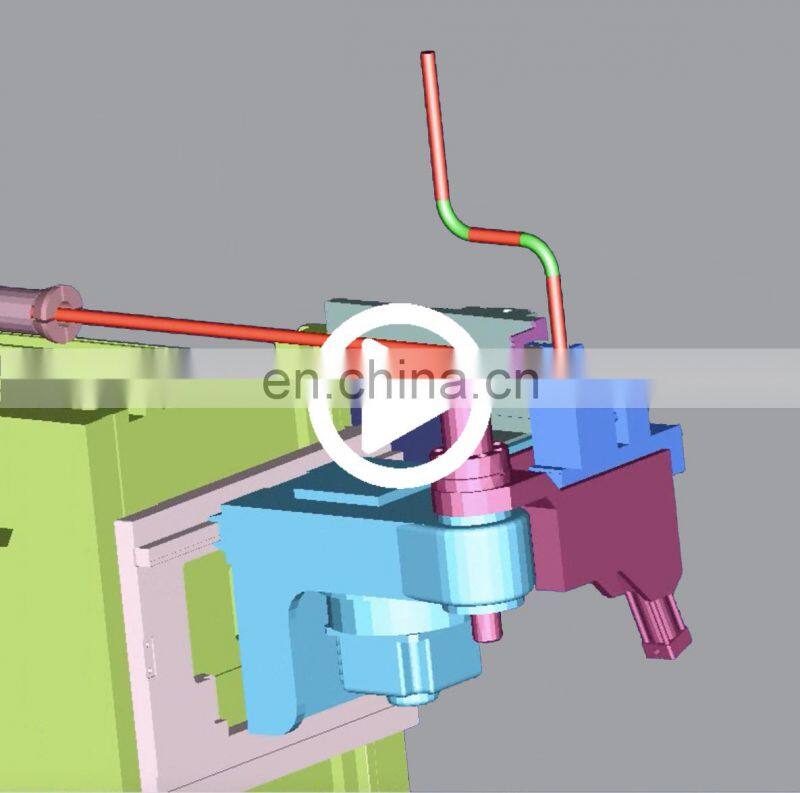

Simulate the bending.

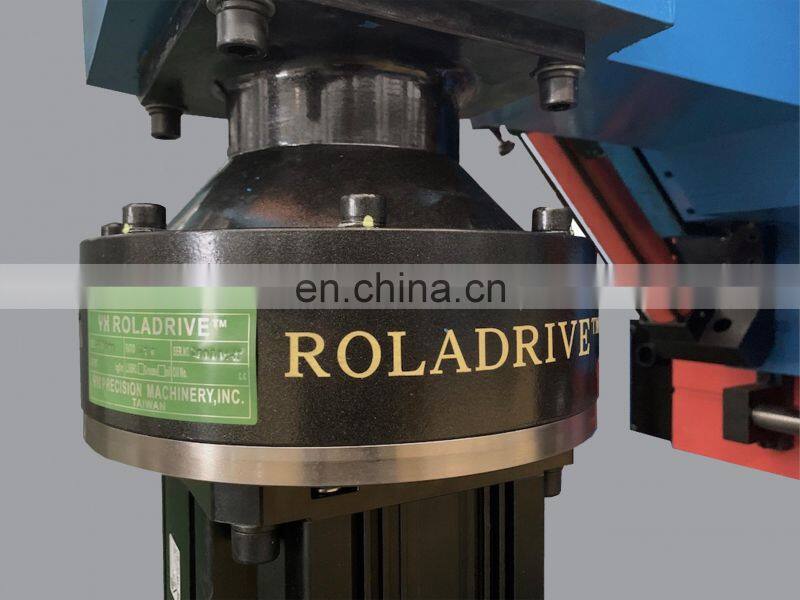

Reducer: Taiwan ROLADRIVE, with high torque.
SANCO engineer do remote to solve your problem.

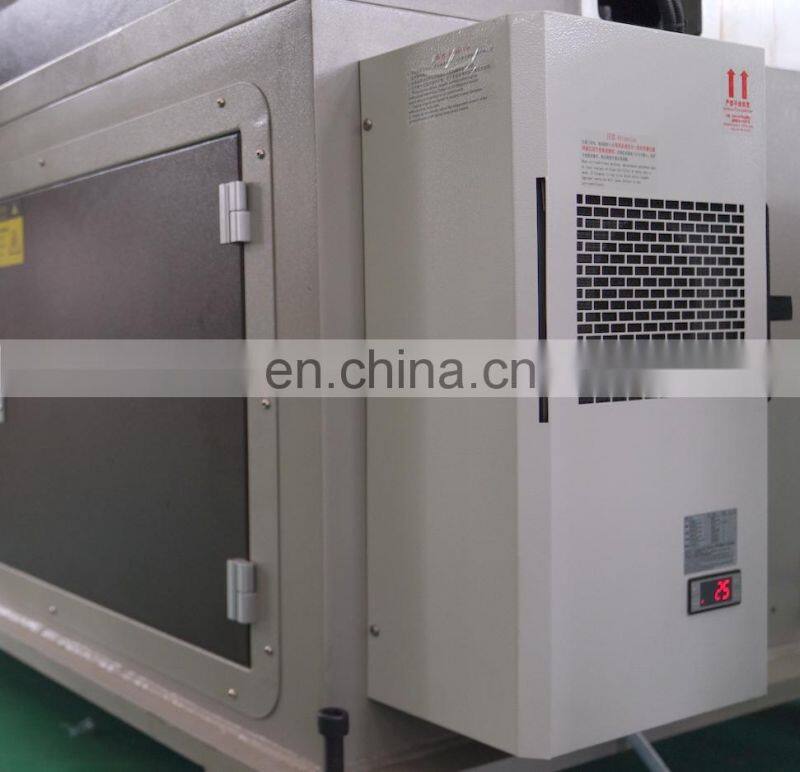

Air conditioning, adjust the temperature of the electrical box.

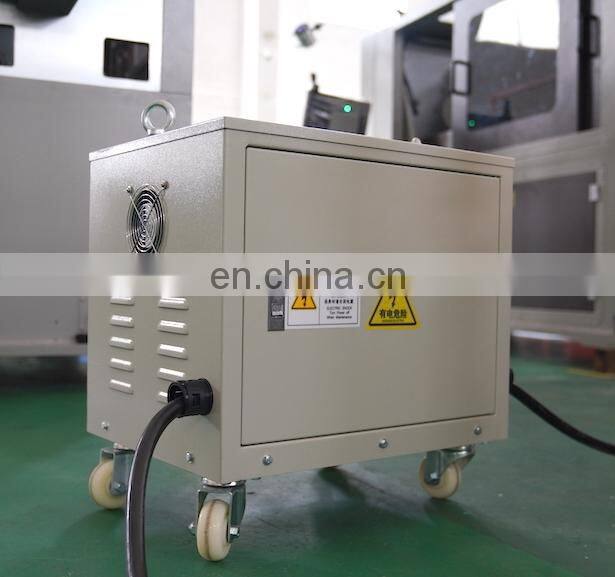

Transformer, for 220V, 380V, 415V and 440V.

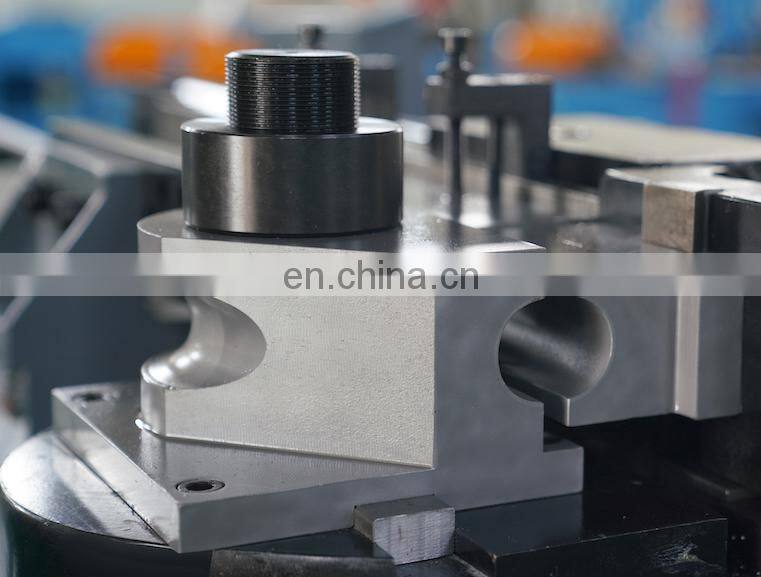

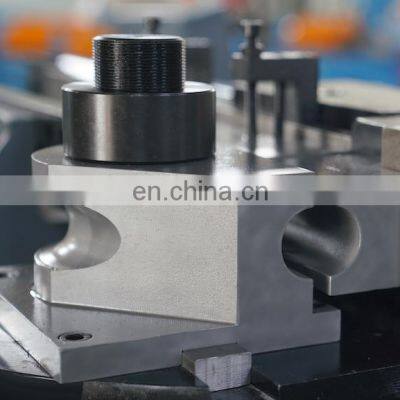

Bend tooling.

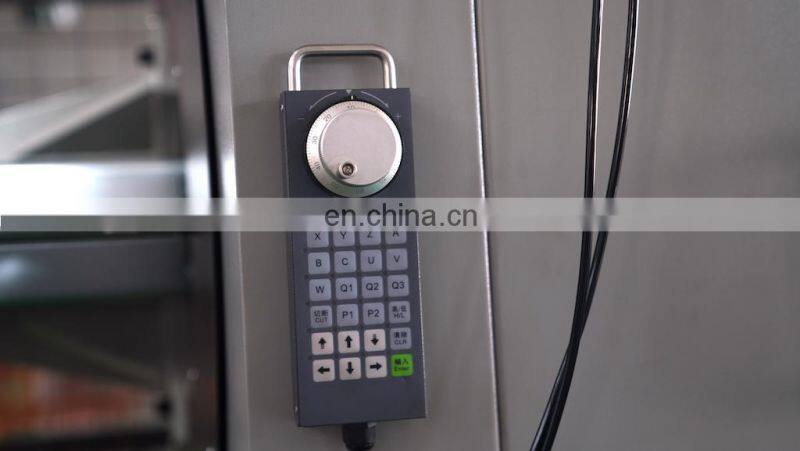

Hand wheel: Precise control under manual mode.

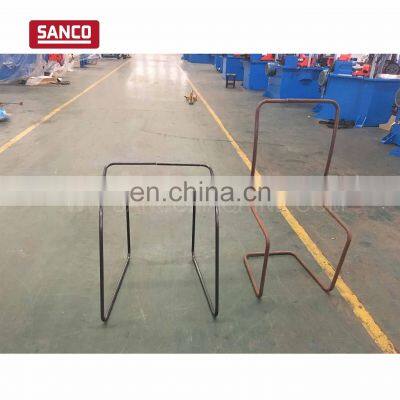

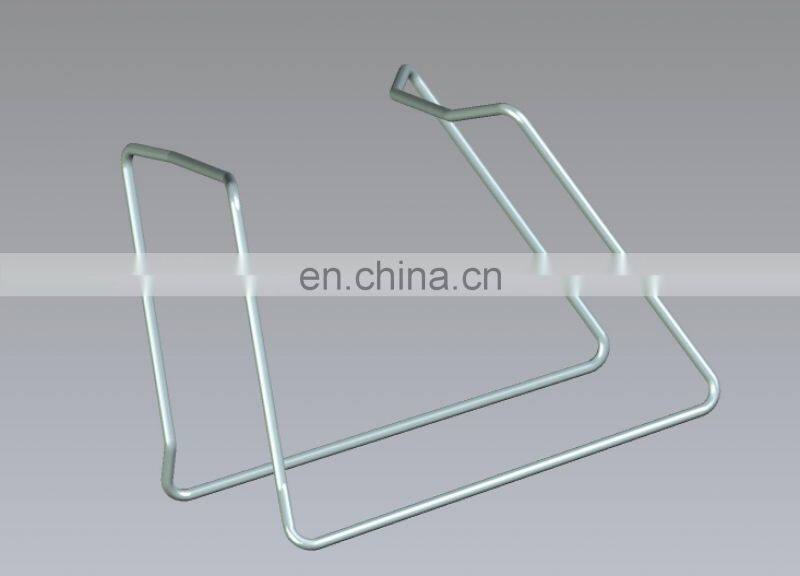

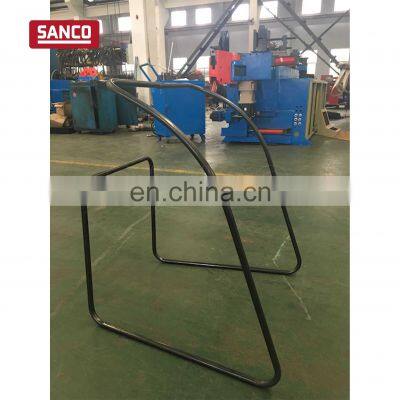

For different tube product.
Send your requirement, SANCO give you proposal.
Contact us by email: aran@sancomachine.com
Whatsapp/Wechat: +8618351692880
Whatsapp/Wechat: +8618351692880
Option (Multi-function in one machine) | ||||||
Left and right direction bending | Pushing / Rolling | Robot hand | Auto punching | |||
Auto cutting | Auto welding seam detection | Auto loading | Auto unloading | |||
Infrared safety fence | Production line | Booster | Bend Nylon tube | |||
Contact us
SANCO GROUP (Since 1984)
Cell phone / Wechat / WhatsApp: +8618351692880
Email: aran@sancomachine.com
Company Profile
Industry 4.0
SANCO GROUP is committed to industry 4.0 system R&D and innovation.
Send us your ideas and we will help you realize them.
Service
Service Station | Country | After Sales |
Argentina | ? | |
Belarus | ? | |
Brazil | ? | |
Chile | ? | |
Egypt | ? | |
India | ? | |
Indonesia | ? | |
Mexico | ? | |
Peru | ? | |
Poland | ? | |
Russia | ? | |
Saudi Arabia | ? | |
South Africa | ? | |
Spain | ? | |
Thailand | ? | |
Ukraine | ? | |
Uzbekistan | ? |
SANCO provides global after-sales site services.
SANCO machines can be connected to the Internet to realize remote control and solve your problems.
Service station: Argentina, Belarus, Brazil, Chile, Egypt, India, Indonesia, Mexico, Peru, Poland, Russia, Saudi Arabia, South Africa, Spain, Thailand, Ukraine, Uzbekistan.
Customer's smile
The smile from customers' . (All the pictures agreed by customers)
