Product Description
VR

Product Description
Blince

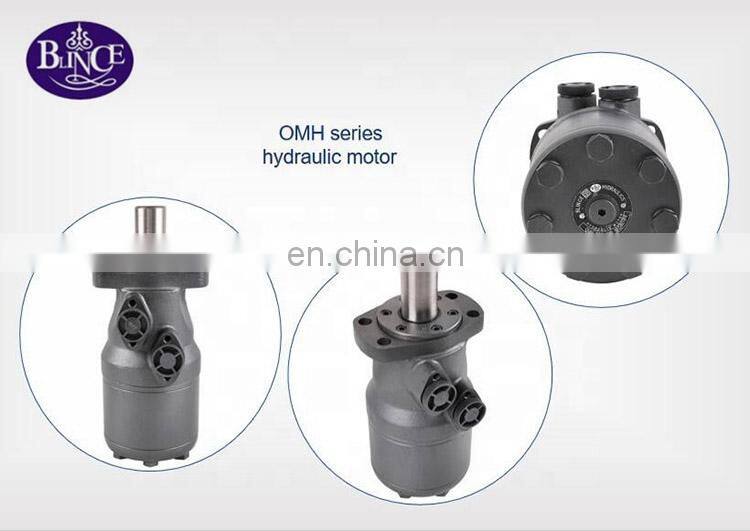

High Torque Hydraulic Motor BMH 400 OMH 400cc Orbit
OMH series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
Characteristic features:
1.Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
2.Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
3.Special design in the driver-linker and prolong operating life.
4.Special design for distribution system can meet the requirement of low noise of unit.
5.Compact volume and easy installation.
Model  | OMH-200  | OMH-250  | OMH-315  | OMH-400  | OMH-500  | |||||||
Geometric displacement(cm²/rev.)  | 203.2  | 255.9  | 316.1  | 406.4  | 489.2  | |||||||
Max.speed(rpm)  | cont.  | 366  | 290  | 236  | 183  | 155  | ||||||
int.  | 439  | 348  | 282  | 220  | 166  | |||||||
Max.torque (N*m)  | cont.  | 510  | 621  | 740  | 850  | 830  | ||||||
int.  | 579  | 702  | 827  | 990  | 1040  | |||||||
Max.output(kw)  | cont.  | 16  | 16  | 14  | 12.5  | 11  | ||||||
int.  | 18.5  | 18.5  | 15.5  | 15  | 14  | |||||||
ure drop (MPa)  | cont.  | 17.5  | 17.5  | 17.5  | 15.5  | 12.5  | ||||||
int.  | 20  | 20  | 20  | 19  | 16  | |||||||
Max.inlet pressure (MPa)  | cont.  | 200  | ||||||||||
int.  | 225  | |||||||||||
Max.flow  (L/min)  | cont  | 75  | ||||||||||
int.  | 90  | |||||||||||
Net weight (kg)  | 10.5  | 11  | 11.5  | 12.3  | 13.0  | |||||||
*Rated speed and rated torque: output value of speed and torque under rated flow and rated pressure;  *Continuous pressure: Max.value of operating motor continuously;  *Intermittent pressure: Max. value of operating motor in 6 seconds per minute; *Peak pressure: Max.value of operating motor in 0.6 second per minute.  | ||||||||||||
If you have any questions, please contact our customer service. During the purchase process, we can meet all your needs.  For hydraulic equipment, please look for Blince!  | ||||||||||||
