Home > Products > Conduit & Fittings > High Quality Standard Multicolor Straight pvc electrical conduit fittings

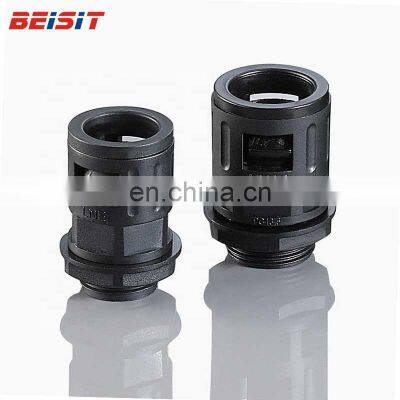

High Quality Standard Multicolor Straight pvc electrical conduit fittings
- T/T Credit Card
You May Like
-
UL-94 V-2 Approved Nylon Straight Conduit Fittings for Corrugated Tube
-
PVC Flexible Conduit Corrugated Flexible Pipe Glands
-
Conduit Fittings Round Type Electrical Flexible PVC EPDM or NBR MG16-MG63 94 V-0 / V-2 CE, ROHS Beisit or OEM CN;ZHE P 07G
-
M Type Plastic Tubing Connecting Fittings
-
fittings plastic
-
flexible cable conduit auto electrical wire connectors
Product Description
High Quality Standard Multiolor Straight pvc electrical conduit fittings
Metric Fast-Fit Nylon Straight Conduit FittingsMaterial: PA(Nylon), UL 94 V-2 Color: Grey(RAL7035), Black(RL) Hermetic Seal: NBR O-Ring: EPDM Working Temperature: -40℃ to 100℃ Protection Class: IP68 Other material upon request. Main Products:Cable Glands Cable ties, Cable Tie Bundler Waterproof Enclosure, Conduit System, Wiring Accessories |
Size Chart of Metric Fast-Fit Nylon Straight Conduit Fittings
Thread ΦD1 |
ΦD mm |
AD mm |
H mm |
GL mm |
ΦB mm |
Spanner Size mm |
Beisit No. Grey(RAL7035) |
Beisit No. Black(RAL9005) |
M12×1.5 | 7.5 | 10 | 23.5 | 11.5 | 17 | 15.5 | BST-M12-10 | BST-M12B-23.5 |
M16×1.5 | 10 | 13 | 26 | 11.5 | 20 | 18 | BST-M16-13 | BST-M16B-26 |
M16×1.5 | 11 | 15.8 | 28 | 11.5 | 23 | 21 | BST-M16-15.8 | BST-M16B-28 |
M20×1.5 | 12 | 15.8 | 28 | 13 | 23 | 21 | BST-M20-15.8 | BST-M20B-28 |
M20×1.5 | 15 | 21.2 | 31.5 | 13 | 29.5 | 27 | BST-M20-21.2 | BST-M20B-31.5 |
M25×1.5 | 17 | 21.2 | 31.5 | 13 | 29.5 | 27 | BST-M25-21.2 | BST-M25B-31.5 |
M25×1.5 | 20 | 28.5 | 34 | 13 | 38 | 35 | BST-M25-28.5 | BST-M25B-34 |
M32×1.5 | 23.5 | 28.5 | 34 | 15 | 38 | 35 | BST-M32-28.5 | BST-M32B-34 |
M32×1.5 | 25.5 | 34.5 | 36 | 15 | 44 | 41 | BST-M32-34.5 | BST-M32B-36 |
M40×1.5 | 29 | 34.5 | 36 | 15 | 44 | 41 | BST-M40-34.5 | BST-M40B-36 |
M40×1.5 | 33 | 42.5 | 37 | 15 | 52 | 50 | BST-M40-42.5 | BST-M40B-37 |
M50×1.5 | 43 | 54.5 | 49 | 17 | 68 | 65 | BST-M50-54.5 | BST-M50B-49 |
M63×1.5 | 48 | 54.5 | 49 | 17 | 68 | 65 | BST-M63-54.5 | BST-M63B-49 |
Cable Glands | Waterproof Enclosure | Corrugated Tubing Fitting |
Nylon Cable Tie | Stainless Cable Tie | Cable Tie Bundler Tie Gun |
1.Introduction Of Company
Beisit Electric (Hangzhou) Co.Ltd.:
Beisit Electric Tech (Hangzhou) Co.,Ltd. is a leading manufacturer and supplier for high quality waterproof cable glands and and cable accessories, specializing in Design and manufacture strictly under the electrical standard of GB, IEC,EN and UL.
Beisit is considered to be innovative and partner for flexible application. With a strong tooling workshop and lab centre, the company is able to make quick response to customization request.
2.Factory View
3.Our Team
4.Certificates
5.Exhibitions
1.Trade Items Of Products
Payment | L/C,T/T,Western Union,MoneyGram,Paypal |
Port | Shanghai or Ningbo |
MOQ | 500PCS |
Supply Ability | 2Twenty-Foot Container/Week |
OEM | Accept |
Delivery | A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port |
2.Packaging Of Products
A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton
B. Common Packing:Colorful Inner Box + Export Carton
C. Customized Packing: OEM Label, Inner Box, Blister, etc.
Delivery
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
Q: Are you a trading company or a manufacturer?
A: We are factories and goods that we export ourselves.
Q: How long is your delivery time?
A: We have the ability to deliver quickly, fully automated production lines to increase production efficiency, and can be shipped within 3-7 days.
Q: Do you provide samples? Is it free?
A: Yes, we can provide samples for free, but do not pay for shipping.
Q: What are your advantages?
1. Independent intellectual property rights (products have obtained relevant patents for invention patents and utility models in China and Europe, and cooperated with many research institutions such as Germany and Taiwan)
fessional talent (professional technical team: design, programming, research and development, manufacturing and other professionals 62 people)
3. precision equipment (the equipment is mainly imported from Germany, Japan, South Korea and Taiwan, with advanced production equipment and manufacturing processes in the industry)
4. In China, it is the first company in the industry to standardize and set standards.
5. product certification (UL, VDE, TUV, SGS, RoHS, RAECH, IP68, etc. certification and testing)
Q: How about after sales service?
A: Any feedback or comments are welcome. We will work hard to make the best assistants to give you the greatest satisfaction.
