Home > Products > Hydraulic valve > 1/2'' 3 Way Ball Valve Flow Patterns L Port With Mounting Pad 1000PSI NPT Stainless Steel (304) Ball Valve ISO-5211

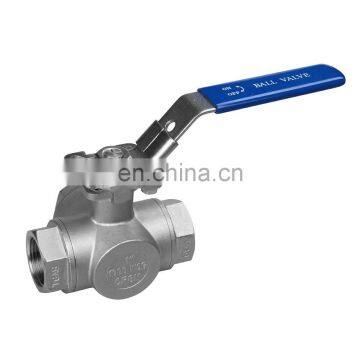

1/2'' 3 Way Ball Valve Flow Patterns L Port With Mounting Pad 1000PSI NPT Stainless Steel (304) Ball Valve ISO-5211
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
1/8'' BSP/NPT Thread Hydraulic 2 Way High Pressure Flange Ball Valve Made of Brass or Stainless Steel
-
High Hardness HRC60 a Variety of Sizes Available 1000bar Metal To Metal Sealed 3 Way Ball Valve
-
High Pressure Carbon Steel Stainless Steel 2 Way Ball Valve With Handle
-
Hot Sale Factory Direct Supply Water Treatment PVC Plastic Double Ball Valve Union Adapter
-
2020 New Style High Pressure BSP NPT Thread 2 Way 1/4''stainless Steel Carbon Steel Ball Valves With Handle
-
Garden Irrigation 1/4'' 2 Way High Pressure Compression Lever Ball Valve 3 Buttfly Flow Control
Product Description
Product Description
Two way and three way ball valves are the most common types of ball valves. Three way ball valves are especially useful because they can be set up in ways that simplify the control of gas and fluid flow. For example, they can be used to divert the flow of oil from one tank to another. The stainless steel three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction.
Features and Materials
Materials:
1. Body: 304 Stainless steel
2.Seat and seals: Pure teflon
3.Wide Variety of Seal Materials Available, we can design and change the materials according to Customer’s usage.
Features:
1. These L-port valves can be used as either a diverter valve or a selector valve. When using as a diverter valve, inlet flow to the center inlet port is diverted to either side outlet port one or side outlet port two. When using as a selector valve, there are two separate inlet ports (side ports) and one common outlet port (center port).
2. Cut of or shut off flow and switch flow between two different sources
3. Combine the flow from two different sources, alternate flow between two different destinations
4. Divert flow coming from one source to another destination and split flow coming from one source between two outgoing destinations
5. Low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings.
6. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
7.Limits on how far a ball valve handle can rotate are provided by handle stops of some sort). These are usually extensions of the handle and the top of the valve body. They function by interfering with handle rotation. These stops prevent the handle from turning beyond a set range of motion.
Specifications
