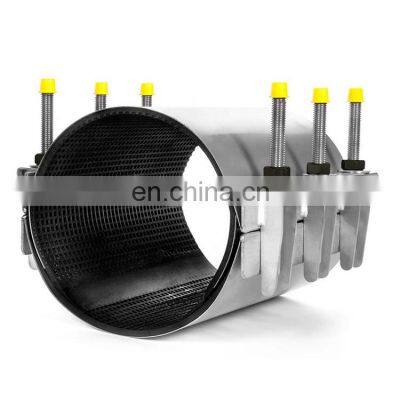

Double-Section Pipe Repair Coupling Used On New PipeLines And Repairing Pipe Leaks
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Quality Factory Direct Supply M20*1.5 x 1/2 NPT Thread Stainless Steel Nipple Adapter Hose Fittings
-
Hot Sale 10% Discount 1/2\" Male x 1/2 NPT Thread Nipple Stainless Steel 304 Threaded Pipe Fitting
-
Hot Quality No-leak Easy Connect Fittings 3/4 Inch Solid Brass Female and Male Garden Hose Quick Connect
-
High Quality Factory Direct Supply Tube 8 MM Plastic Tee Pneumatic Hose Pipe Fittings
-
High Quality SS 304 Straight 1/4 Inch Male NPT Thread Pneumatic Air Tube Hose Fittings Insert 6MM Pipe
-
China Manufacturer Female and Male 3/4 Inch BSP Thread Brass Garden Hose Quick Connector for Water Gun
Product Description
Products Description
The Free Fit Repair Coupling is ideal for all situations where you need to make a permanent repair under pressure. Simply open up the coupling, wrap it around the pipe and fasten - you have repaired the pipeline in minutes and avoided the need for costly downtime.
The Repair Coupling comes with no loose parts and features our standard gasket which actively seals onto the pipe. The range is available up to 3000 mm OD and in widths up to 410 mm wide. The Free Fit Repair Coupling is used throughout the water, process, oil & gas and marine industries.
The Repair Coupling comes with no loose parts and features our standard gasket which actively seals onto the pipe. The range is available up to 3000 mm OD and in widths up to 410 mm wide. The Free Fit Repair Coupling is used throughout the water, process, oil & gas and marine industries.
Specifications
Material | Stainless Steel | Shape | Equal | ||||
Head Code | Round | Shell Material | AISI Stainless Steel | ||||
Suitable Pipe | Water ,gas,oil Pipeline | Usage | Pipe Leak Repair | ||||
Component/Material | M1 | M2 | M3 | M4 | |||
Shell | AISI 304 | AISI 304 | AISI 316L | AISI 32205 | |||
Bridge Plate | AISI 304 | AISI 304 | AISI 316L | AISI 32205 | |||
Screw Hole Tie Rod/Tie Rod | AISI 1024 Hot Dip Galvanized Steel | AISI 304 | AISI 316L | AISI 32205 | |||
Screw | AISI 1024 Hot Dip Galvanized Steel | AISI 304 | AISI 316L | AISI 32205 | |||
Gear-Ring | AISI 301 | AISI 301 | AISI 301 | - | |||
EPDM Rubber Sealing Sleeve | Temperature:-20℃ to +120℃ Medium:Available for various kinds of water, drainage,air solid and chemicals. | ||||||
NBR Rubber Sealing Sleeve | Temperature:-20℃ to +80℃ Medium:Available for gas,oil,fuel and other hydrocarbon. | ||||||
MVQ Rubber Sealing Sleeve | Temperature:-75℃ to +200℃ | ||||||
VITON Rubber Sealing Sleeve | |||||||
Features:
Double-Section pipe repair coupling is mainly used on the connection of new pipelines and also for the repairing of pipe leaks. Repairing the pin holds and breaks caused by aging or rusting. It has advantages of working under pressure and no need of changing pipes. Safe, convenient, effciency and easy to work with .Performs well in mal-condition.
Application
Crude oil pipeline, gas/natural gas/fuel pipeline, supply/drainage water pipline, aviation/automotive special pipline, lubricating oil pipeline, mud slag pipeline, suctionpipline, flushing power pipline, cable protection pipeline, sea/fresh water pipeline, turbine pipeline, air conditioning pipline, fire line, ventilation pipline, compressed air pipeline and etc.
