Chinese Absolute rotary Encoder Modbus RTU Output 12 bit single turn encoder
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
New Rotary Quadrature Encoder ECN1313 2048 For Elevator Parts
-
quadrature sin cos encoder ERN1387
-
Universal CYYZ11 Series 4-20mA Pressure Sensor / Transmitter
-
High Sensitivity YGC-TS Soil Moisture Meter 0-100% RH Range
-
Original Electronic Hand Wheel Manual Pulse Generator Fanuc A860-0203-T001
-
Fanuc CNC HandWheel Manual Pulse Generator A860-0203-T010/T013/T014
Product Description

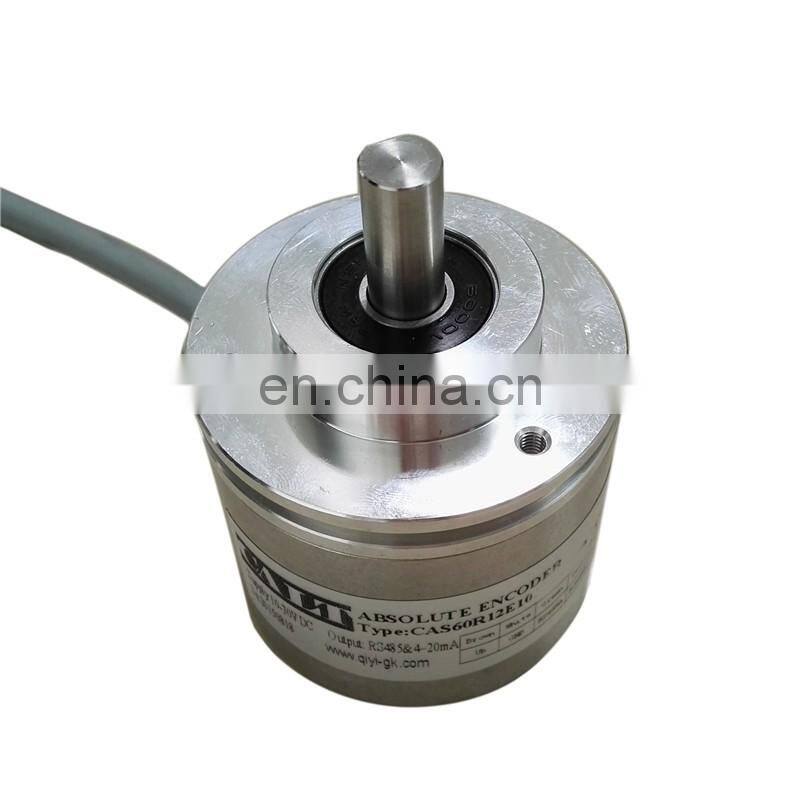

Chinese Absolute rotary Encoder Modbus RTU Output 12 bit single turn encoder
Features:
* Internal absolute code disk. Digital valued. Signal is resistant from temperature and mechanical movement. No zero drift.* Modbus RTU output.
* Each lap 12 high resolution encoder, 4096 times in a row, working range.
* Direction setting External setting line can preset the position. Convenient installation and no need positioning.
* Wide working voltage ,low power consumption.
* Clamping flange or synchronous flange.
Product Description
Specification
Operating Voltage | 10-30Vdc polarity protection |
Current Consumption | < 40Ma (24V power supply) no load |
Output Signal | Modbus RTU output Conform to the standard of GB/Z19582 Settable for length/ angle /velocity measurement |
Linearity Resolution | 1/4096 |
Repeatability Precision Signal adjustment | Repeatability ±2BIT( Actual precision related with installation and shaft concentricity.) Resolution or direction settable, external setting line preset functiion. |
Operating Temperature | -25—80℃ Programming temperature range：0℃～＋70℃ |
Storage Temperature Protection class Vibration & shock | -40—80℃ IP67 for housing IP65 for shaft 20g，10～2000Hz；100g，6ms |
Permissible Rotation Rate | 2400rpm |
Connection Cable | 1m 8-core shielded cable. |

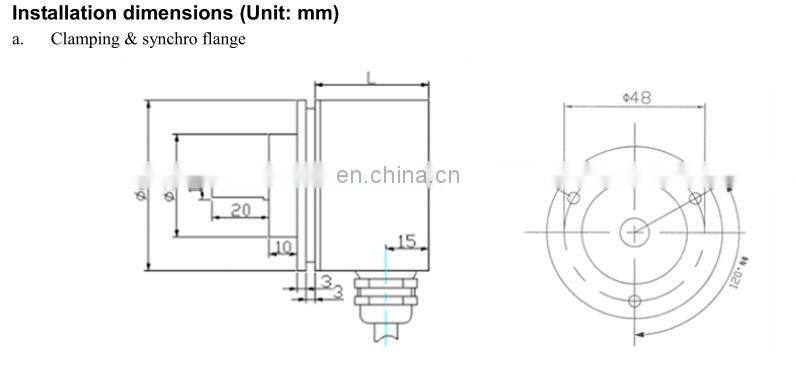

Overall Feature | Clamping flange or synchronous flange, metal enclosure, sealed dual-bearing structure ( see attached drawing of overall dimension) |
Details Images
