Narrow V-belt
US$ 0.5 - 100
/ Set
1 Set(Min. Order)
- SHANGHAI
- T/T
- 7 days
You May Like
Product Details
| Brand Name | CHY | Place of Origin | China | |
| Model Number | Type: Metric SPZ, SPA, SPB, SPC Imperial 3V/9N, 5V/15N, 8V/15N |
Product Description

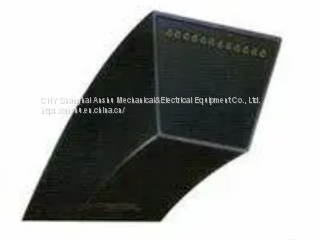

Narrow V-belt
Narrow V-belt is a new type of tape developed on the basis of V-belt. Its structure is very similar to V-belt, and its performance is better. Compared with the V-belt, it has the advantages of high transmission power, high strength, small elongation, high efficiency and long life, and can adapt to the transmission requirements of large speed ratio and short center distance, and also has excellent characteristics such as oil resistance and antistatic.
| Specification | ||||||||
| Size Type | Metric（SP series） | Inch（ZV series） | ||||||
| SPZ | SPA | SPB | SPC | 3V/9N | 5V/15N | 8V/25N | ||
| Top width | 10.0 | 13.0 | 17.0 | 22.0 | 9.0 | 15.0 | 25.0 | |
| Height | 8.0 | 10.0 | 14.0 | 18.0 | 8.0 | 13.0 | 23.0 | |
| Pitch width | 8.0 | 11.0 | 14.0 | 19.0 | ||||
| Angle | 40° | 40° | 40° | 40° | 40° | 40° | 40° | |
| Length | mm | 635～3556 | 600～6350 | 800～8890 | 1524～12700 | 635～3556 | 1270～8890 | 1524～12700 |
| Inch | 25～140 | 23～250 | 31～350 | 60～500 | 25～140 | 50～350 | 60～500 | |
