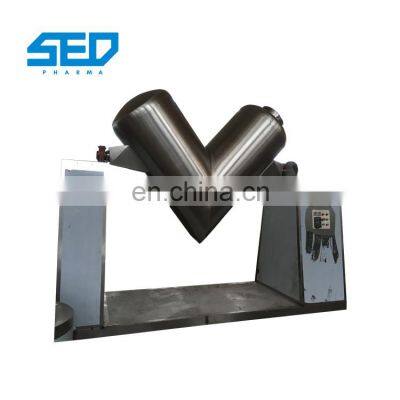

High Efficiency V Type Dry Powder Mixer Mixing Machine for Fertilizer Powder
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Automatic Cosmetic Powder Medicine Powder Mixer Machine V Type
-
Low Maintenance Cost V Type Pharmaceutical Dry Powder Mixing Equipment
-
Industrial Multi-functional V Type Food Flour Powder Mixer Equipment
-
18 r / min Stirring Speed Dry Detergent Spice Powder Mixing Machine
-
Multi-functional Herb Powder Milk Powder Powder Paint Mixer Machine
-
200 L / batch Automatic V Type Mixer Machine For Food Milk Dry Powder
Product Description
Recommend Products
Products Description
Simple Introduction:
The mixer is used for mixing the dry material grains in the medical, chemical, food, metallurgical and other industries.
The mixing barrel structure is unique. The mixing efficiency is high. There is no corner that can not be reached. The barrel uses the stainless steel and its internal and external walls are polished. The outside appearance is beautiful. The mixing is uniform, with wide application. The mixer meets GMP standard.
Main Feature:
1)It is used to mix the dry-powder, granular materials with good liquidity.
2)It consists of two asymmetric cylinders. The materials can flow as vertical and horizontal direction. The mixing uniformity will be above 99%.
3)It adopts vacuum feeding under sealing state. There’s no driving structure inside and be clean, no dead corner in according with GMP standard.
Main Technical Data:

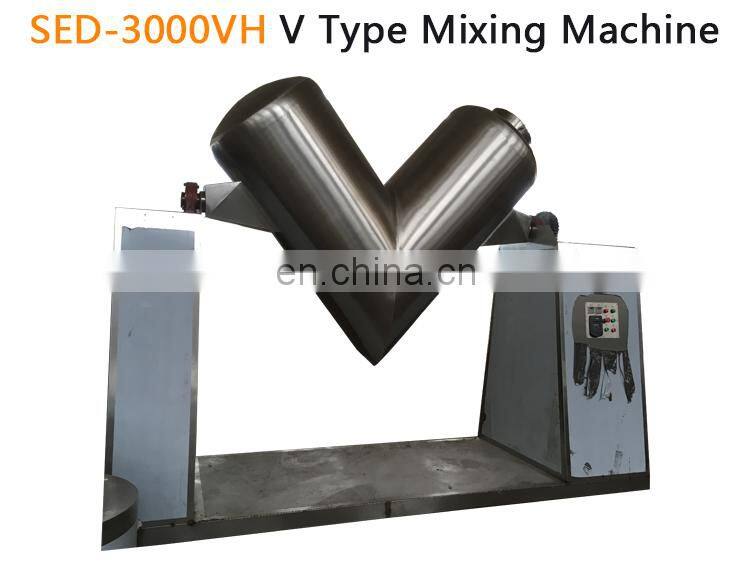

Model Name: | SED-3000VH |
Total Volume: | 3000L |
Capacity: | 1100kg/batch |
Material Fed in Time: | 8-15min |
Mixing Time: | 8-10min |
Rotating Speed: | 12r/min |
Motor Power: | 9Kw |
Total Weight: | 2200kgs |
Product Specifications:
item | SED-5VH | SED-100VH | SED-200VH | SED-400VH | SED-500VH | SED-3000VH |
total volume | 5L | 100L | 200L | 400L | 500L | 3000L |
productive capacity | 1-1.4kg/batch | 40-60kg/batch | 20-100kg/batch | 200L/batch | 300kg/batch | 1100kg/batch |
material fed in time | 3-5min | 3-5min | 3-5min | 3-5min | 3-5min | 8-15min |
mixing time | 4-8min | 4-8min | 4-8min | 4-8min | 4-8min | 8-10min |
rotating speed | 24r/min | 20r/min | 12r/min | 18r/min | 18r/min | 12r/min |
motor power | 0.55kw | 0.75kw | 1.1kw | 1.5kw | 1.5kw | 9kw |
rotating height | 1580mm | 2400mm | ||||
weight | 500kg | 650kg | 1150kg | 1250kg | 2200kg |
Details Images

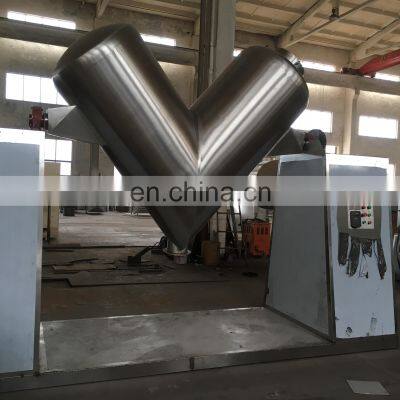

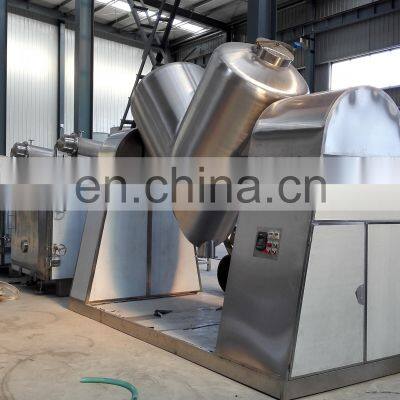

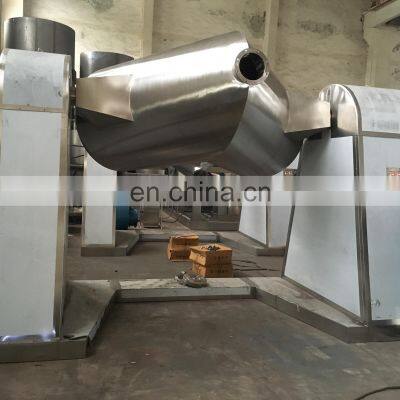

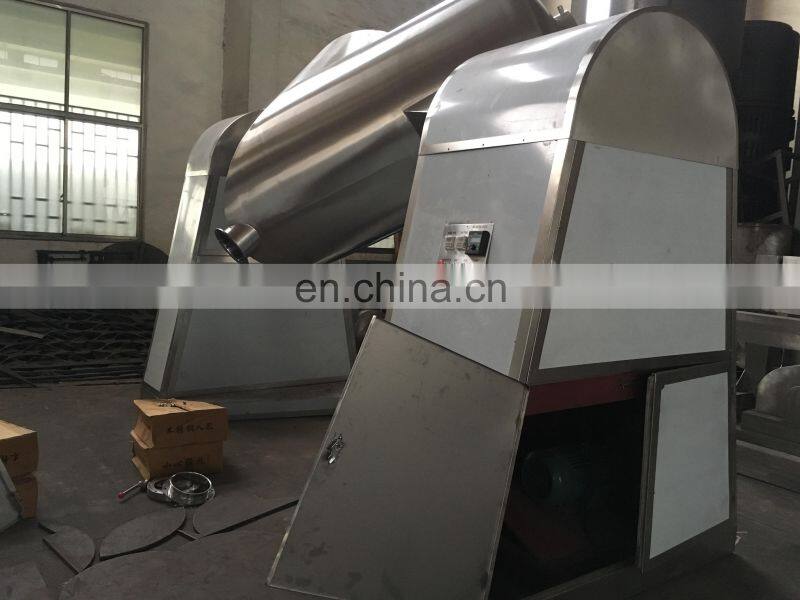

Machine detialed pictures:
