Tablet Capsule Honey Oil Blister Packing Machine Automatic
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Good Machine For Vitamin Capsule Butter Jam Blister Packing
-
Nice Automatic Small Cosmetic Honey Pharmaceutical Hot Sealing Blister Packing Machine
-
Fully Automatic Capsule Honey Oil Pharmaceutical Hot Sealing Blister Packing Machine
-
Hot Forming Aluminum Foil Blister Pharmaceutical Hot Sealing Packing Machine Automatic
-
Hot Selling Capsule Tablet Liquid Pharmaceutical Hot Sealing Blister Packing Machine
-
Good Aluminum Foil Tablet Food Pharmaceutical Hot Sealing Blister Packaging Machine
Product Description
Recommend Products
Products Description

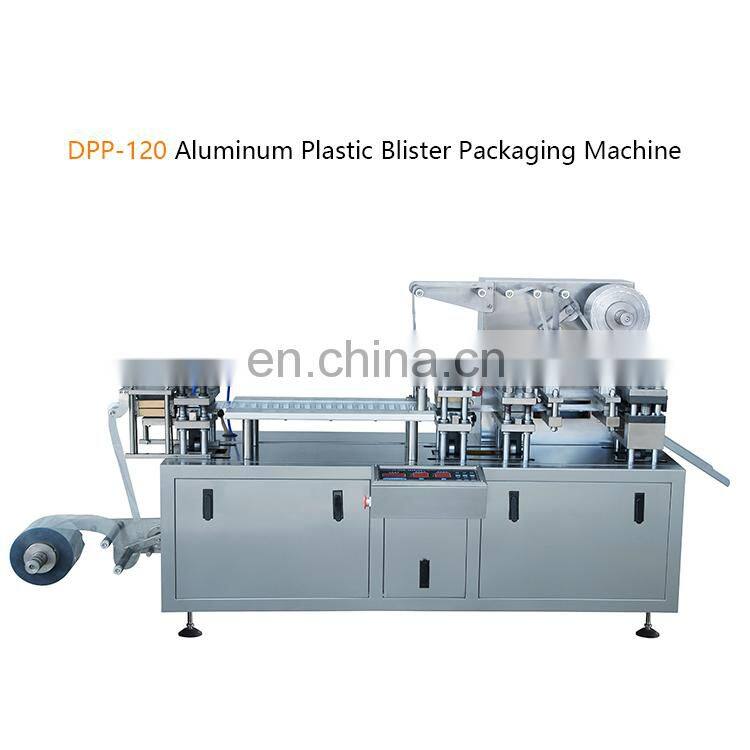

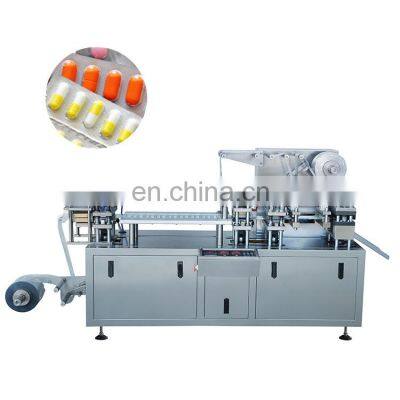

This blister packing machine is specialized using for packing capsule, tablets and other related pharmaceutical products. DPP-120 Model blister packing machine is our newest model developed for small scale food supplement factory and small scale pharmaceutical lab
usage which can achieve both Alu Alu blister pack and alu pvc blister pack by changing mould. The machine is widely welcomed in American market, since their food supplement market is open to small scale manufacturer and the machine can meet NSF standard.
usage which can achieve both Alu Alu blister pack and alu pvc blister pack by changing mould. The machine is widely welcomed in American market, since their food supplement market is open to small scale manufacturer and the machine can meet NSF standard.
Model | DPP-120 |
Blanking Frequency: | 15-40Punches/min |
Sheet’s quantity of one blanking: | 1sheets |
Capacity: | 900-2100sheets/hour |
Adjustable scope of feed travel: | 10-110mm |
Max. Forming: | 120*110*15mm |
Power Supply: | 380V 50Hz 5.5Kw |
Wrapper Specification: PVC: PTP: | 120×(0.15-0.5)mm 120*(0.02*0.035) mm |
Overall Dimensions: | 1650*500*1100mm |
Packaging Dimension: | 1800*650*1250mm |
Weight: | 650Kg |

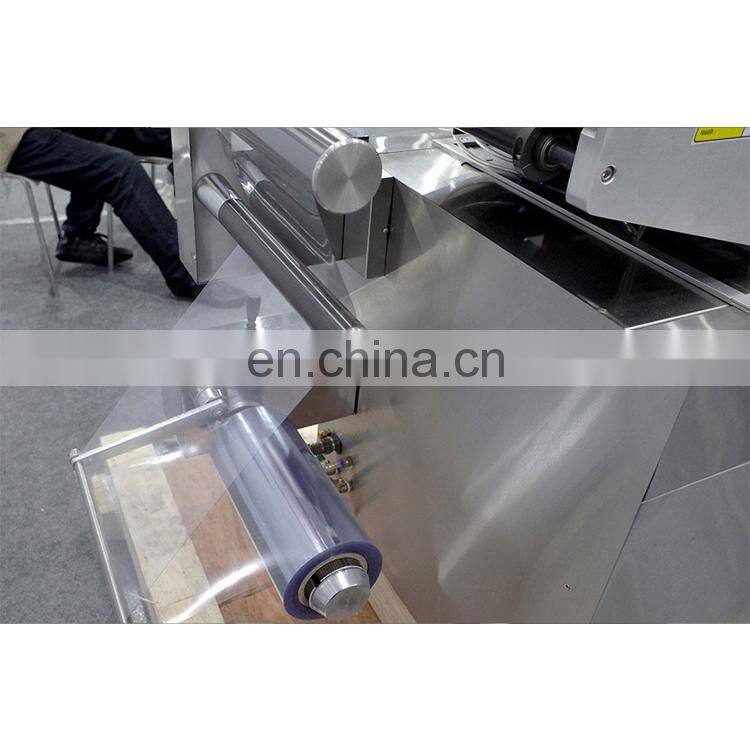

1.Travel scope can be adjusted. Mould is located by located groove so that it’s easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
2.The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
3.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
4.The equipment of trace pressing, batch number printing and scrap-collecting can be chose.
5.Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.

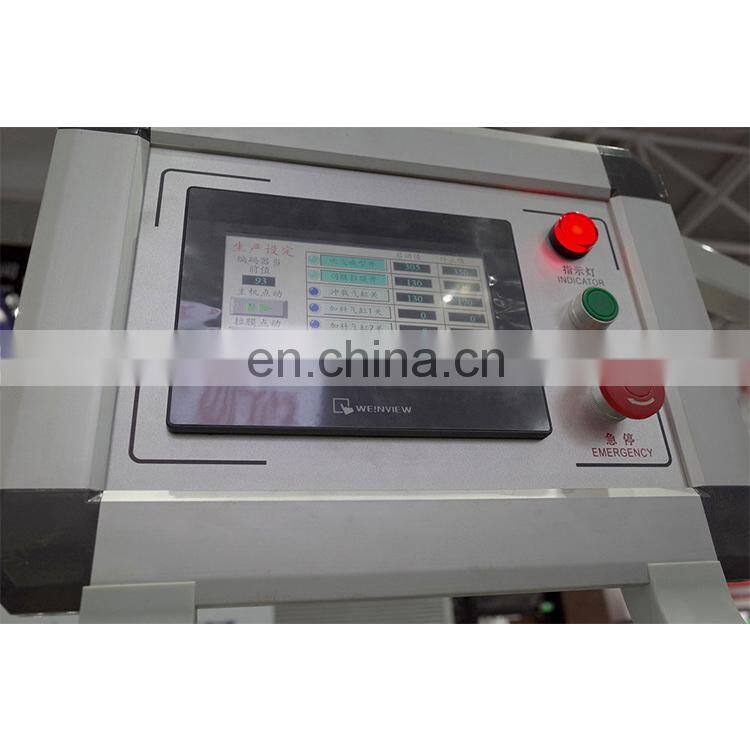

6.Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).
2.The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
3.The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
4.The equipment of trace pressing, batch number printing and scrap-collecting can be chose.
5.Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.
6.Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).
The main difference to the old model(DPP-88)
1. Four Columnsfor Forming Station, Sealing Station and Perforation More Stronger for machine structure and longer life time running.
2. Machine is also applied to produce Alu Alu Package in future.
3. Four Station Adjusting Hand Wheel makes machine easier adjusting. (DPP-88 only gets two adjusting wheel, when you get different moulds, it will take time for mould changing over)
4. Mechanical Transmission Structure as same as DPP-250 Model, more clean and simple which is complete meet GMP/NSF compliance.
2. Machine is also applied to produce Alu Alu Package in future.
3. Four Station Adjusting Hand Wheel makes machine easier adjusting. (DPP-88 only gets two adjusting wheel, when you get different moulds, it will take time for mould changing over)
4. Mechanical Transmission Structure as same as DPP-250 Model, more clean and simple which is complete meet GMP/NSF compliance.

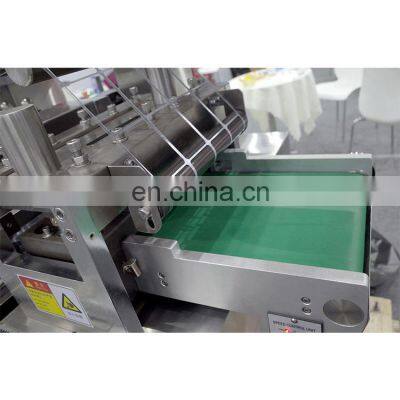

Details Images
