Home > Products > Packaging?Machine > Fully Automatic Ampoule Blister Packing Machine For Tablet Pill Softgel Capsule
Fully Automatic Ampoule Blister Packing Machine For Tablet Pill Softgel Capsule
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Fully Automatic Butter Blister Packing Machine Liquid Blister Packing Machine
-
Fully automatic high speed tablet blister packing machine pharmacy blister packing machine
-
Fully automatic high speed blister cartoning packing machine masala blister packing machine
-
DPP260A Fully Automatic Honey Butter Sauce Tablet Blister Packing Machine
-
Fully automatic egg blister chocolate packaging machine blister packing machine pill
-
Fully automatic medical blister packaging packing machine blister candy packaging machine
Product Description
Recommend Products
Products Description
TECHNICAL PARAMETER
The effective width of packaging material： | 270mm； |
Guide roller width： | 280mm（Aluminum alloy material） |
Aluminum Aluminum working speed： | 15 cuttings/min～40cuttings/min； |
Aluminum Plastic working speed： | 15 cuttings/min～55cuttings/min； |
Machine max working speed： | 60cuttings/min； |
PVC max diameter： | φ300mm； |
PTP max diameter： | φ250mm； |
Tropical foil max diameter： | φ300mm； |
Waste collection max diameter： | φ400mm； |
Cold forming(ALU ALU)forming stretch area and depth： | 250mm×100mm×12mm |
PVC forming area and depth： | 250mm×100mm×13mm |
Servo motor control stepless adjustable stroke： | 10mm～120mm |
Air volume flow： | ≥0.36m3/min |
Total machine power： | 380V、50Hz、4KW（ALU ALU power）； |
Equipment split size(mm)： | ① 1850mm×650mm×1650mm |
Packing size(mm): | 3900×1100×2000 |
Machine net weight： | 2T |
APPLICATION
The biggest characteristic of this equipment is using mold positioning design, convenient for customers to replace the mold, reduce debugging time and material cost, the key parts are made of high quality stainless steel and high-grade Aluminum Alloy materials by machining center (CNC), mirror line cutting and other high precision CNC equipment into one processing type, retain the original texture finishing, highlight the noble quality. The transparent protective cover of fine workmanship arc to ensure the safety and the drawing processing of stainless steel cover operation add unlimited style for the overall design, the mechanical products can also bloom artistic charm, the whole process of the details of the pursuit of perfection concept throughout the design and production.PERFORMANCE AND CHARACTERISTICS
1. The whole machine can be divided into packaging to enter the 2.2 meter elevator and split purification workshop.
2. The key components are all made of high quality stainless steel and high-grade aluminum alloy material.

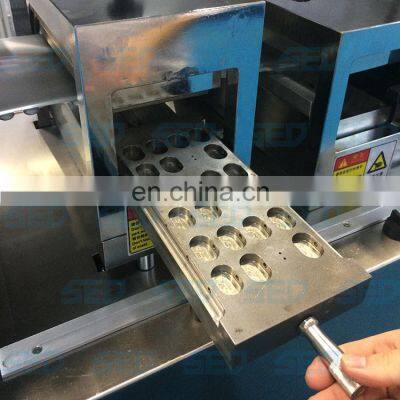

3. Novel mold positioning device, It is very convenient to replace the mold with the positioning mold and the whole guide rail ,to meet the general requirements of quick mold change.
4. For an independent station make indentation and batch number separation, so as to ensure the clarity of the indentation and printing (indentation and batch number can also be in a position).
5.The transmission of the machine is isolated from the work area to prevent pollution and facilitate cleaning.
6. The material feeding is controlled by the precision servo motor, the synchronous precision and the length of the stroke are randomly set by the man-machine interface.
7.The heat sealing cylinder is placed under the heat sealing station to reduce machine center, enhance the running stability of the equipment.For the region and the transmission mechanism is completely isolated to prevent pollution, easy to clean up.
8. Aluminum / plastic (hot forming) and aluminum / aluminum (cold forming) General Institutions: Aluminum/Aluminum packing just change the mold and corresponding feeder is OK.
Details Images
WORKING STEPS
