Product Description
Recommend Products
Products Description
SED-200YT Round Bottle Single Side Labeling Machine With Ribbon Coding Device(UL)
Include Transparent Photoelectric sensor
Brief Introduction
SED-200YTB model vertical type round bottle Round Bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.
Working principle:
Put the bottles into the conveyor system (or Auto Bottle Ordering Machine is optional), the conveyor will transport the bottles to labeling station. There is automatic sensor equipped on the machine will sense the passed bottle and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.
Main Feature:
?The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)
?PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.
?The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.
?The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.
?Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.
?The position of height and backwards or forwards are adjustable.
Configuration
Name | Brand |
Motor | Sankai Electric |
photoelectric sensor | Sick German |
Pneumatic Components | Airtec International Group |
Leakage Protection | CHINT |
Switch button | Schneider Electric (France) |
Human interface | Taiwan Delta |
Driver Motor: | Stepping motor |
Operation: | Right or left |
Running speed: | 80-150 bottles/min |
Applicable Range: | Bottle:Ф 15 - Ф diameter 100mm Height 40-180mm Label size width 10-150mm length 15-200mm |
Coil diameter: | Ф 75mm label |
Weight: | 300kg |
Power supply: | AC220V 0.5Kw 60HZ Clients Required AC208V, Single Phase,2wires ,Remark: UL |

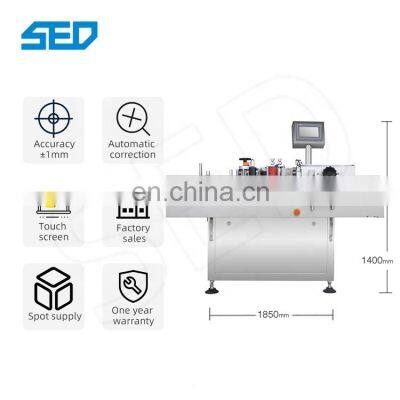

Overall Size: | 2000X1300X1500 |
*Ribbon Coding machine: | HP 260Q |

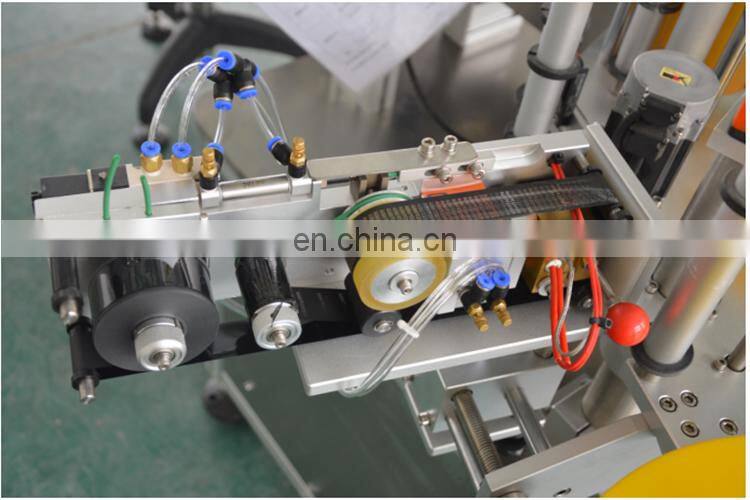

Details Images
Noted that: Transparent label photoelectric sensor need extra 1000USD
Coding Machine for printing Bach Number
