Home > Products > Mixing Equipment > Mixing Equipment/ EYH Series Two Dimensions Mixer
Mixing Equipment/ EYH Series Two Dimensions Mixer
- T/T Credit Card
You May Like
Product Description
mixing equipment/ EYH Series Two Dimensions mixer
EYH Series Two Dimensions mixer
Principle:

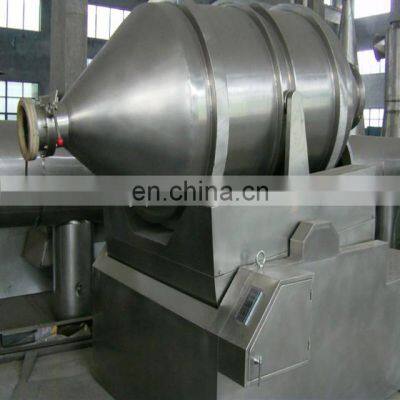

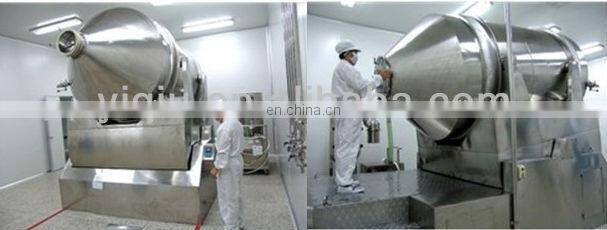

EYH Series Two Dimensions mixer mainly consists of three big parts. rotating cylinder,swinging rack and frame. The rotating cylinder lies on the swinging rack,supported by four wheels and its axial fixation is done by two stop wheels Two of four wheels are driven by rotating system to make the cylinder rotate. The swinging rack is driven by a set of crandshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
Features:
The rotating cylinder of EYH Two Dimensionals Mixer can achieve two motions at the same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack. Materials to be mixed will be rotated when the cylinder is rotating,and will be mixed from left to right and vice versa when the cylinder is swinging.As the result of these two motions,materials can be mixed fully in a short time. EYH Two Dimensions Mixer is suitable for mixing of all powder and granule materials.
Technical parameters:
Model |
|
|
| Overall dimension(mm) powewr(kw) | |||||||
A | B | C | D | M | H | rotiaotn | sway | ||||
EYH100 | 100 | 0.5 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
EYH300 | 300 | 0.5 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
EYH600 | 600 | 0.5 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
EYH800 | 800 | 0.5 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
EYH100 | 1000 | 0.5 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
EYH1500 | 1500 | 0.5 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
EYH2000 | 2000 | 0.5 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
EYH2500 | 2500 | 0.5 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
EYH3000 | 3000 | 0.5 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
EYH5000 | 5000 | 0.5 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
EYH10000 | 10000 | 0.5 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
EYH12000 | 12000 | 0.5 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
EYH15000 | 15000 | 0.5 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
