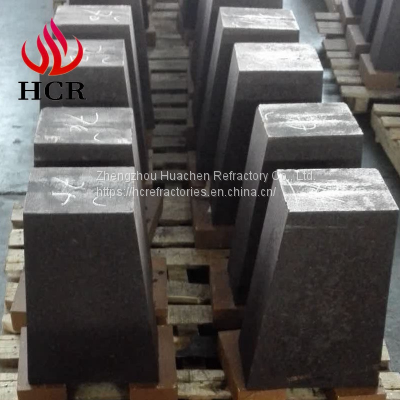

Magnesia Chromite Bricks used for glass tank furnaces with high quality from Zhengzhou Huachen refractory
- Qingdao
- T/T L/C
- 20 days
You May Like
-
Factory price of zircon corundum AZS brick ramming mass
-
High quality fused cast 1681 AZS glass melting furnace
-
Offering Chinese reliable HCR Brand refractory mullite insulating bricks mullite insulation bricks with high quality
-
High quality magnesia carbon bricks for steel ladle lining and electric arc furnace in iron&steel industry
-
High performance thermal shock resistance magnesia spinel brick for cement rotary kiln
-
high Alumina brick corundum bricks high refractoriness glass refractory
Product Details
| Brand Name | HCR | Place of Origin | China | |
| Model Number | magnesite chrome bricks | Shape | Brick | |
| Material | Other, magnesia chrome | MgO Content (%) | 50%-80% | |
| SiO2 Content (%) | 1%-3% | Al2O3 Content (%) | 1%-10% | |
| CrO Content (%) | 5%-20% |
Product Description
Overview
Quick Details
Place of Origin:
- China
Shape:Brick
Material:
- MgO
SiO2 Content (%):1%-3%
Al2O3 Content (%):
- 1%-10%
MgO Content (%):50%-80%
CaO Content (%):
- 1%
Refractoriness (Degree):Common (1580°
CrO Content (%):
- 5%-20%
SiC Content (%):1%
Model Number:
- MC
Brand Name:HCR
Product name:
- Magnesia-chrome brick
Color:Black brown
Raw material:
- Mgo, Cr2O3
Bulk Density(g/cm3):2.9-3.2
Certificate:
- ISO9001:2008
Apparent porosity/%:15-18
Packing:
- Pallet
Advantage:
- High refractoriness
MOQ:25 mt
Sample:
- Provide, free
Supply Ability
3399 Metric Ton/Metric Tons per Month
Packaging Details
Delivered goods are packed into fumigated wooden pallets with waterproof plastic film covers, and tightened with badages.
Port
Tianjing
Picture Example:
Lead Time:
Quantity(Metric Tons) 1 - 200 >200 Est. Time(days) 40 To be negotiated
Product Description
1. Product DetailsMagnesia-chrome brick is a high-level refractory product material ,which containing MgO and Cr2O3 as the main components, periclase and spinel are the main mineral components. This type of brick has high refractoriness, high temperature strength, strong resistance to alkaline slag, excellent thermal stability, and certain adaptability to acidic slag. The main raw materials for the manufacture of magnesia chrome bricks are sintered magnesia and chromite. The purity of the magnesia raw material should be as high as possible.2.Features(1).high refractoriness
(2).high temperature strength
(3).strong resistance to alkaline slag
(4).excellent thermal stability
3.Technical DataCommom Magnesite Chrome Brick
Chemical composition and technical performance | Product brand | |||
SRMG-8 | SRMG-12 | SRMG-15 | SRMG-18 | |
MgO(%) | ≥65 | ≥60 | ≥55 | ≥52 |
Cr2O3(%) | ≥8 | ≥12 | ≥15 | ≥18 |
SiO2(%) | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 |
Apparent porosity(%) | ≤18 | ≤18 | ≤18 | ≤18 |
Cold crushing strength(MPa) | ≥40 | ≥40 | ≥40 | ≥40 |
0.2MPa refractoriness under load T0.6(oC) | ≥1670 | ≥1670 | ≥1670 | ≥1670 |
Thermal shock resistance | ≥30 | ≥30 | ≥30 | |
Fused Magnesite Chrome Brick
Chemical composition and technical performance | Product brand | ||
ERMG-12 | ERMG-16 | ERMG-20 | |
MgO(%) | ≥60 | ≥55 | ≥50 |
Cr2O3(%) | ≥12 | ≥16 | ≥20 |
SiO2(%) | ≤1.5 | ≤1.8 | ≤2.0 |
Apparent porosity(%) | ≤16 | ≤16 | ≤16 |
Cold crushing strength(MPa) | ≥40 | ≥40 | ≥40 |
0.2MPa refractoriness under load T0.6(oC) | ≥1700 | ≥1700 | ≥1700 |
Thermal shock resistance | ≥15 | ≥15 | ≥15 |
Common mag-chrome brick: Cement rotary kiln, glass kiln regenerative chamber, glass tank furnace ,steel furnace lining, refining ladle, non-ferrous metallurgical furnace, lime kiln, mix iron furnace, open hearth furnace.
Direct-Bonded mag-chrome brick : Cement rotary kiln, steelmaking electric furnace lining, refining furnace(RH,VOD,EAF), non-ferrous metallurgical furnace, glass kiln regenerative chamber, lime kiln, mix iron furnace, building materials, copper smelting furnace.
Packing & Delivery
Packaging | |
About Packaging |
Pakaging size& weight |
On wooden pallets with plastic cover: 1.Wooden pallet size: as per the product sizes 2.weight of each pallet:1.5-2.0 tons | |
Delivery | |
Item | Delivery methods |
Sample | Express by air (UPS,DHL,FedEx,TNT,EMS etc.) |
Tons of goods | 1.We usually deliver them by sea/train in containers/wagons. 2.Customer's requirement is welcome. |
Test
Before delivery,we usually test at least three times by professinal testing equipments.Our company's testing equipmets are as follows:
1.High Temperature RUL Tester
2.Bulk Density Tester
3.The Pressure Tester
4.Refractoriness Tester
FAQ
Q1:Are you a manufacture or trader?A:Factory+trade(mainly factories,at the same time,we operate other related products)
Q2:Can we visit your factory?
A:Sure,welcome at any time,seeing is believing.
Q3:What's the MOQ of trial order?
A:No limit,We can offer the best suggestions and solutions according to your condition.
Q4:Which payment terms can you accept?
A:T/T,L/C,Western Union,Moneygram,Paypal are available for us.
Q5:After an order is confirmed,when to deliver the cargo?
A:it depends the quantity of the cargo.
Q6:Is your company accept customization?
A:We have own factory and excellent technical team,and we accept OEM service.
Q7:How to slove the quality problems?
A:If the products are not confirmed to customer samples or have quality problems,our compay will be responsible to make compensation for it.
Q8:Can you offers samples?
A:Of coures,samples are free but freight paid by the buyers.
Q9:What is the service life of your bricks?
A:The service life of different bricks is different.It also depends on your using condition and method.
