Home > Products > Foot Accelerator Pedal > Potentiometer Throttle (Foot Pedal) Speed Signal Device (3-Wire Pot Throttle) Model EFP-005

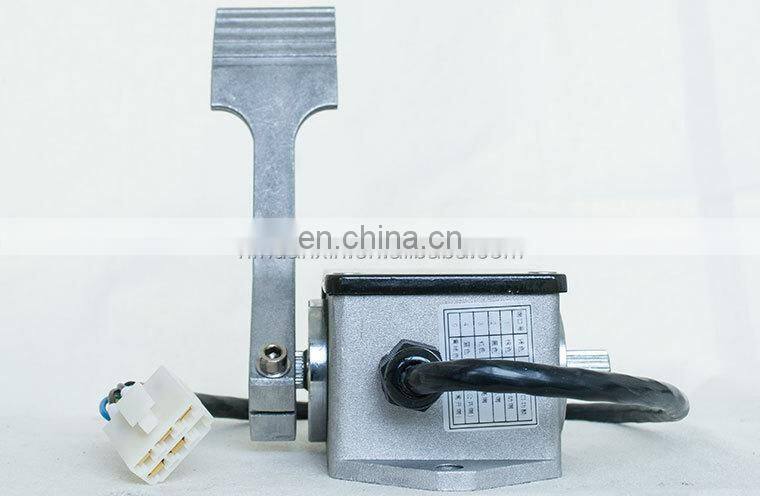

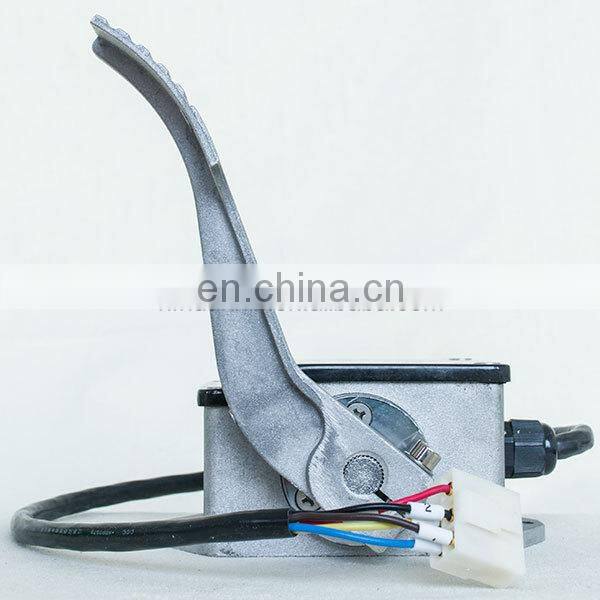

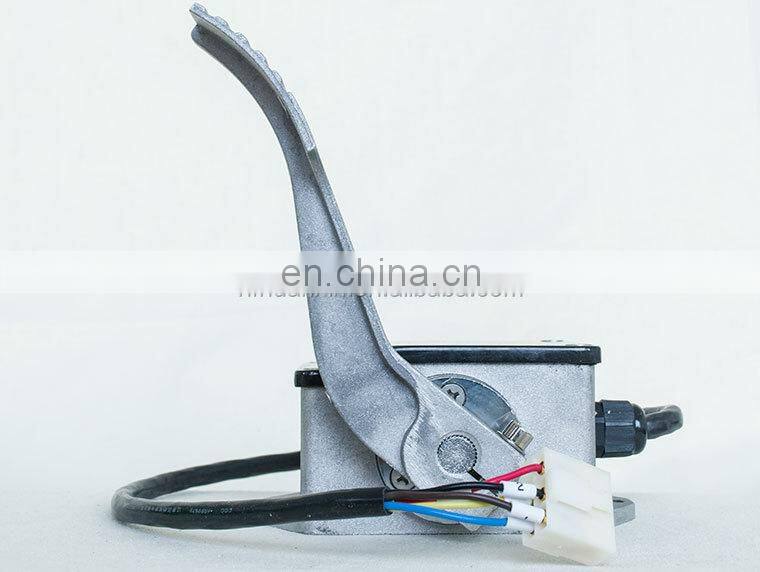

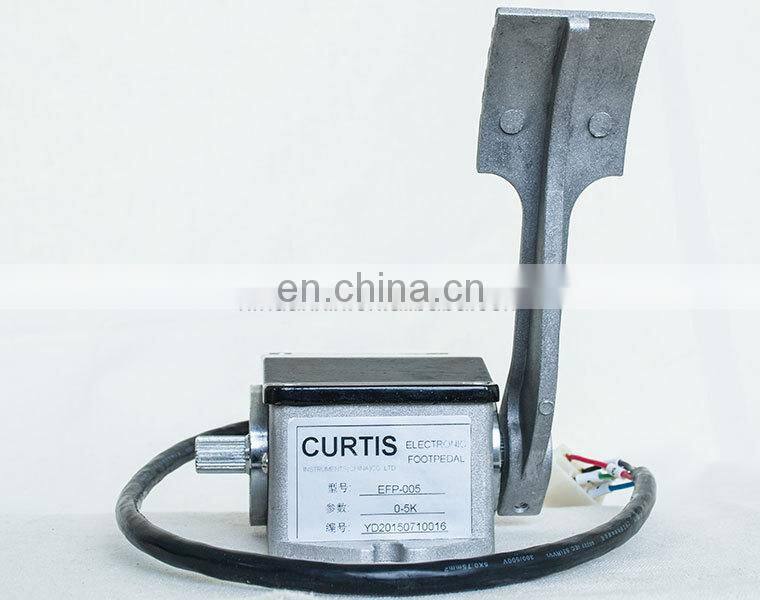

Potentiometer Throttle (Foot Pedal) Speed Signal Device (3-Wire Pot Throttle) Model EFP-005
- T/T Credit Card
You May Like
-
Electric Throttle Pedal Electronic Throttle Control For Electric Car EFP-001
-
HXJS-4805 Accelerator With 4-Pin Connector for Golf Cart 0-5V
-
EFP-005 Easy To Reach Accelerator Applied in Electric Vehicles
-
Wide Working Voltage High-Effect Accelerator With High Efficiency
-
HXJS-4805 Waterpfoot Electric Accelerator Foot Pedal For Golf Cart
-
Supplying HXJS-4805 Output Voltage 0-5V Electronic Accelerator Pedal for Curtis Controller Assembly
Product Description
Specifications:
- The foot pedal could be installed at both ends of rotating shaft
- Signal output: 0-5KΩ ± 0.1KΩ (BI potentiometer P270-033B)
- Solid metal case, ingress protection: IP55
- Installation kit is included: bolts, nuts and washes
- Mating connector is included
- Net weight: 1.20 kg (with installation kit and mating connector)
Key Features:
- Model: EFP-005 (3-wire potentiometer throttle, working with CURTIS 1204M-4201 Series Motor Controller, CURTIS 1268-5403 SepEx Motor Controller and other controllers)
- Signal output: 0-5KΩ ± 0.1KΩ (BI potentiometer P270-033B)
- Switch on/off signal: 0V - power supply voltage
- Operation temperature range: -55℃ –120℃
- Storage temperature range: -40°C - 80°C
- Ingress protection: IP55
- Mechnical lifespan: 1,000,000 times

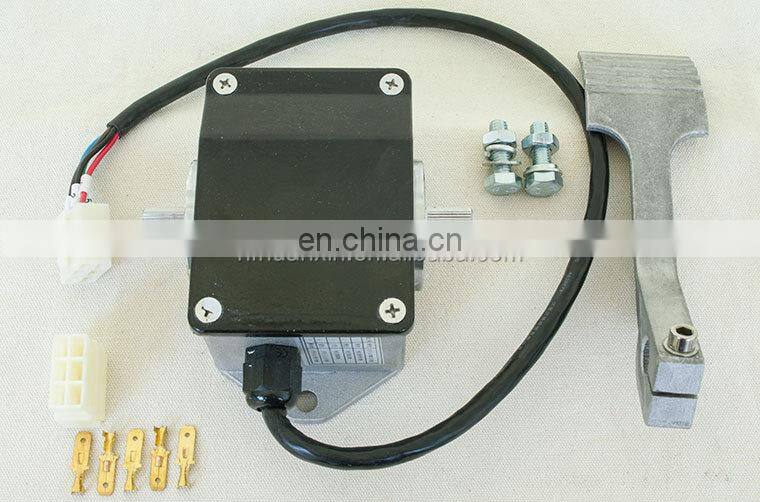

- Installation kit is included: bolts, nuts and washes
- Mating connector is included
- Net weight: 1.20 kg (with installation kit and mating connector)
- Package weight: about 1.55 kg



Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%.
