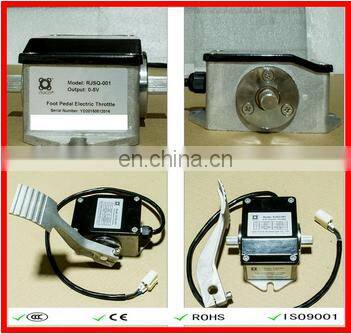

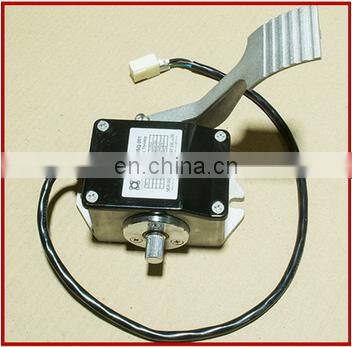

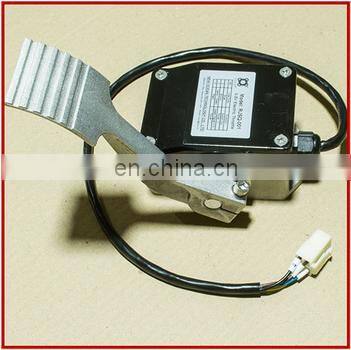

RJSQ-001 Foot Pedal Electronic Throttle Accelerator Assembly for Engineering Machinery

RJSQ-001 foot pedal electronic throttle accelerator assembly for engineering machinery

Product Description

Specifications:

• Input voltage (volt): 24-80V DC, wide working voltage range
• Signal output: 0-5V
• Maximum throttle output: 5.0V
• Minimum throttle output: 0V
• Could be installed at both ends of throttle rotation shaft (suggested installation position: right side of the throttle rotation shaft)
• Solid ZAMAC alloy case, ingress protection: IP55
• Installation kit is included: bolts, nuts and washes
• Mating connector is included
• Net weight: 1.05 kg (with installation kit and mating connector)

This RJSQ-001 is made by the same OEM manufacturer of CURTIS RJSQ-001 throttles.

The RJSQ-001 electric throttle provides an analog 0-5V output proportional to throttle position for interfacing with CURTIS PMC motor speed controllers.

Connector's definition:

Our Service

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Samples arrived often need 3-5 days.

Q3. Do you have any MOQ (minimum order quality)limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.

Q6. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer one-year warranty for our products.

Q8: How to deal with the flaw?

A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%.

Packaging & Shipping

Package:Normally we use the standard exporting packaging. We also can according to clients' request .

 Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier  we are co-operating at present.

2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.

3. By Sea: Delivery from the Shanghai sea port .

Packaging Details:Every product is strongly packed by carton box with foam inside.

Our Certification

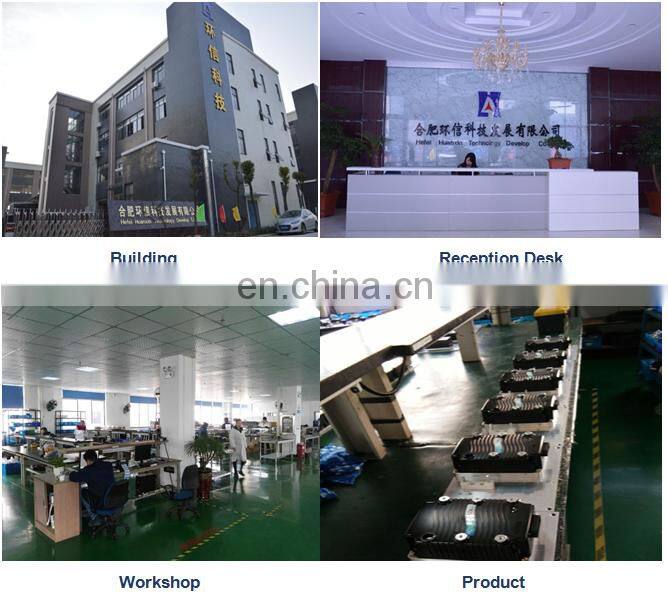

About Us
