Forklift Control Handle Assembly Manufacturers Speed Tiller Head CH-1 Operating Voltage 24-48V

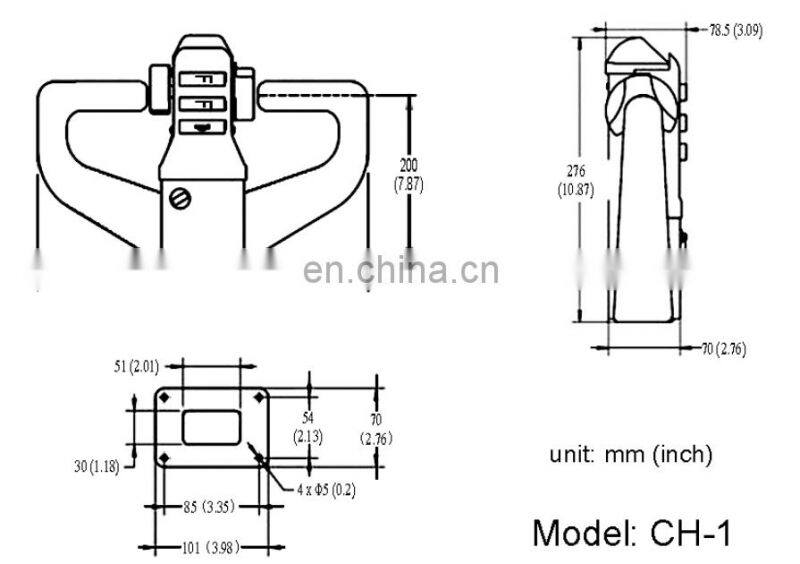

              *Model: CH-1
              *Operating Voltage: 24-48V DC nominal
              *Throttle Output: 0 - 5V DC nominal (ET-126 MCU electric throttle)
              *Maximum current (lift, lower and horn switches: 5A
              *Maximum current (forward and reverse switches): 1.5A
              *Net weight: 2.85 kg (estimated package weight: 3.70 kg)

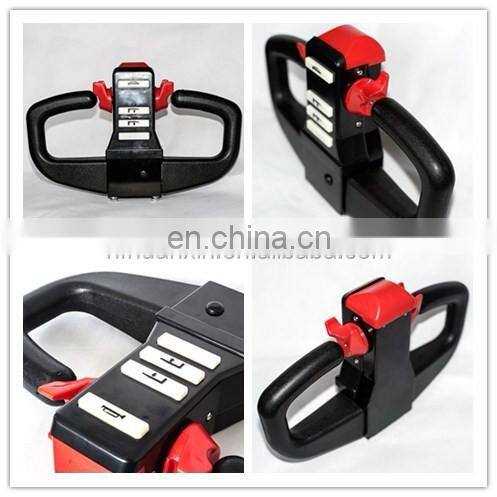

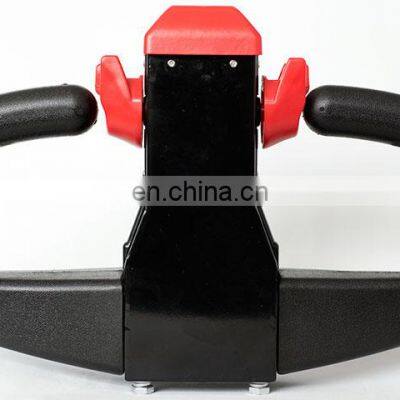

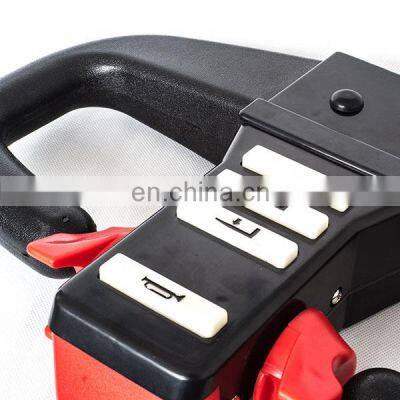

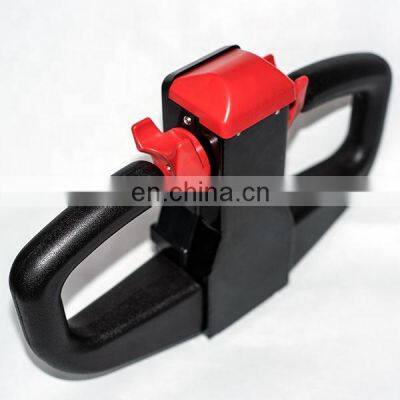

      The tiller head CH-1 is a general purpose control device, developed for material handling vehicles. Packaged in a rugged housing that offer an attractive and practical method of controlling 24-48V electric vehicles.

      Equipped with an emergency reverse switch, electronic throttle, and lift and lower switches, CH-1 is ideal for both indoor and outdoor vehicles such as pallet jacks, walkies, stackers and tow tractors.

       Input voltage: 24-48V DC
      Throttle output: 0-5V
      Max. Current (lift, lower and horn switches): 5A
      Max. Current (forward and reverse switches): 1.5A

       Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Sample needs 3-5 days.

Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
