Product Description

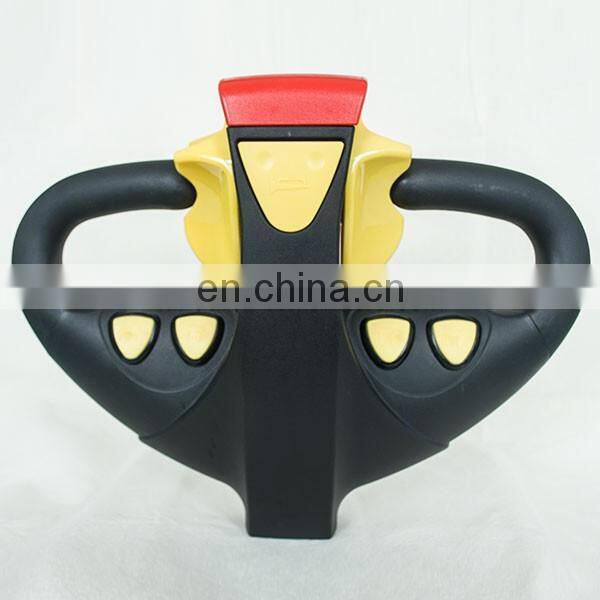

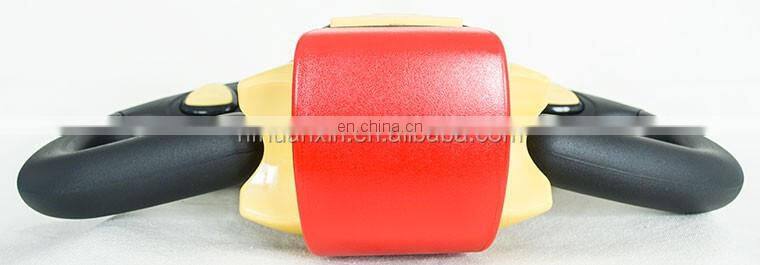

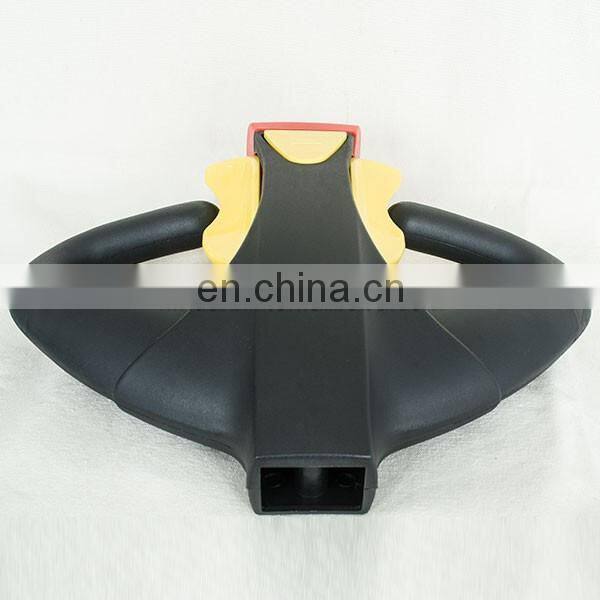

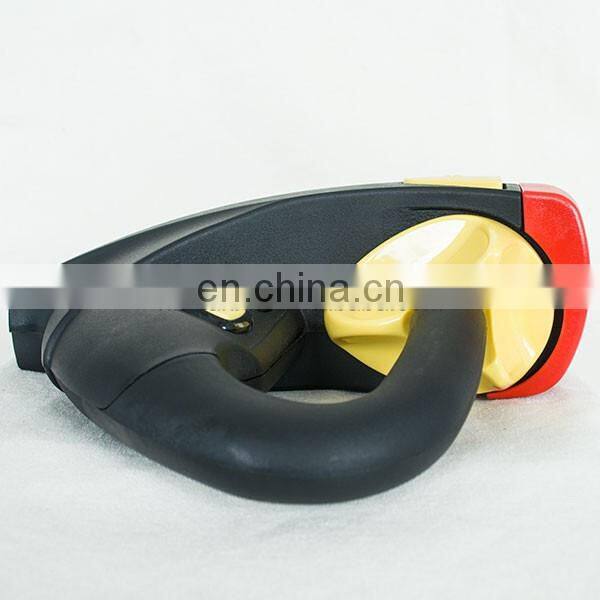

The CURTIS TH-1 series are tiller heads packaged in a rugged housing that offer an attractive and practical method of controlling 24V electric vehicles.Equipped with an emergency reverse switch, electronic throttle, and lift and lower switches rated at IP-67, these tiller heads are ideal for both indoor and outdoor vehicles such as pallet jacks, walkies, stackers and tow tractors.
Specifications:
Model: TH-1
Operating Voltage: 24V DC nominal (19.2V DC - 28.8V DC, absolute)
Throttle Output: 0.2 - 5.0V DC nominal (0.15V DC - 5.3V DC, absolute)
Maximum current, output switches: 2A each (lift, lower, horn, turtle)
Features:
Ergonomic design maximizes vehicle and operator productivity while minimizing operator fatigue.

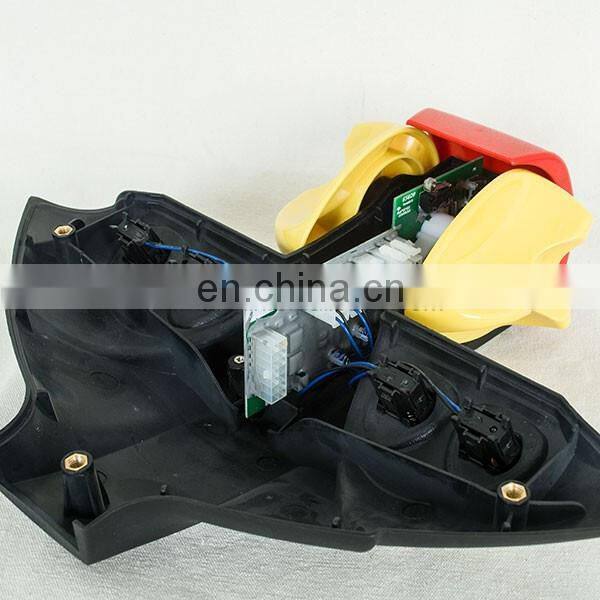

Nylon PA6-GF30 housing and sealed electronics make the tiller head ideal for use in all types of environments - the tiller head can even be used reliably in the rain.
Optional proportional switches provide more precise lift and lower control, thereby improving safety
A ngle electrical connector makes wiring easy to install, reducing vehicle assembly costs and eliminating costly wiring errors.
Highly configurable - CURTIS can supply tiller heads for all of your different applications.
CURTIS tiller heads integrate seamlessly with applicable CURTIS motor controllers, contactors, and instrumentation.
Connector's definition:
Pin 1: B+
Pin 2: Belly button NO
Pin 3: Throttle
Pin 4: Lift switch
Pin 5: SW2
Pin 6: None
Pin 7: Belly button NC
Pin 8: Lift Speed
Pin 9: B-
Pin 10: Forward, 24V active high
Pin 11: Reverse, 24V active high
Pin 12: Lower
Pin 13: SW4
Pin 14: None
