Whosale Forklift Tiller Head With Best Price T600

Specifications:

Model: NOCO-600 (replacement of CURTIS / FREI TEMO 600)
Operating temperature:: –40°C to +85°C
Vibration test: According to IEC 68-2-6
Protection class (DIN 40050) Tiller head IP 40 Operation elements and traction switch minimum IP 54

Features:

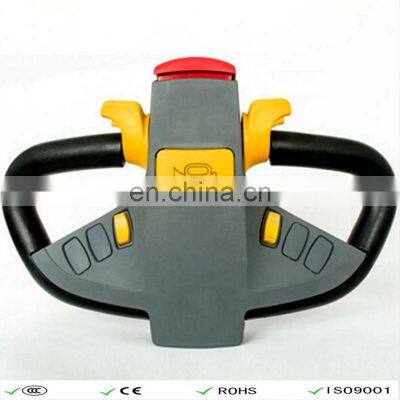

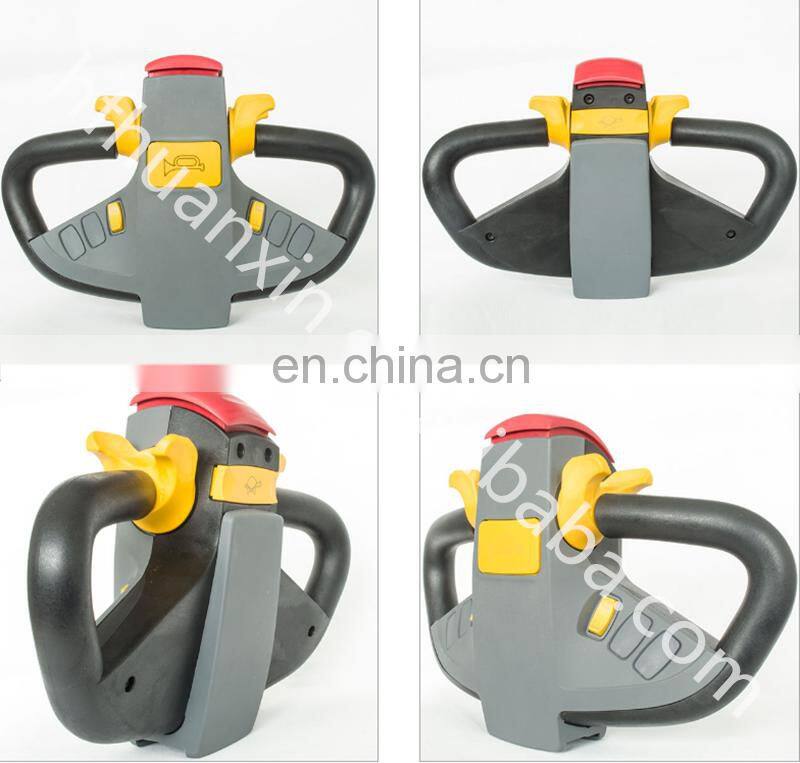

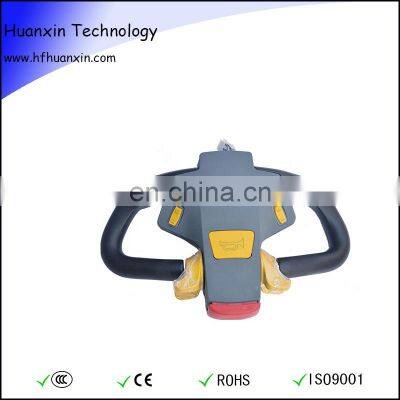

The NOCO-600 series are tiller heads packaged in a rugged housing that offer an attractive and practical method of controlling electric vehicles.

The tiller head has space for two operating switches, covering the basic functions in a tiller head controlled vehicle (for example, raise and lower). A range of switches are available including different buttons, rocker switches, etc. From these options you can customise design to fit your requirements.

Button/rocker switch/switches:
Max. breaking capacity 48VDC / 1A
Min. breaking capacity 24VDC / 10mA
Analogue switches:
Max. breaking capacity 48VDC / 4mA switching current
Wiper current < 0.1mA
Signal horn: Micro-switch NO with Connector 2-pin
Optimum switch current: 5mA / 5V – 1.5A / 24V
Throttle Unit:
Supply
24V – 48V nominal
14V – 69V maximum
Output
0 – 5V
+24V Forward
+24V Reverse

Pictures :

Wide range of applications.
Rigid tube handles.
Ergonomic handling.
Float mounted belly button switch.
Multi-function cover.
Connection for the tiller arm (at customer request).
Buttons and switches freely configurable (in function, quantity and colour).
Manufactured in the WIT-procedure (plastic moulding with water injection and gas).
Six positions for snap fit switches.
Switches and grips are available in different colours as standard. Bespoke colours available on request.
Laser etching of operation elements for resistance to environmental influence.

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer’s destination city air port.
3. By Sea: Delivery from the Shanghai sea port .

  Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.

 Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A: Sample needs 3-5 days.

Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
