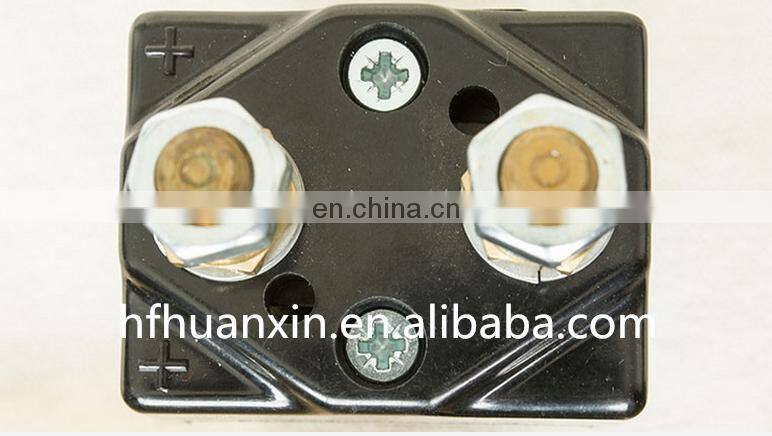

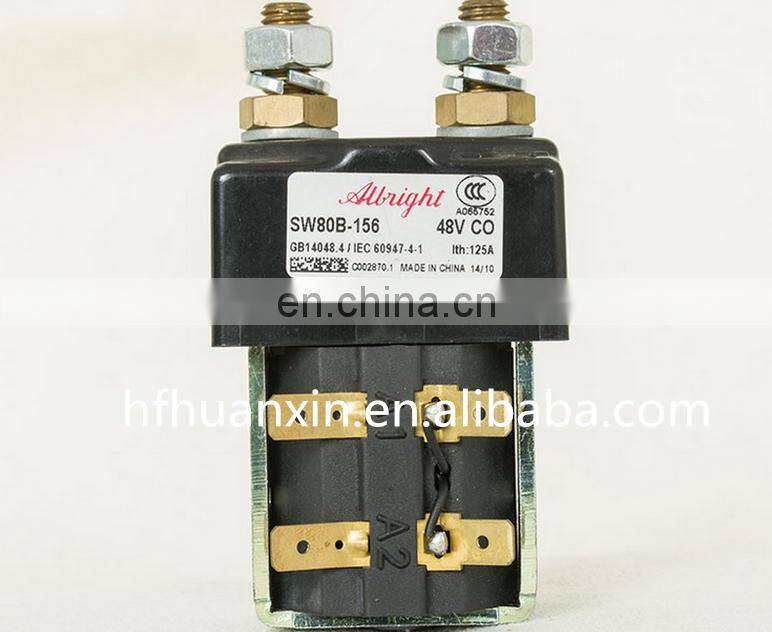

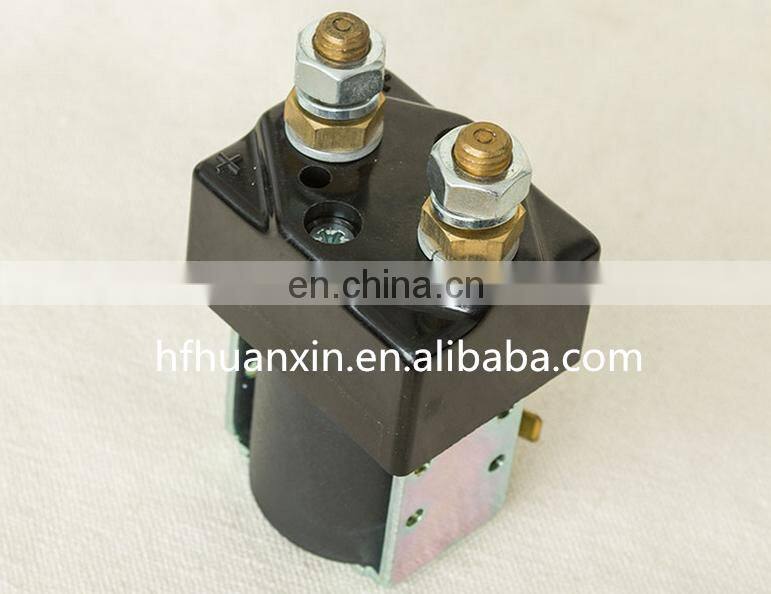

Forklift Parts DC Contactor, 48V DC Contactor , DC Reversing Contactor SW80B-156

 Overview

The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks, and telecom and power distribution applications. Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching Resistive, Capacitive and Inductive loads.

• Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance)
• Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance)

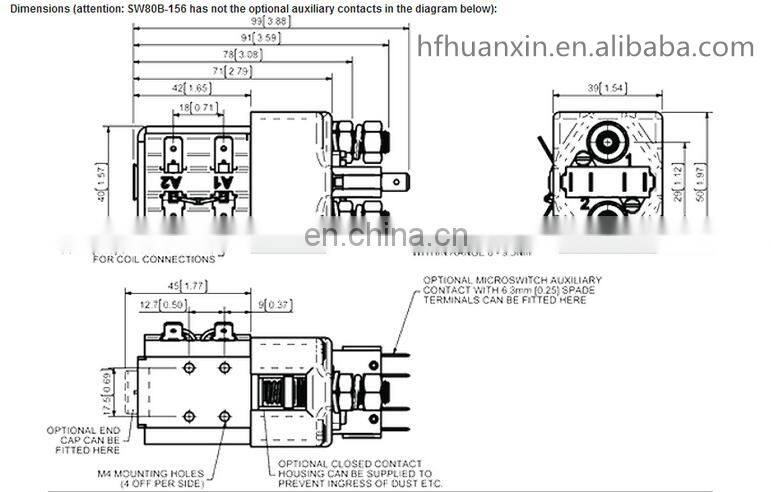

The SW80 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items.

Specifications:

• Model: SW80B-156
• Voltage options (Volts): 12V, 24V, 36V, 48V or 72V; typical model: 48V in golf cart and forklift.
• Ambient temperature: –40 ℃ to +60 ℃

Picture:
