FI14M Manual Flange Facer

Product advantages:

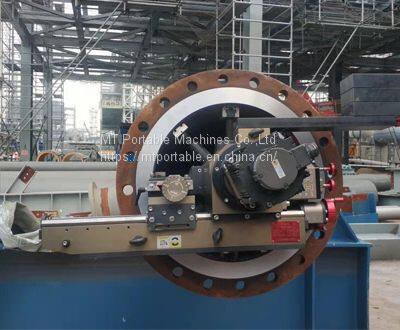

The Manual Flange Facer FI14M is rugged, compact and ideal for quickly reconditioning rusty, scarred or worn flange gasket seats to like-new condition in minutes. This easy to operate flange facing tool is perfect for re-facing raised-face and flat-faced flanges on site or in a fabrication/repair shop. The FI14M Flange Facer has a clamping range from 1.07" to 10.63"（27.2-270mm）and can machine flanges with a reach up to 14"（355.6mm） O.D. The MT proprietary clamping system is simple to configure and designed for fast set up with accurate alignment. Cutting bits are double sided, long-lasting, and specially formed to cut through a wide variety of material including carbon steel, stainless steel, alloyed steel, aluminum and cast iron. Each tool kit comes ready to use in a sturdy carrying case that keeps everything conveniently organized and readily accessible.

Key Features:

● Manually operated,no electrial,hydraulic,or air lines necessary

● Smooth swing operation produces perfectly precise phonographic finish

● Accurately mounts to the flange I.D. in seconds

● Feeds available for both smooth and stock finish in accordance with ASME B-16.5 standards

● Made of high strength precision machined materials

● Sturdy storage/transport case for managing all components

● Strong hardware that makes setup fast

● Kit comes up ready to ues

Specifications:

Facing Diameter:1.07-14 inches(27.2-355.6mm)

 ID Mounting Diameter:1.07-10.6 inches(27.2-270mm)

Feed Speed: 0.125 mm/rev (0.005 inch/rev) & 0.5mm/rev (0.02 inch/rev)

Minimum Swing Diameter:22.9 inches(582mm)19.5 inches(495mm) without knob handle

Power :Manual
